Stonex R2 PLUS Total Station - User Manual 60

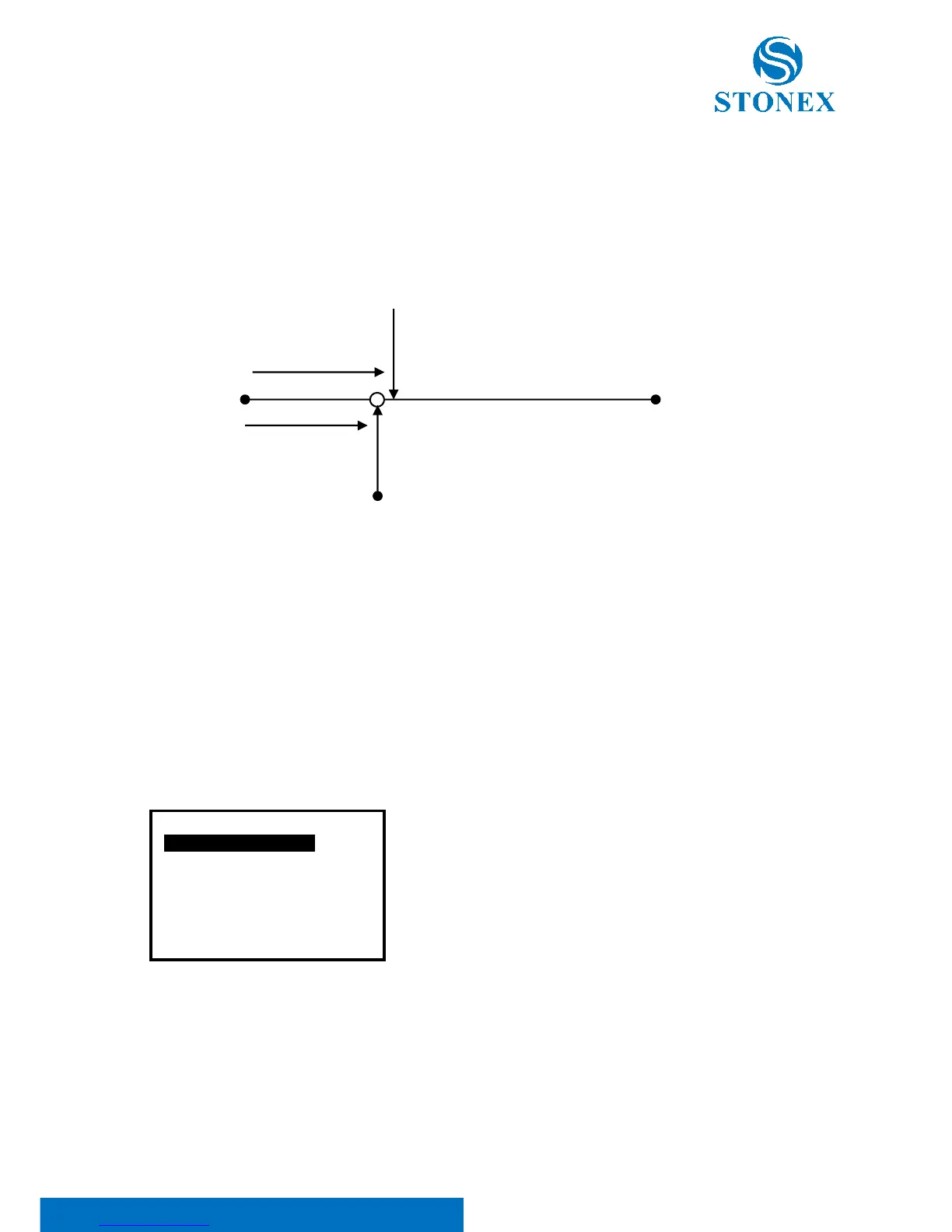

13. Point Projection
Point projection is used for projecting a point to an established baseline. The point to project can
be either measured or input. Displays the distances from the first point and point to project to
the position at which a line extending from point to project intersects the baseline at right angles.
Length: Distance along the baseline from 1
st
point to 2
nd
point (X direction).
Offset: Distance from point to project to the position at which a line extending from point of
project intersects the baseline at right angles (Y direction).
13.1 Define Baseline
【Procedure of defining baseline】
1. Press F2: [MENU] at P2 of basic measurement mode.
2. Turn to P2, select “3. Point projection”.
X direction
Length
1
st
Pt
2
nd
Pt
Offset
Baseline
Point to project
Y direction
Menu P2
1.Point projection
2.Stake out line
3.Traverse
4.Inverse
5.Polarize
6.Repeat Measure
7.Arc staking out
