STONEX R2 PLUS User Manual

Stonex R2 PLUS Total Station - User Manual 64

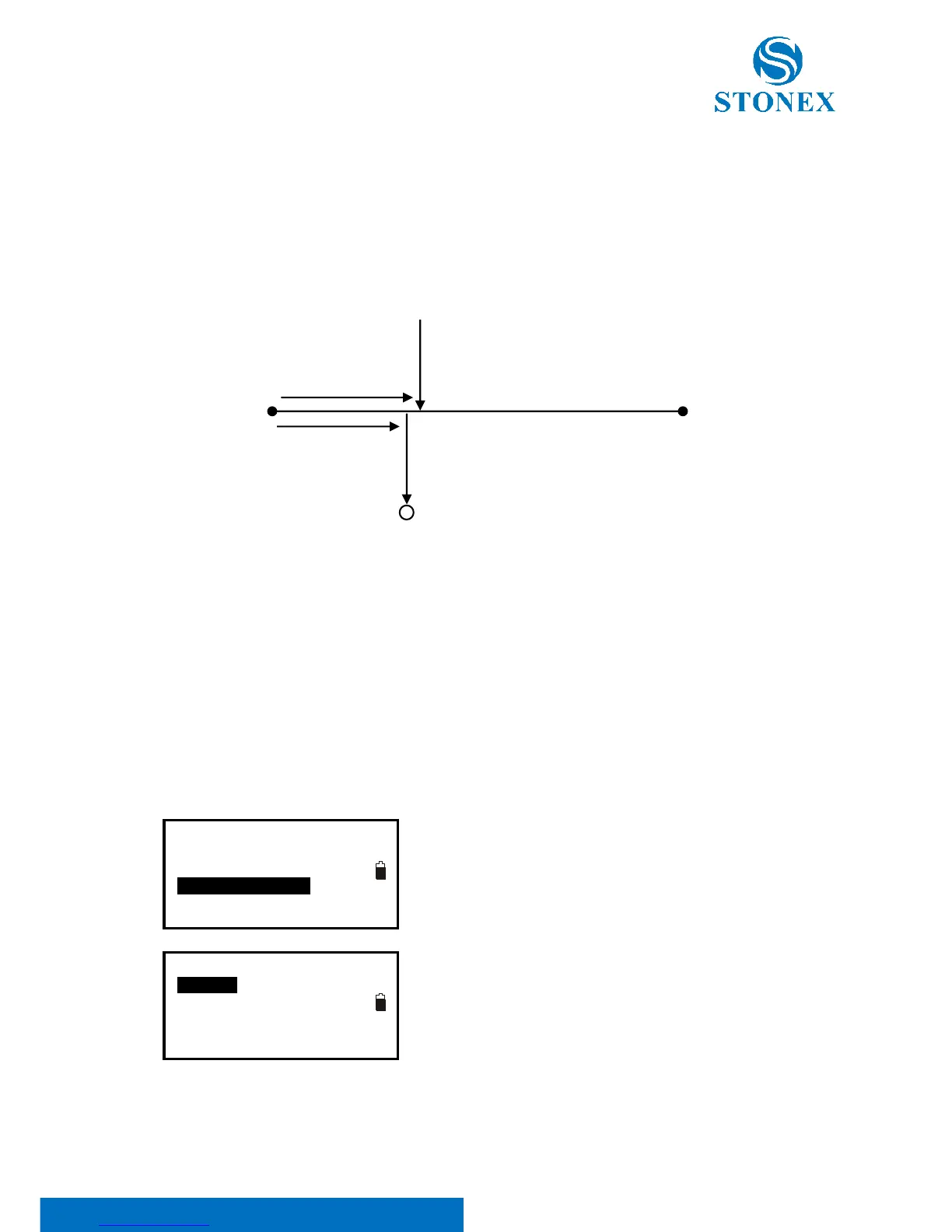

14. 2 Stake Out Line-Point
This measurement can be used to find the required point coordinates by inputting the length
and offset based on baseline.
Length: Distance along the baseline from 1
st
point to the position at which a line extending from
the required point intersects the baseline at right angles (X direction)
Offset: Distance from the required point to the position at which a line extending from the
required point intersects the baseline at right angles (Y direction).
【Procedure of stake out】
1. Select “3. Stake out line” after defining a baseline.
2. Select “1. Point”
Required point
Length
X direction
1
st
Pt
2
nd
Pt
Offset
Baseline
Y direction
Stake out line
1.Occ. Orientation
2.Define baseline
3.Stake out line
Stake out line
1.Point
2.Line
