STONEX R2 PLUS User Manual

Stonex R2 PLUS Total Station - User Manual 65
3. Input values of length and offset, then press F4: [OK],
the coordinate of the required point is calculated and
displayed.
4. Press F2: [REC] to record the value as a known point,
see “§20.1 Input Known Point Coordinate by Keys”.
Press F4: [S-O] to stake out the required point, see Ҥ7.
Stake out Measurement”.
Press key {ESC} to continue.

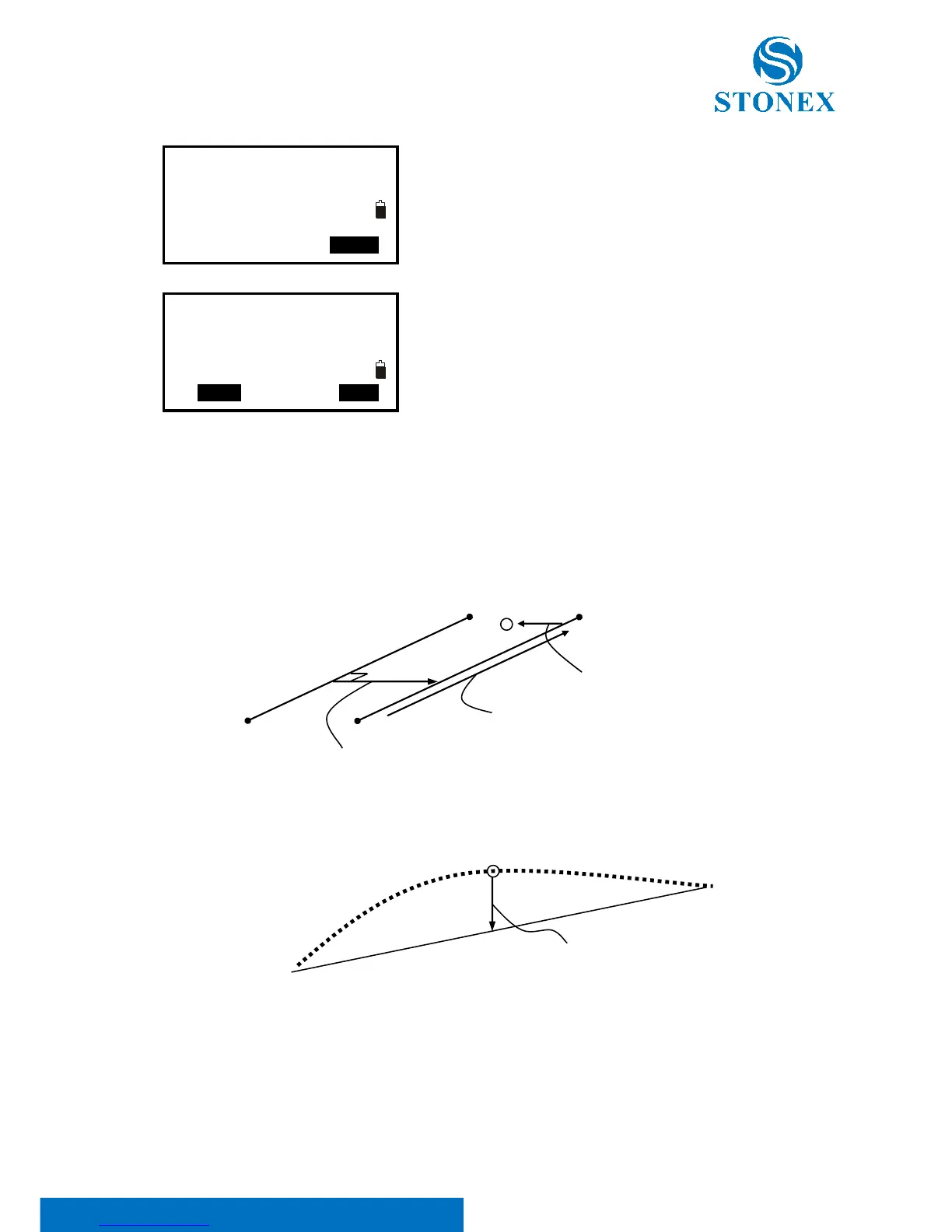

14.3 Stake out Line/Line
Stake out line-line tells how far horizontally the measured point is from the baseline and how far
vertically the measured point is from the connected line. Make sure to define a baseline before
this operation.
Offset (horizontal direction)
Length
Measured point
Offline (-)
1st Pt
Cut
2nd Pt
Measured point
Profile view
0.000
0.000
0.000
Stake out line
Length
Offset
HOKD
Stake out line
Np:
Ep:
Zp:
R E C S - O
