Stonex R2 PLUS Total Station - User Manual 33
Occiped point
Inst. Ht

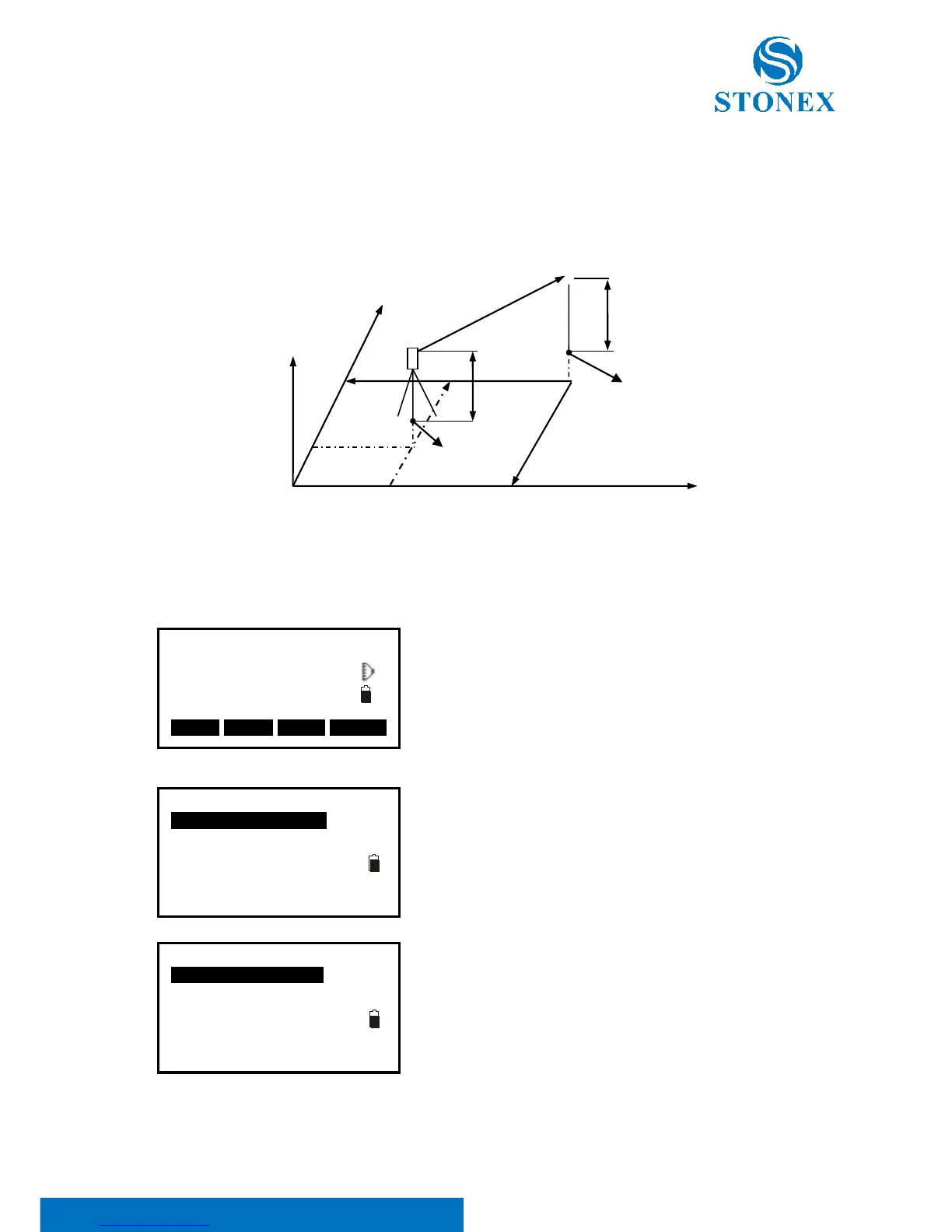

6. Coordinate Measurement
It is possible to find the 3D coordinates of a target by coordinate measurement. Please input the
occupied coordinate, instrument height, target height, backsight coordinate (or azimuth angle)
and azimuth before coordinate measurement.
○
N Target Ht
Z
Target point
E
6.1 Input the Occupied Point Data
【Procedure of inputting occupied point data】
1. Measure the height of target and instrument with a
tape, etc.
2. Press F1: [CORD] at P2 in the measurement mode.
3. Select “1. Occ. orientation”.
4. Select “1. Occ. coordinate” to input the occupied
coordinates, instrument height and target height in
corresponding field.
Meas PC 0.0
ppm 0
SD
VA
HA P2
CORD MENU HOLD H S E T
Coordinate
1. Occ. orientation
2. Measure
3. EDM
4. JOB select
Coord
1. Occ. coordinate
2. Set H angle
