7. Stake out Measurement
Stake out measurement is used to stake out the required point. The difference between the
previously inputted data to the instrument (the stake out data) and the measured value can be
displayed by measuring the horizontal angle, distance or coordinates of the sighted point.
The horizontal angle difference and distance difference are calculated and displayed using the
following formulas:
Horizontal angle difference
dHA= Horizontal angle of stake out data - measured horizontal angle
Distance difference
Distance Displayed item
SD: S-O SD= measured slope distance - slope distance of stake out data
HD: S-O HD= measured horizontal distance -horizontal distance of stake out data
VD: S-O VD= measured height difference - height difference of stake out data
NOTE:
◆ Stake out data can be input in various modes: SD, HD, VD, coordinates and REM measurement.
◆ EDM settings could be set in this mode.
7. 1 Distance Stake out

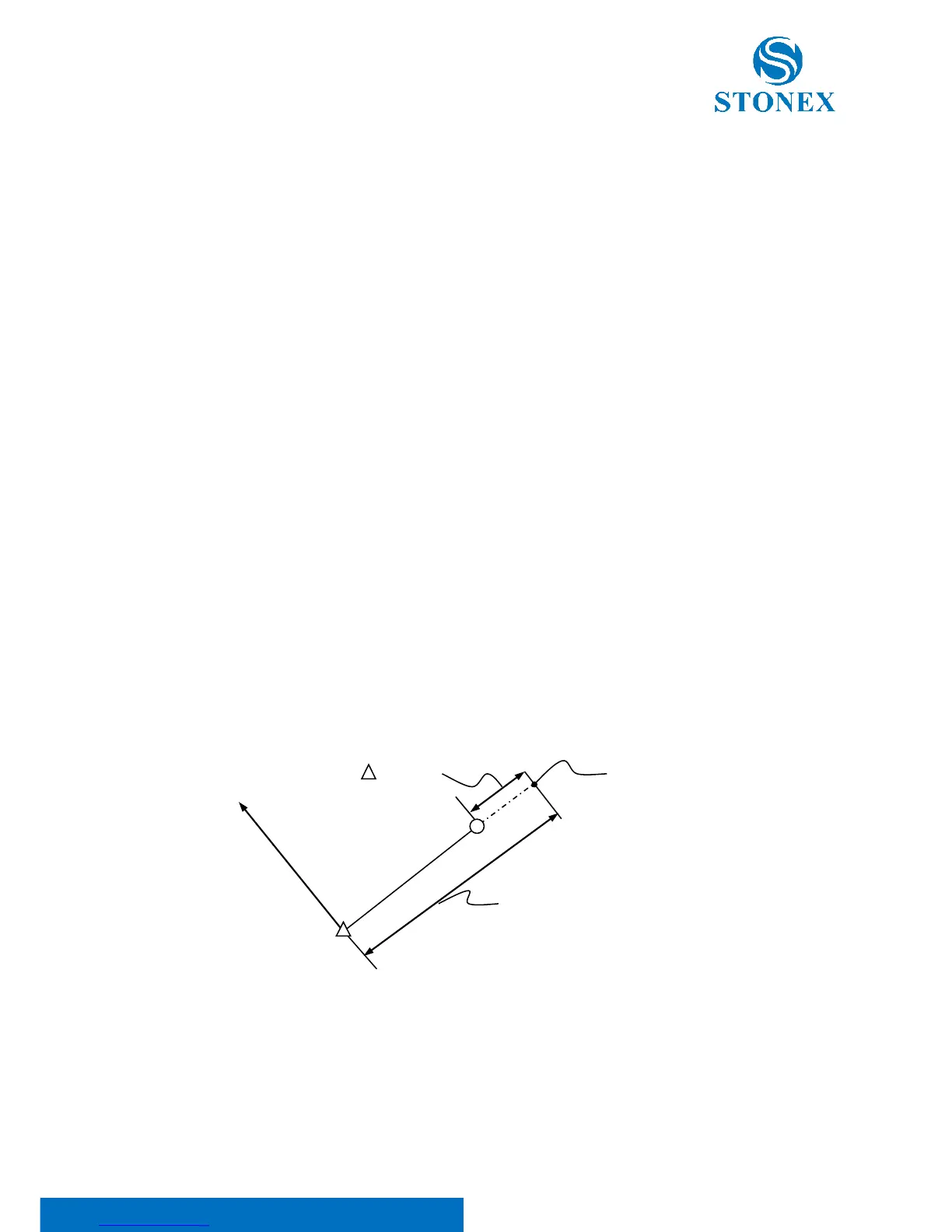

The point to be found based on the horizontal angle from the reference direction and the distance
from the instrument station.
Instrument station
distance
Reference direction
Present target
position
Distance to be stake out
Position to be stake out
