Stonex R2 PLUS Total Station - User Manual 46
9. Offset Measurement
Offset measurement are performed in order to find a point where a target cannot be installed
directly or to find the distance and angle to a point which cannot be sighted.
It is possible to find the distance and angle to a point you wish to measure (target point) by
installing the target at a location (offset point) a little distance from the target point and
measuring the distance and angle from the surveying point to the offset point.
The target point could be found in the following three ways.

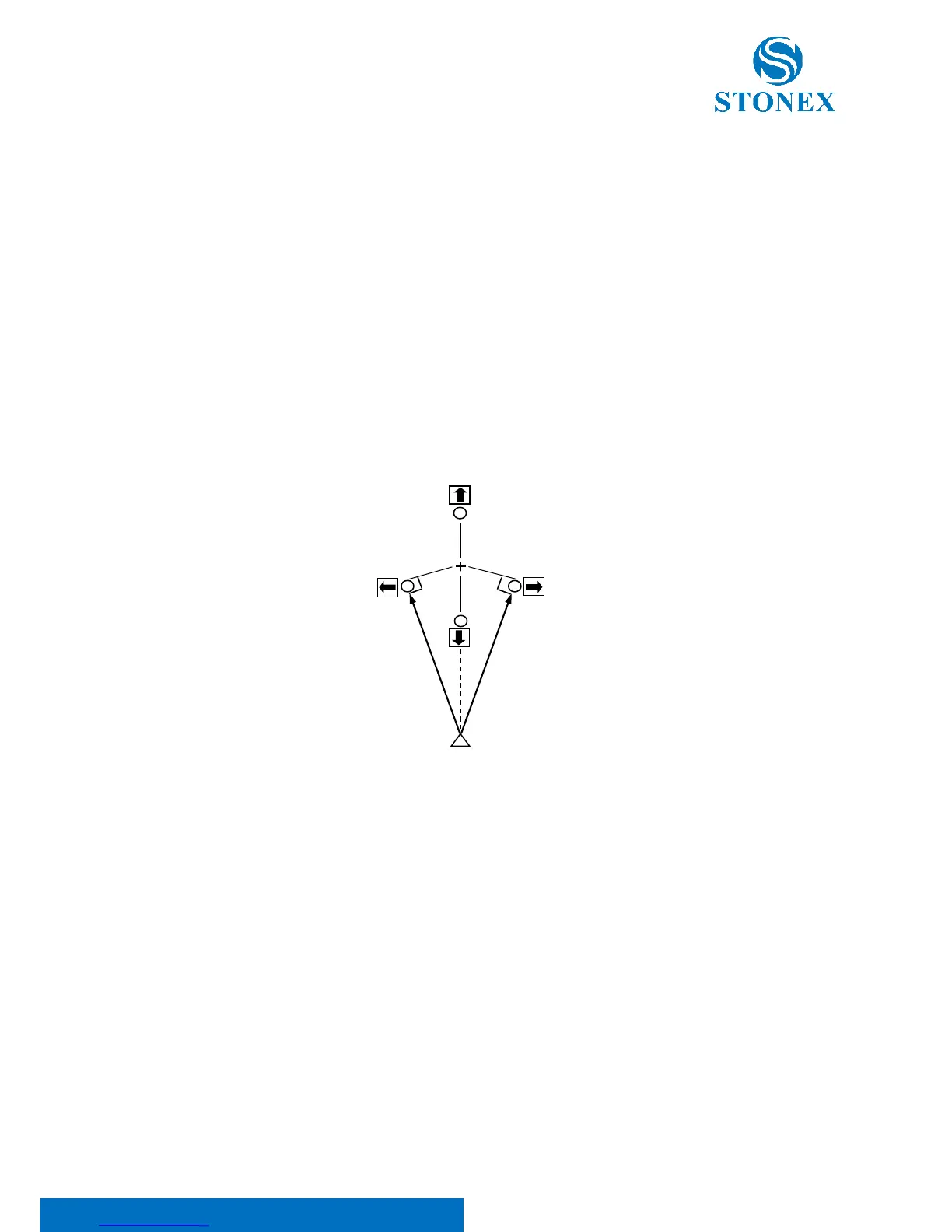

9.1 Single-distance Offset Measurement
Finding a point by entering the horizontal distance from the target point to the offset point.
When the offset point is positioned to the left or right of the target point, make sure the angle
formed by lines connecting the offset point to the target point and to the instrument station is
almost 90°.
When the offset point is positioned in front of or behind the target point, installs the offset point
on a line linking the instrument station with the target point.
