USB INTERFACE 6 - 3

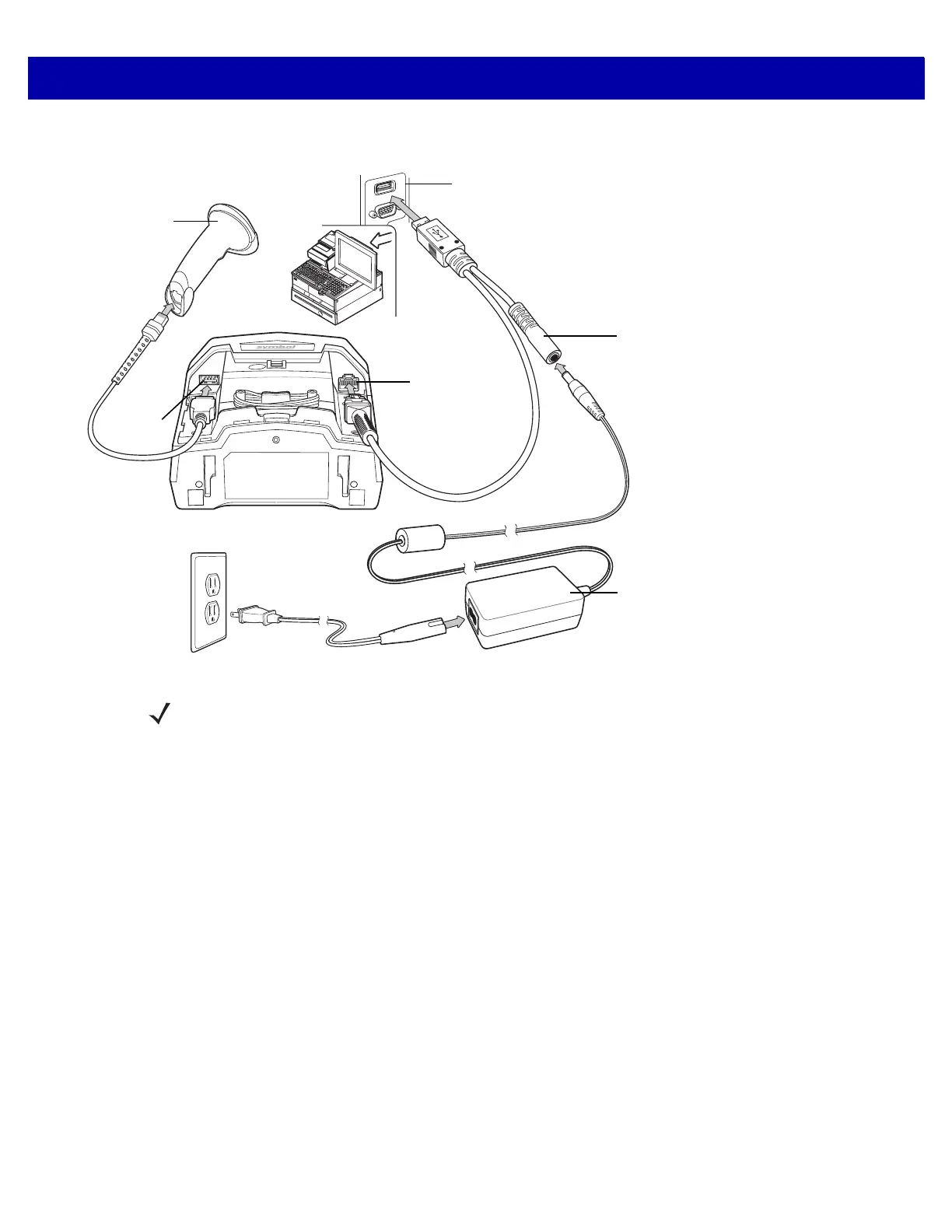

Figure 6-2
USB Connection With Optional Auxiliary Scanner - 12 Volt Power Supplied Externally
To set up the DS7708 with a USB interface:
1. Remove the back cover from the DS7708. See Removing the Back Cover on page 1-5.
2. Plug the host interface cable modular connector into the scanner’s host port.
3. Connect the other end of the interface cable to the host.
4. Select the USB device type. See USB Device Type on page 6-5.
5. If not using a North American keyboard, scan the appropriate country bar code in Appendix B, COUNTRY
CODES.
6. If using an auxiliary scanner:
a. Connect the auxiliary scanner cable to the auxiliary scanner port on the DS7708.
b. Connect a 12 volt external power supply to the host cable as shown in Figure 6-2, or connect a 12 volt
Power Plus host connector.
7. Replace the DS7708 back cover (see Removing and Replacing the Back Cover on page 1-5).
Host Port
Host
Host Port
Power Port
IMPORTANT: A 12 volt
power connection is
required when using an
auxiliary scanner. (See
available cables under
Accessories on page vi.)
Auxiliary
Scanner
Auxiliary
Scanner
Port
12 Volt Power Supply
NOTE Interface cables vary depending on configuration. The connectors may be different from the examples
illustrated, but the steps to connect the scanner are the same. See USB Cables on page vi for cable
information and part numbers.
