Tektronix Keithley 4200A-SCS User Manual

Section 6: Using a Model 82 C-V System Model 4200A-SCS Prober and External Instrument Control
6-38 4200A-913-01 Rev. A December 2020

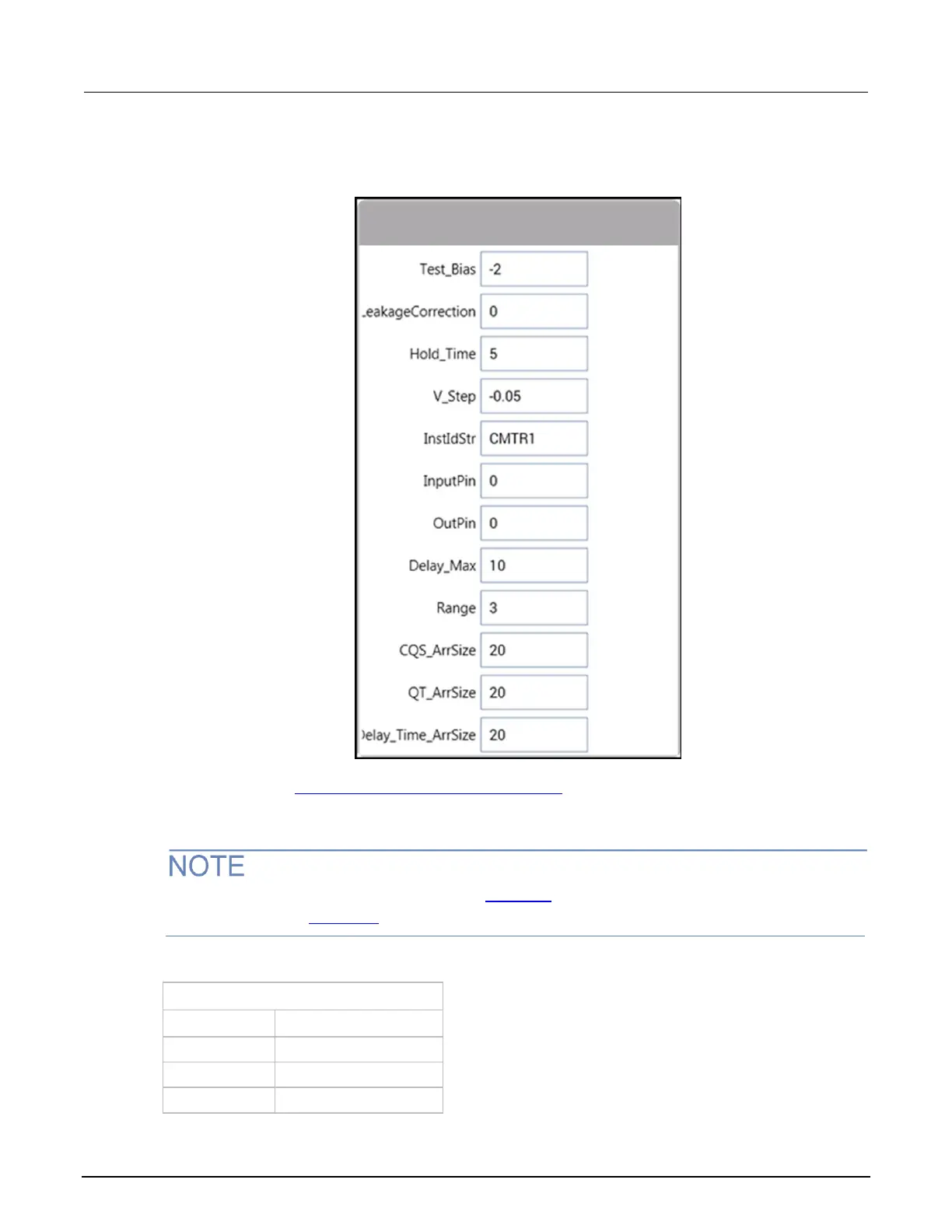

The following figure shows the default parameters for the QTsweep82 user module.
Figure 107: QTsweep82 user module
The Q/T sweep in Equilibrium test (QTsweep) description (on page 6-14) acquires 20 quasistatic
capacitance readings. After the graph for quasistatic capacitance and leakage current versus time is
plotted, the optimum delay time for equilibrium can be determined.
For details on quasistatic measurements, see QTsweep (on page 6-13). For details on C-t
measurements, see C-t sweep (on page 6-18).
The Range values are shown in the following table.
Range values
Value
595 range
1
200 pF
2
2 nF
3
20 nF
