Section 10: Using a Micromanipulator 8860 Prober Model 4200A-SCS Prober and External Instrument Control
10-10 4200A-913-01 Rev. A December 2020

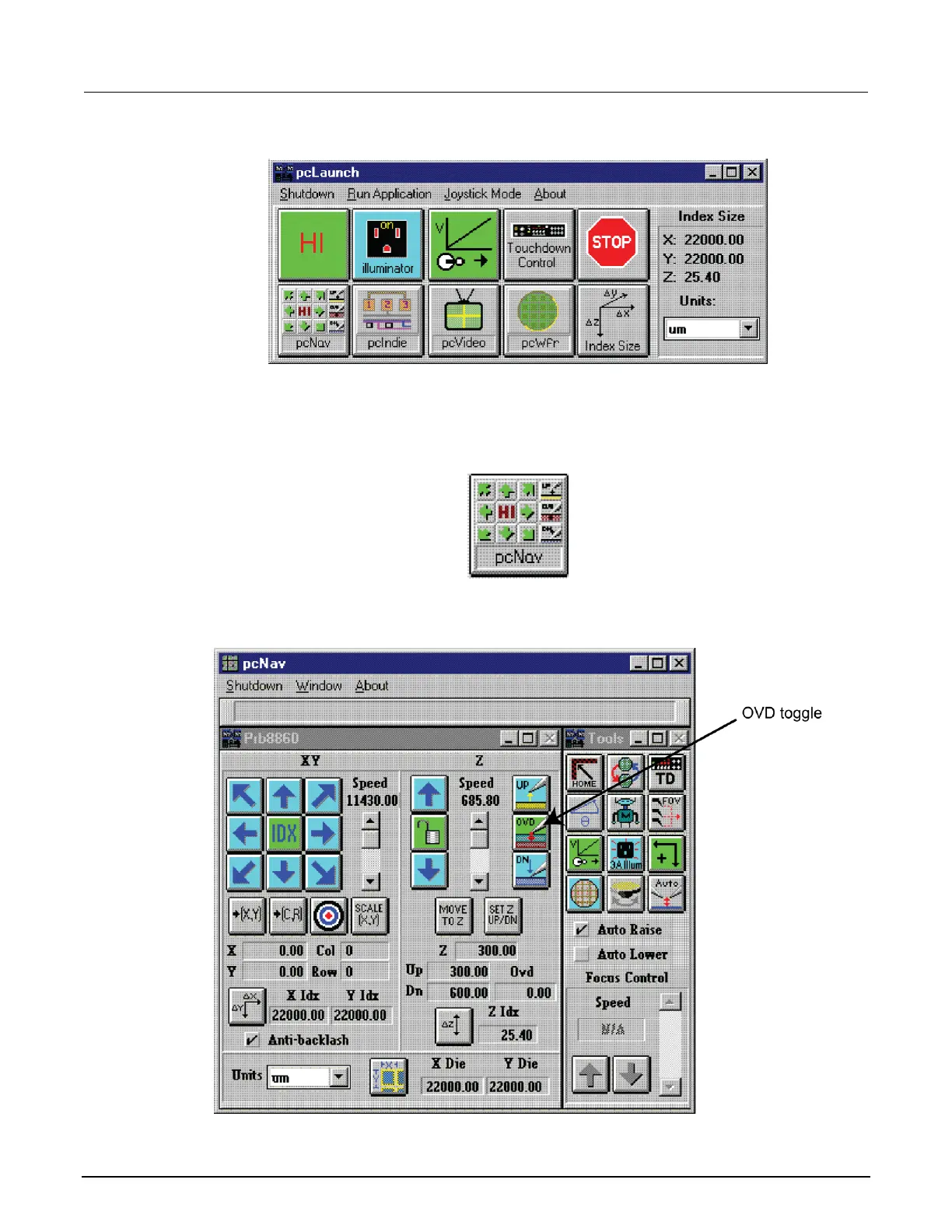

Figure 189: pcLaunch window
2. To home the chuck, from the pcLaunch window, click the pcNav button. The pcNav window
opens. See the following two figures.
Figure 190: pcNav button
Figure 191: pcNav window
