Model 4200A-SCS Prober and External Instrument Control Section 13: Using a Signatone CM500 Prober
4200A-913-01 Rev. A December 2020 13-9

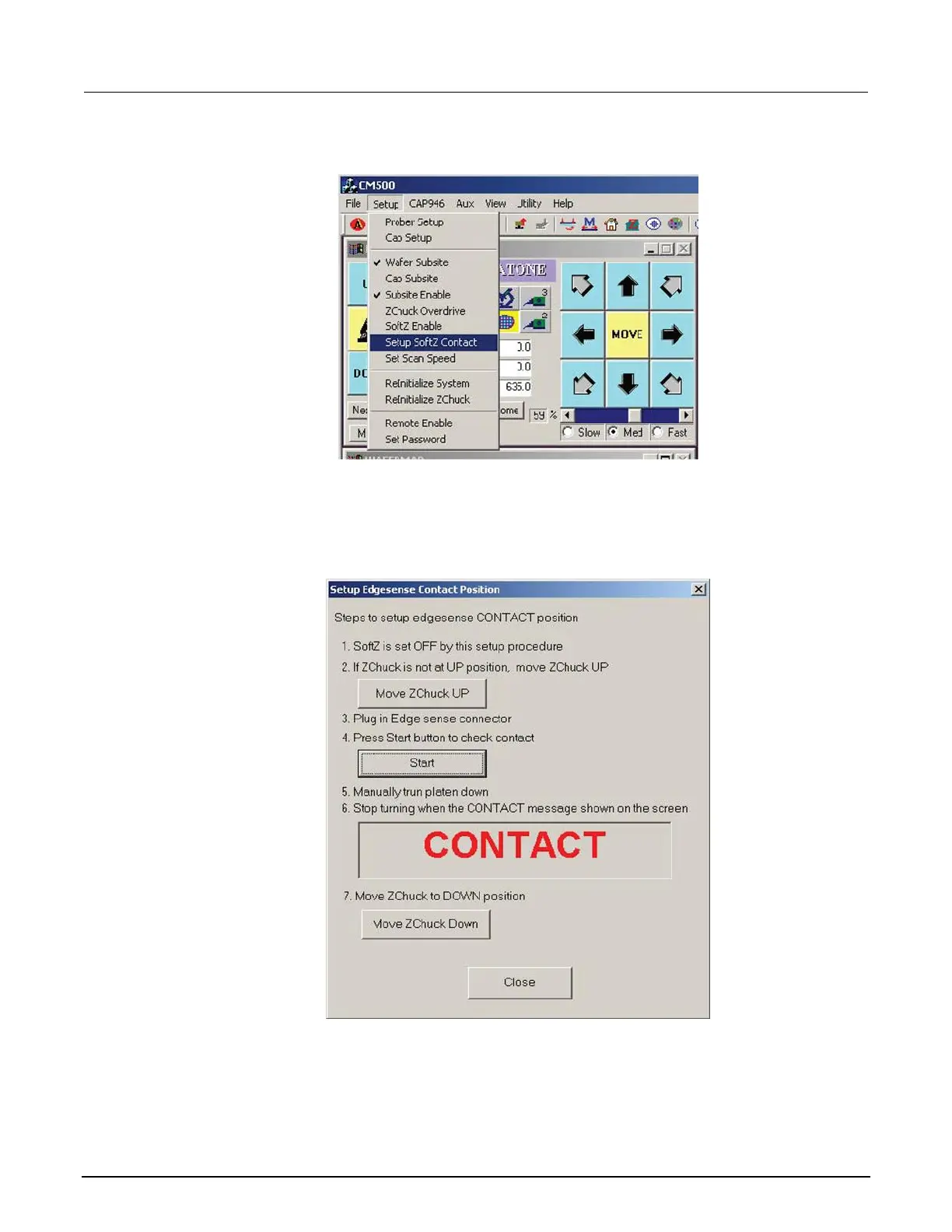

Figure 305: CM500 Prober Setup softz contact command
2. Follow the instructions on the window to adjust the height of platen and to determine the contact
position of the Z Chuck.
Figure 306: CM500 Prober Setup Edgesense Contact Position window
