Tektronix Keithley 4200A-SCS User Manual

Section 3: Configure and use a Series 700 Switching System Model 4200A-SCS Prober and External Instrument Control
3-6 4200A-913-01 Rev. A December 2020
To add a switching system to the 4200A-SCS configuration:
1. From the desktop, open the KCon application.
2. In the bottom left of the KCon window, select Add External Instrument.
3. Select your switching system. The Series 700 Switching Systems are highlighted in the following
figure.

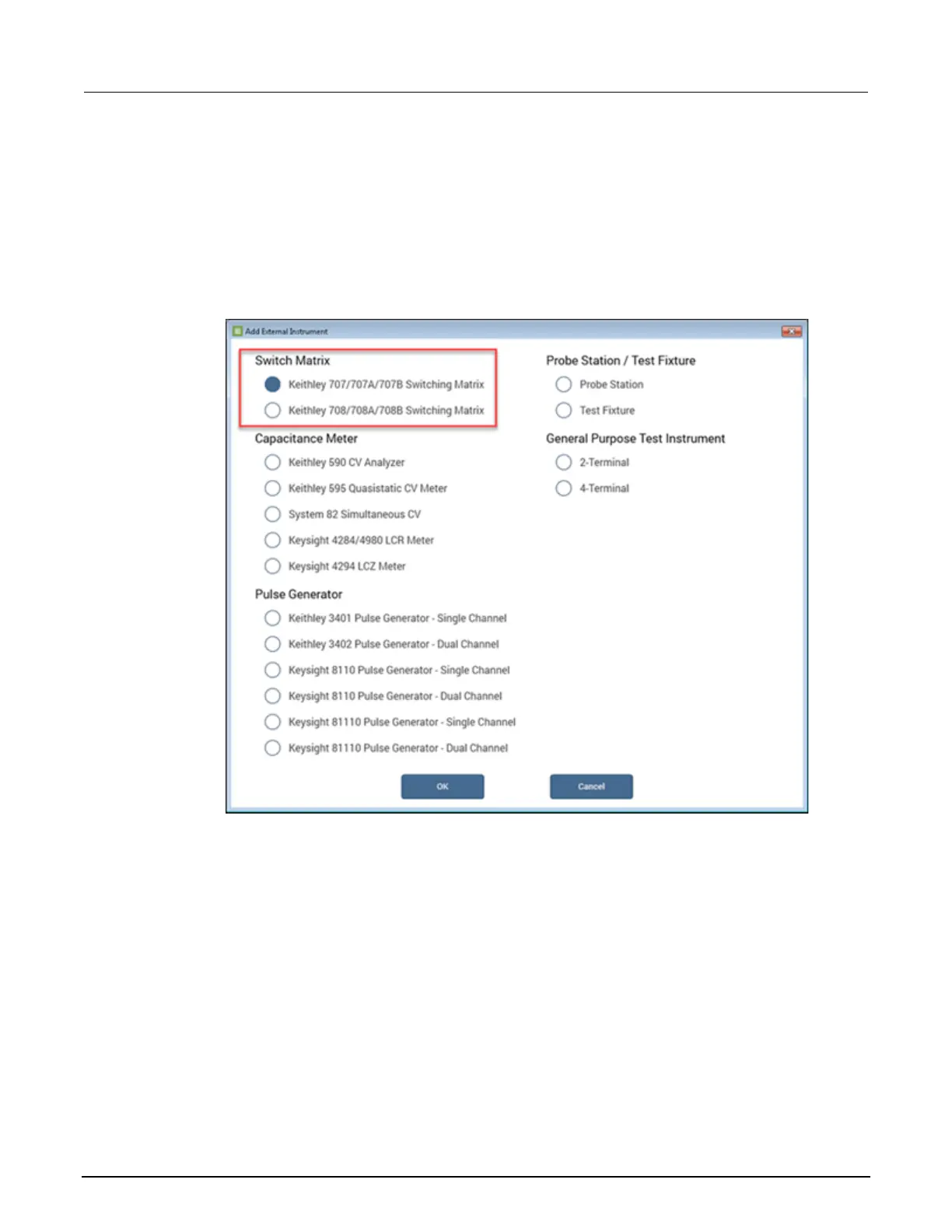

Figure 33: Add External Instrument box, Series 700 Switching Systems highlighted
4. Select OK.
5. Select Add External Instrument again.
6. Select Test Fixture.
