Operating Instructions Model 100E Instruction Manual
100 045150102 Rev XB1
As soon as the Ethernet option is enabled in the COMM menu (see flowchart in Section
6.9.6 above), a new sub-menu INET will appear. This sub-menu is used to set
configuration parameters that enable the Ethernet card to communicate with your local
area network. To perform this configuration, you will need to get the following
information from your network administrator.
• Gateway IP address, typically a string of numbers with four packets of 1 to 3
numbers each: nnn.nnn.nnn.nnn, for example: 192.168.76.1.
• Instrument IP address, typically a string of numbers very similar to the Gateway IP
address, for example: 192.168.76.55. Note that this instrument IP address must
be a static address and cannot be a dynamic IP address.
• Subnet Mask, typically a string of numbers such as 255.255.252.0
The following procedures assumes that the Ethernet card is already installed in your
analyzer. If you are retro-fitting the analyzer with an Ethernet Option 63, please refer to
the installation instructions of that option as the procedures are slightly different and
need some other steps before configuration can commence.

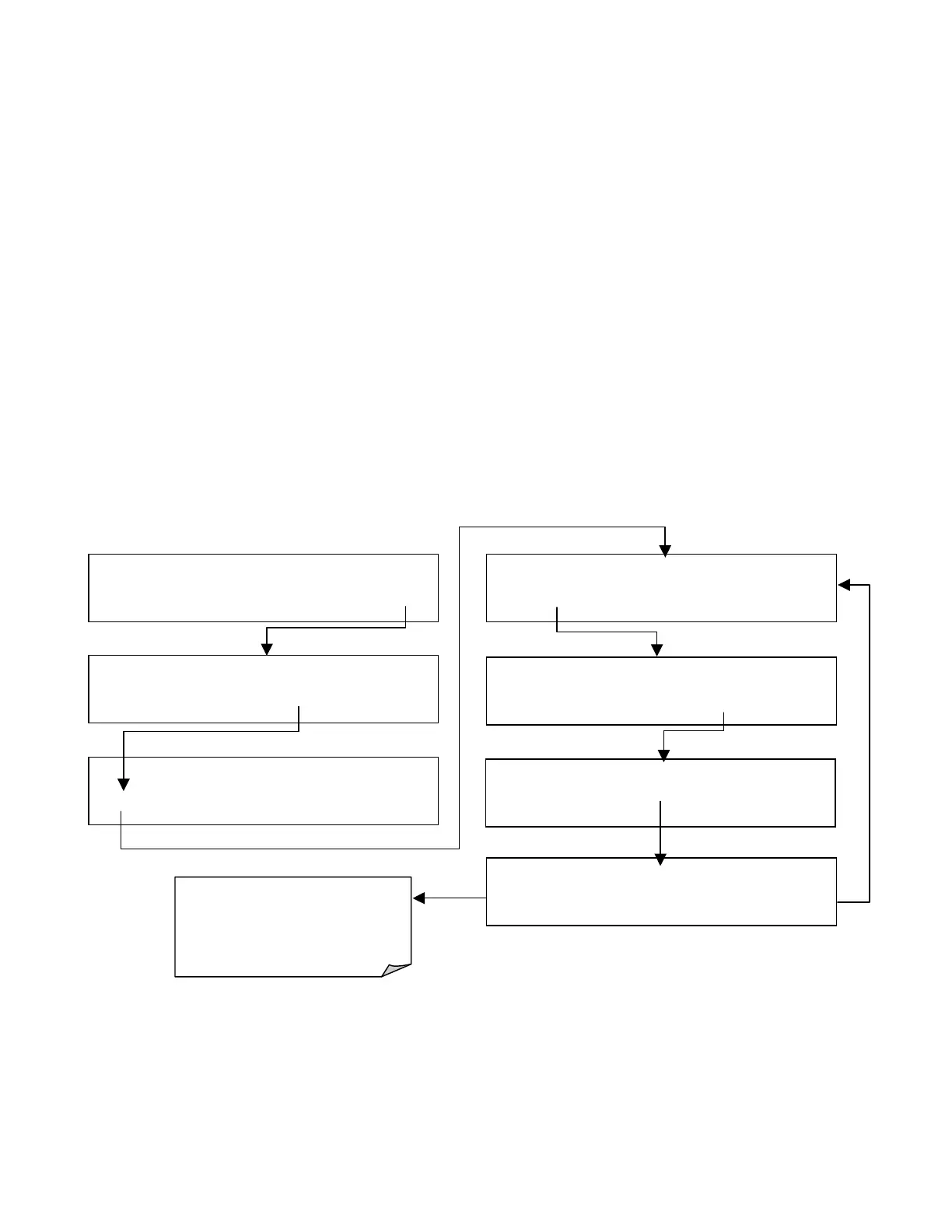

The first step in configuring the Ethernet option is to set the card from pass-through
mode to configuration mode, so that TCP/IP parameters can be edited.
SETUP X.X
PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK
MORE
EXIT
SETUP X.X
SECONDARY SETUP MENU
COMM
VARS DIAG EXIT
SAMPLE* RANGE = 500.000 PPB SO2 =X.XXX
< TST TST > CAL
SETUP
ETHERNET STOPPED
SETUP X.X
COMMUNICATIONS MENU
ID
INET
COM1
COM2 EXIT
INTERNET CONFIGURATION
GTWY IP SNET PORT STRT
STOP
EXIT
STOPPING ETHERNET
If the message ETHERNET NOT
STOPPED appears here, the
Ethernet card either was already
in configuration mode or might
not be responding.
To Next Page
