Model 100E Instruction Manual Getting Started
045150102 Rev XB1 37
The analyzer should automatically switch to SAMPLE mode after completing the boot-up
sequence and start monitoring SO
2
gas.
3.2.2. Warm-Up
The M100E requires about 60 minutes warm-up time before reliable SO
2
measurements
can be taken. During that time, various portions of the instrument’s front panel will
behave as follows. See Figure 3-9 for locations.
Table 3-6: Front Panel Display During System Warm-Up
Name Color Behavior Significance
Concentration
Field
N/A Displays current,
compensated SO
2
Concentration
N/A
Mode Field N/A Displays blinking
“SAMPLE”
Instrument is in sample mode but is still in the
process of warming up.
STATUS LED’s
Sample Green On
Unit is operating in sample mode, front panel
display is being updated.
Cal Yellow Off The instrument’s calibration is not enabled.
Fault Red Blinking The analyzer is warming up and hence out of
specification for a fault-free reading. various warning
messages will appear.
POWER
FAULT
CAL
SAMPLE
UV FLUORESCENCE SO2 ANALYZER - MODEL 100E
ADVANCED POLLUTION INSTRUMENTATION, INC.
SAMPLE A RANGE = 500.000 PPB
SO2 = 40.0
<TST TST> CAL
SETUP
MODE FIELD
KEY DEFINITIONS
MESSAGE FIELD
CONCENTRATION FIELD STATUS LED’s
KEYBOARD
ON / OFF SWITCH
FASTENE
R
FASTENER

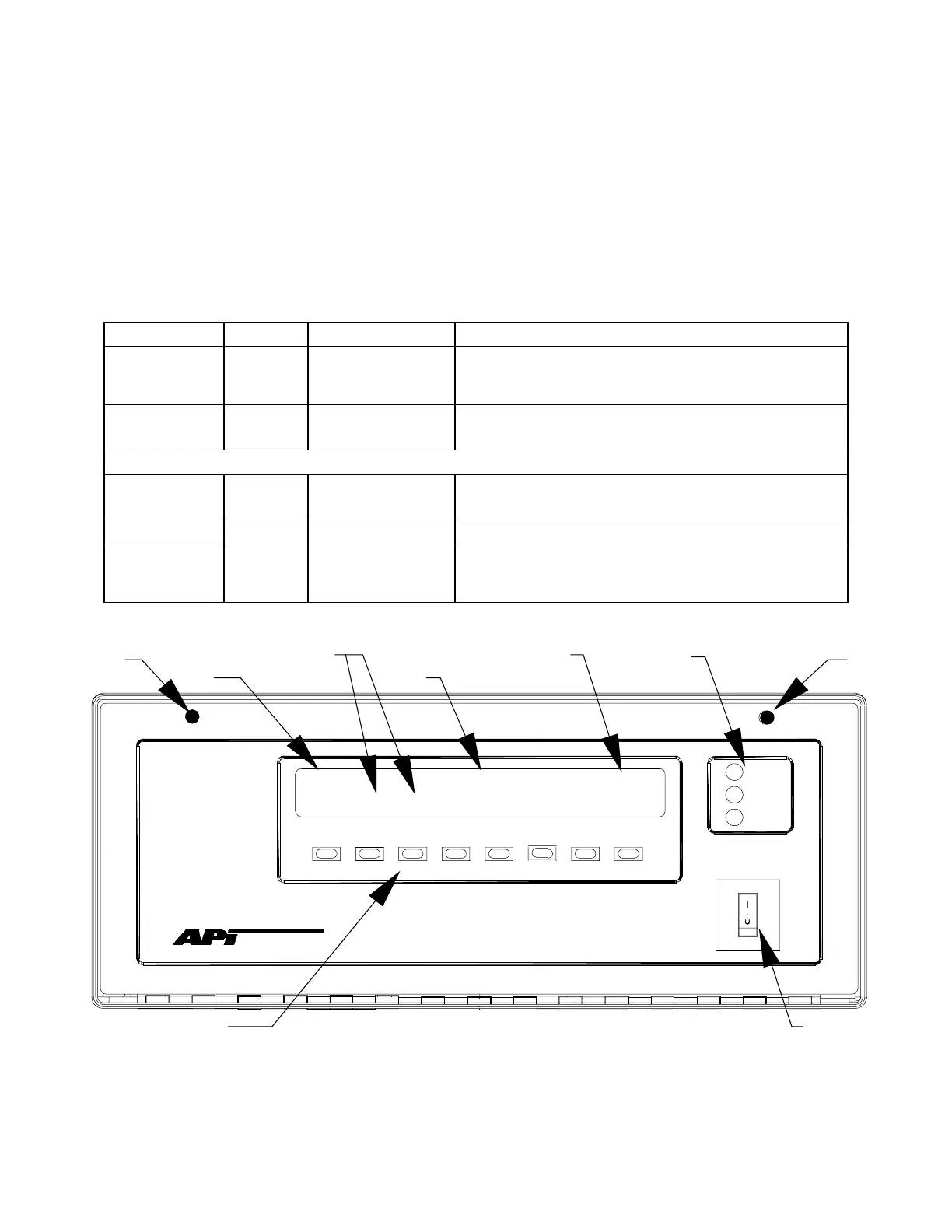

Figure 3-9: Front Panel Layout
