Teledyne 100E - References; Special Calibration Requirements for Dual Range or Auto Range

EPA Protocol Calibration Model 100E Instruction Manual
152 045150102 Rev XB1
Follow the procedures described in section 7.2 for calibrating the zero points.

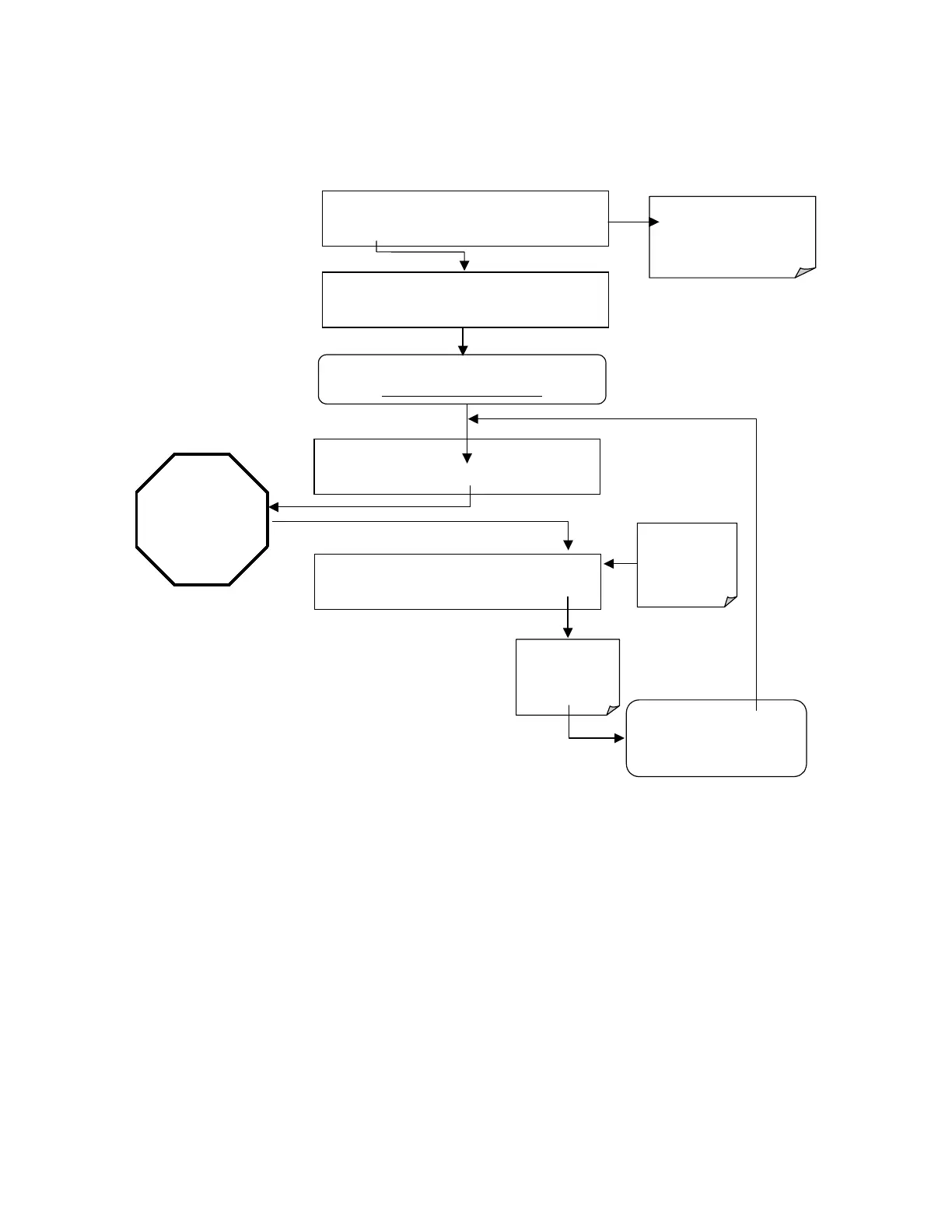

For each mid point:
SPAN CAL M
RANGE = 500.0 PPB
SO
2
X.XXX
< TST TST > ZERO SPAN CONC
EXIT
Wait until
STABIL
falls
below 0.5 ppb.
This may take
several minutes.
SAMPLE
STABIL=X.XXX PPB
SO2 =X.XXX
< TST TST > CAL CALZ
CALS
SETUP
Record the
SO
2
\reading as
displayed on the
instrument’s front
panel
Press
EXIT
to
Return to the
Main
SAMPLE
Display
ACTION:
Allow Calibration Gas diluted to
proper concentration for
Midpoint N+1 to enter the sample
port
ACTION:
Allow calibration gas diluted to proper concentration for
Midpoint N to enter the sample port
SAMPLE* RANGE = 500.000 PPB SO2 =X.XXX
< TST
TST
> CAL SETUP
SAMPLE
STABIL=X.XXX PPB
SO2 =X.XXX
< TST TST > CAL SETUP
Set the Display to show the
STABIL
test function.
This function calculates the
stability of the NO/NO
x
measurement
8.6. Special Calibration Requirements for Dual Range or
Auto Range
If Dual Range or Auto Range is selected, then it should be calibrated for both Range1 and
Range2 separately.
For zero and span point calibration, follow the procedure described in Section 7.2. Repeat
the procedure for both the HIGH and LOW Ranges
8.7. References
1. Environmental Protection Agency, Title 40, Code of Federal Regulations, Part 50,
Appendix A, Section 10.3.
