Teledyne 100E - Figure A-4: Primary Setup Menu (Idas)

APPENDIX A-1: M100E Software Menu Trees, Revision B.3 Model 100E Instruction Manual
045150110 Rev B.3 227
NAME
EVENT
PARAMETERS
REPORT PERIOD
NUMBER OF RECORDS
RS-232 REPORT
CHANNEL ENABLE
CAL. HOLD
CFG
ACAL
1
1
Only appears if Z/S valve or IZS option is installed.
SAMPLE
CLK PASS MORE RNGE DAS
VIEW EDIT
Password required
CONC
PNUMTC
CALDAT
VIEW
CONC
PNUMTC
CALDAT
DEL EDIT PRNT INS
SET> EDIT PRNT <SET
Cycles through
available trigger
events
(see Section 6.12.3).
Cycles through
lists of
parameters
chosen for this
iDAS channel
Selects data point to view.
PREV NEXT NX10 PV10 <PRM PRM>
DEL EDIT PRNT INS
Cycles through
already active
parameters
(see Section 6.12.4).
SET> EDIT PRNT <SET
SAMPLE MODE PRECISION
Cycles through available/active parameters
(see Section 6.12.4).
AVG MIN MAX INST
OFF
ON
Creates/changes name
(see Section 6.12.2).
Selects max
no. of records
for this channel
PREV NEXT
PREV NEXT
PREV NEXT
PREV NEXT
PREV NEXT
PARAMETER
YES NO
YES NO
YES NO
YES NO
Sets the
amount of time
between each
report.

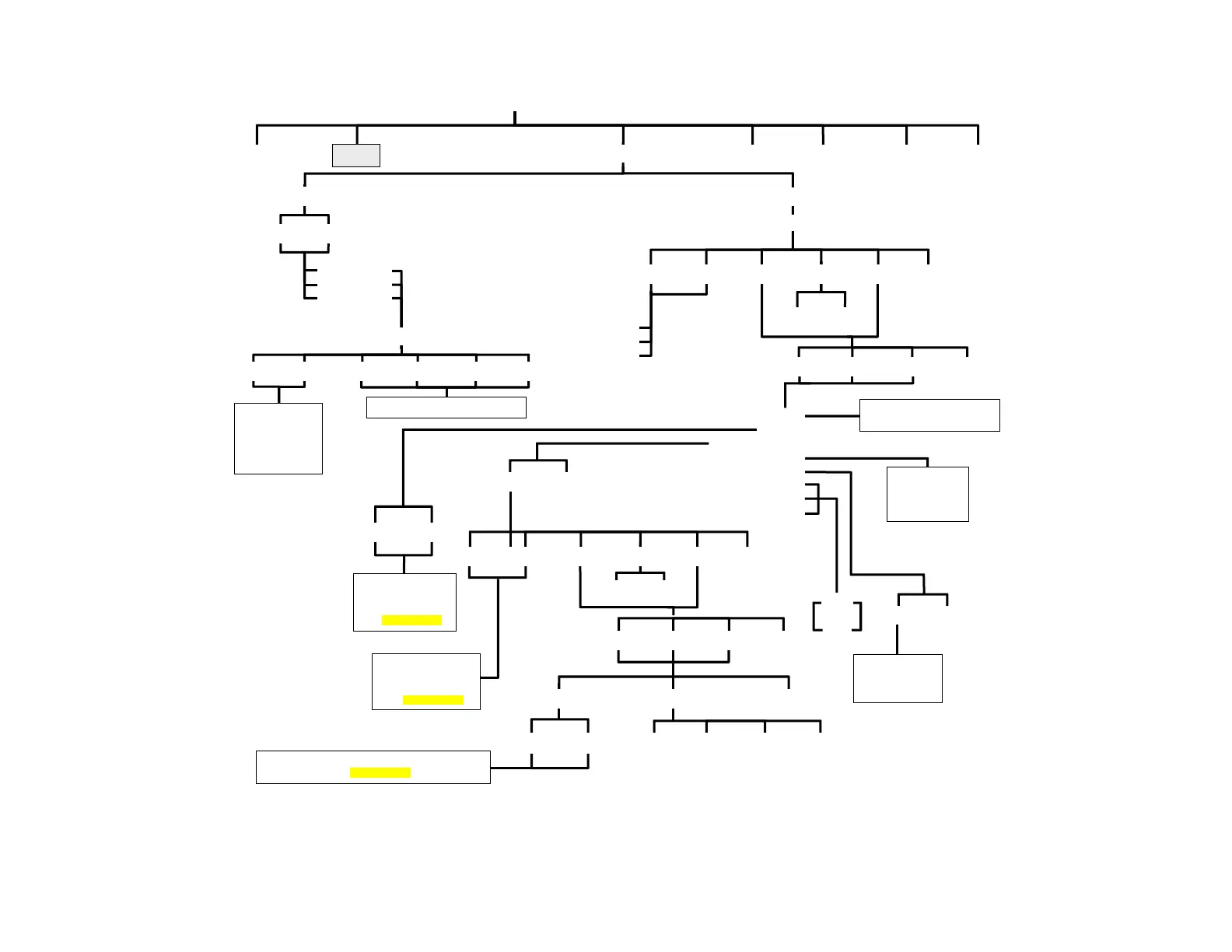

Figure A-4: Primary Setup Menu
(iDAS)
