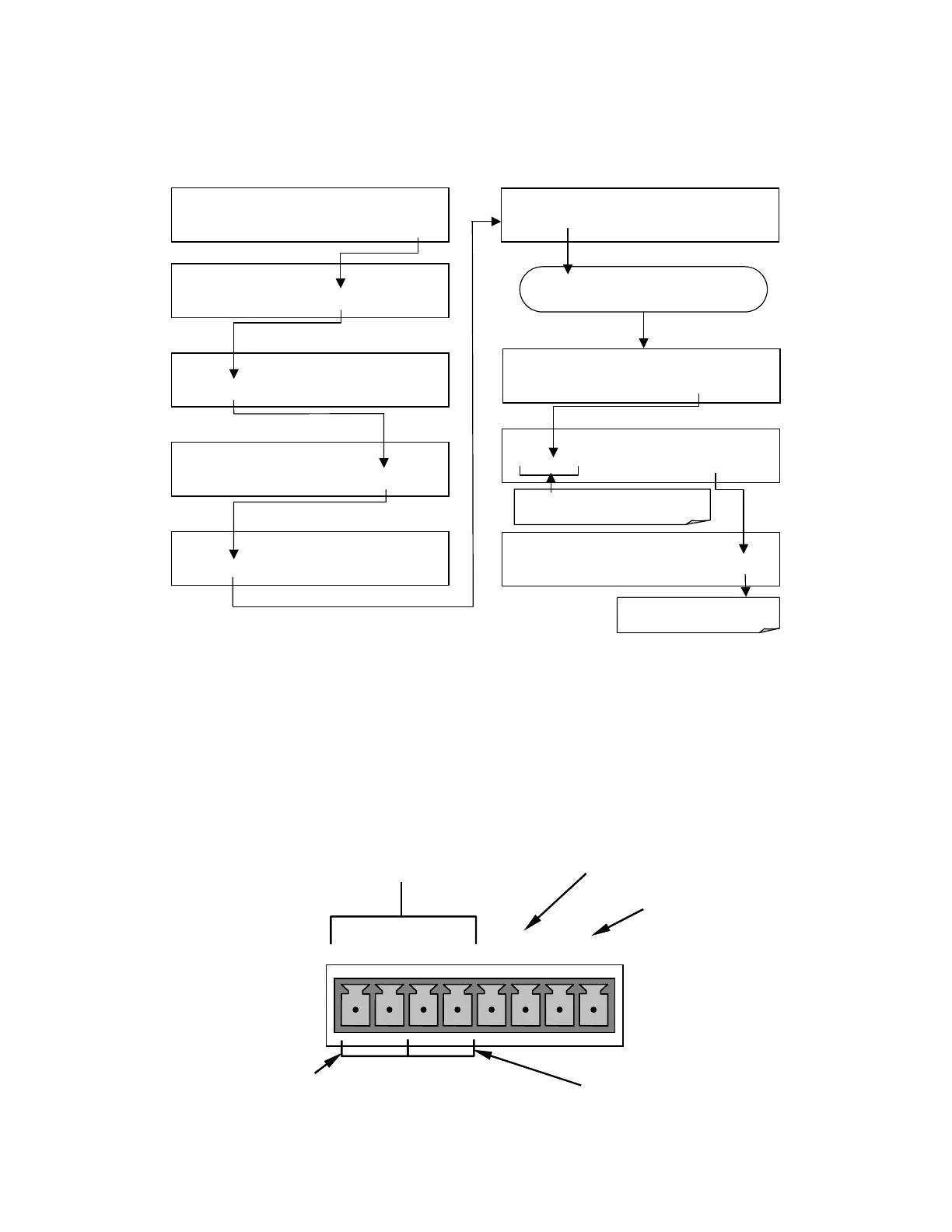

In order to compensate for CPU clocks which run fast or slow, there is a variable to speed
up or slow down the clock by a fixed amount every day. To change this variable, press:
SAMPLE RANGE = 500.000 PPB SO2 =X.XXX
< TST TST > CAL
SETUP
SETUP X.X PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK
MORE
EXIT
SETUP X.X
SECONDARY SETUP MENU
COMM
VARS
DIAG EXIT
3x
EXIT
returns
to the main
SAMPLE
display
SETUP X.X 0 ) DAS_HOLD_OFF=15.0 Minutes
NEXT
JUMP EDIT PRNT EXIT
Enter sign and number of seconds per
day the clock gains (-) or loses (+).
SETUPX.X 1 )TPC_ENABLE= ON
PREV
NEXT
JUMP EDIT PRNT EXIT
SETUP X.X
8) CLOCK_ADJ=0 Sec/Day
PREV JUMP
EDIT
PRNT EXIT
SETUP X.X CLOCK_ADJ:
0 Sec/Day
+ 0 0 ENTR EXIT
SETUP X.X 8) CLOCK_ADJ=0 Sec/Day
PREV NEXT JUMP EDIT PRNT EXIT
SETUP X.X ENTER VARS PASS: 818
8 1 8 ENTR EXIT
Continue to press
NEXT
until …
6.5. Setup – Analog Output Reporting Range
Configuration (RNGE)
The analyzer has three active analog output signals, accessible through a connector on
the rear panel.
ANALOG OUT
A1 A2 A3 A4
+ - + - + - + -
SO
2
concentration
out
p
uts
HIGH range when
DUAL mode is selected
Not Used
Test Channel
LOW range when
DUAL mode is selected
Figure 6-1: Analog Output Connector Key
