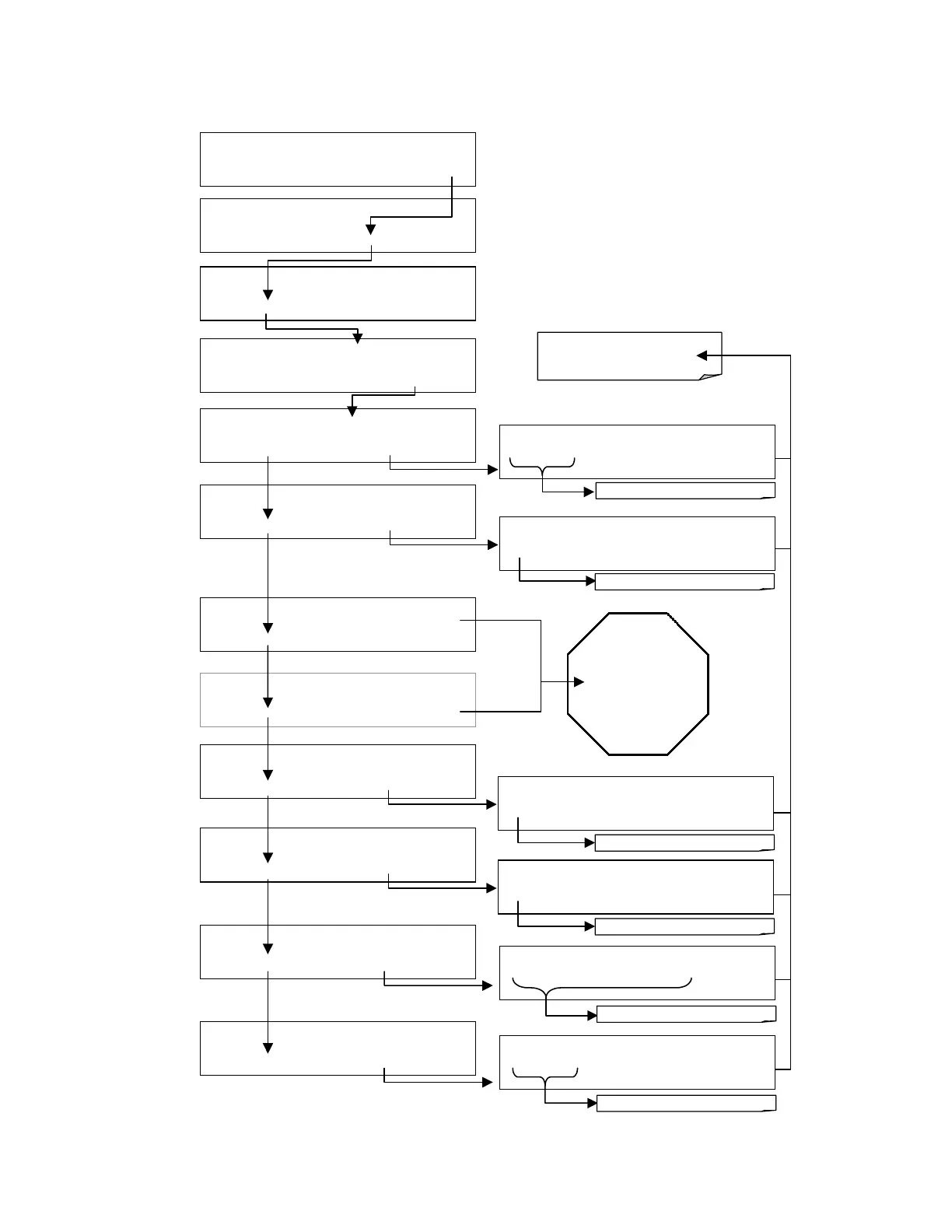

To access and navigate the VARS menu, use the following key sequence.
SAMPLE* RANGE = 500.000 PPB SO2 =X.XXX
< TST TST > CAL SETUP
SETUP X.X
PRIMARY SETUP MENU
CFG DAS RNGE PASS CLK MORE EXIT
SETUP X.X
SECONDARY SETUP MENU
COMM VARS DIAG EXIT
SETUP X.X
0 ) DAS_HOLD_OFF=
15.0 Minutes
NEXT
JUMP
EDIT
PRNT EXIT
SETUP X.X
1 ) TPC_ENABLE=ON
PREV
NEXT
JUMP
EDIT
PRNT EXIT
SETUP X.X
ENTER VARS PASS: 818
8 1 8 ENTR EXIT
SETUP X.X
DAS_HOLD_OFF=15.0 Minutes
1 5 .0 ENTR EXIT
SETUP X.X 2)RCELL_SET
=
50.0 DegC
PREV
NEXT
JUMP
EDIT
PRNT EXIT
SETUP X.X 3) IZS_SET
=
50.0 DegC
PREV
NEXT
JUMP
EDIT
PRNT EXIT
DO NOT
change
theses set-points
unless
specifically
instructed to by
T-API Customer
Service.
SETUP X.X
CLOCK_ADJ=0 Sec/Day
+ 0 0 ENTR EXIT
SETUP X.X
7) CLOCK_ADJ=0 Sec/Day
PREV
NEXT
JUMP
EDIT
PRNT EXIT
EXIT ignores the new setting.
ENTR
accepts the new setting.
SETUP X.X
TPC_ENABLE=ON
ON ENTR EXIT
SETUP X.X
4 ) DYN_ZERO=ON
PREV NEXT JUMP EDIT PRNT EXIT
SETUP X.X
DYN_ZERO=ON
ON ENTR EXIT
Toggle this keys to change setting
Toggle this keys to change setting
SETUP X.X
5) DYN_SPAN=ON
PREV
NEXT
JUMP
EDIT
PRNT EXIT
SETUP X.X
DYN_SPAN=ON
ON ENTR EXIT
Toggle this keys to change setting
Toggle this keys to change setting
Toggle tese keys to change setting
SETUP X.X CONC_PRECUISION : 3
AUTO 0 1 2 3 4 ENTR EXIT
SETUP X.X 6) CONC_PRECUISION : 3
PREV
NEXT
JUMP
EDIT
PRNT EXIT
Toggle these keys to change setting
