X35 Monitor System Settings
4.20
2. Incorrect Rate - indicates that the actual
application rate is higher or lower than the
acceptable application rate range.
a. select the Threshold button to set a
percentage value that will be used to
calculate the upper and lower application
rate range limits.
3. No Comms - indicates no communication
between the X35 and the ECU(s) on the
seeder.
4. Tank Empty (Sensor) - there is no product in
front of that tank's bin level sensor. The bin
level sensors are set so that there is a minimal
amount of product remaining in the tank after
this warning.
Note: 7000AS comes equipped with an in-tank
camera system to monitor the product level.
5. Tank Low (Calculated) - the theoretical
weight of product remaining in the tank is low.
This value is based on the initial tank fill
entry, metering auger output, product density
and the set threshold. The threshold is set for
each tank individually.
a. Select the Bin/Tank button when the scroll
list appears and then select the tank you
would like to set the threshold for and
confirm.
b. Select the Threshold button when the
numeric keypad appears, enter the
threshold value in a percentage and
confirm.
6. Blocked Distribution Head - if equipped, the
sensors will detect one or more blocked runs.
7. Shaft Moving Tank OFF - signals that
a meter is still turning even though the
respective tank switch, the master, or both are
turned off.
8. No Ground Speed - no ground speed is
detected.
9. Case Drain - the fan motor case drain
pressure is too high (>65psi).

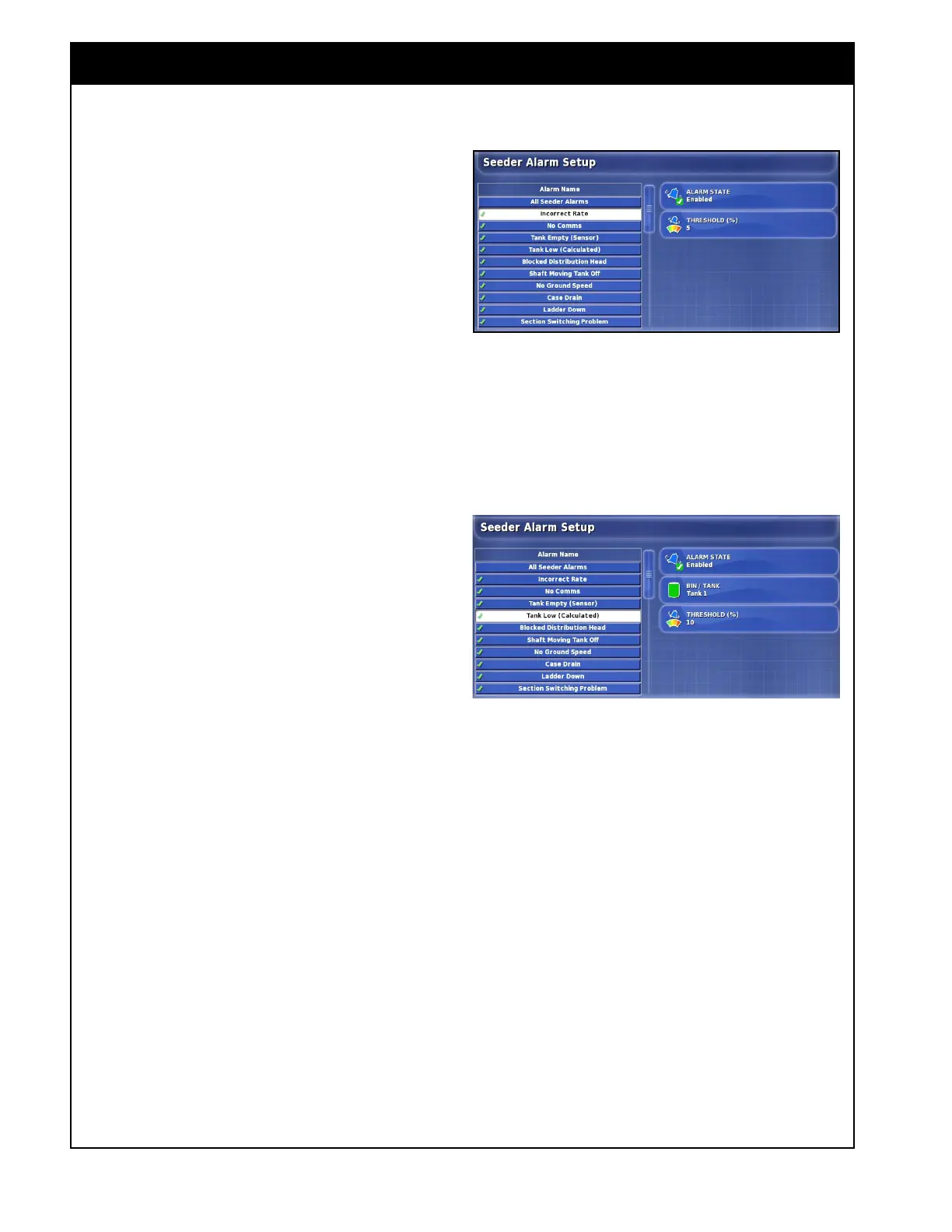

Figure 4.22 - Incorrect Rate Alarm
Figure 4.23 - Tank Low Alarm
10. Ladder Down - not used
11. Section Switching Problem - this alarm is for
granular ASC only. It signals when a section
valve should be open, but it is partially or
completely closed.
12. Gear Ratio - not used
13. Stopped Shaft - indicates that a metering
auger shaft has stopped while the tank switch
and master switch are still both on.
14. Tank Active, No Rate - indicates that the
tank switch is ON but has no application rate
entered.
15. Tank Off - indicates the the tank is enabled,
but tank switch OFF and the master switch is
ON.
