Tormach 1500MX - A- and B-Axis Drives (Page 7)

13: ELECTRICAL SCHEMATICS

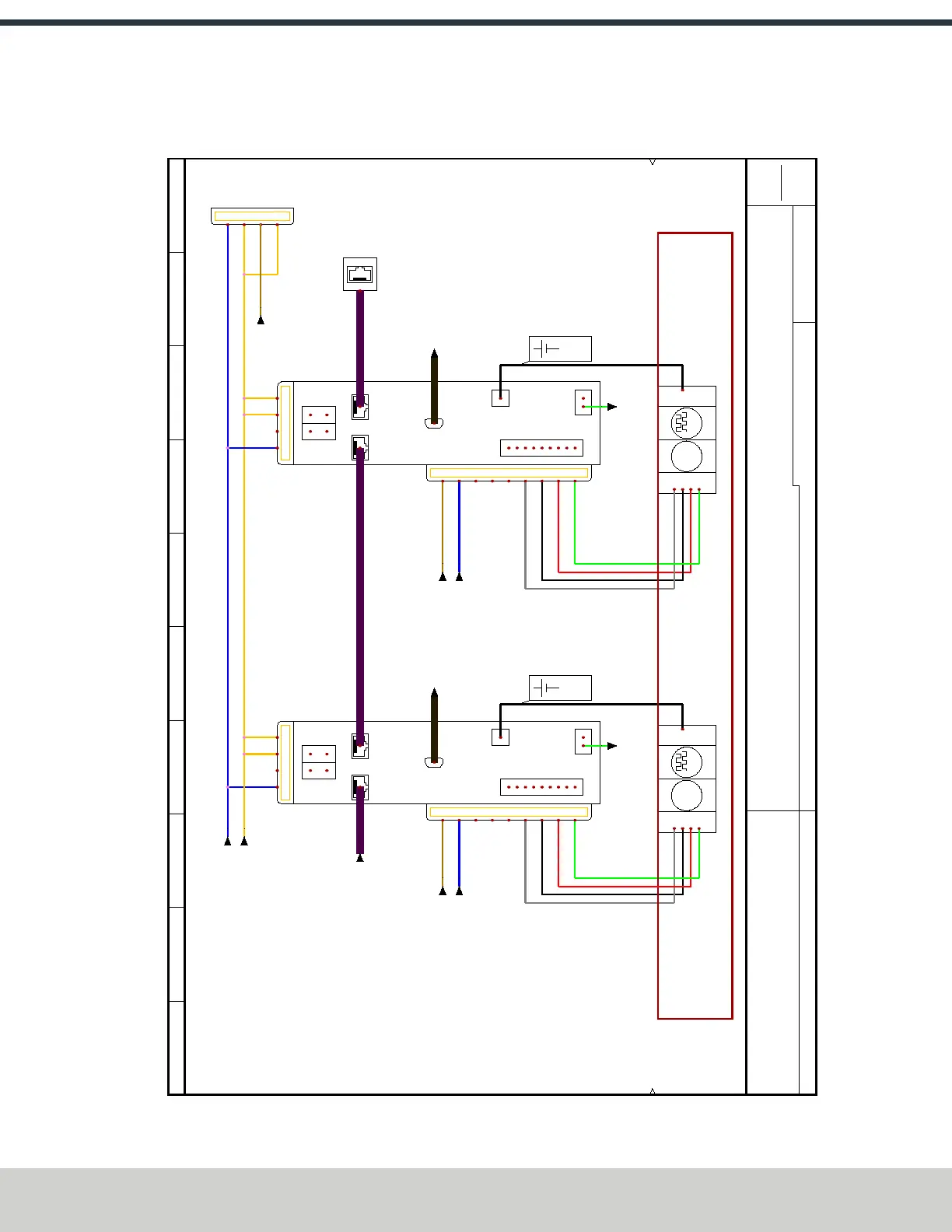

13.6 A- AND B-AXIS DRIVES (PAGE 7)
REVISION
LOCATION:
Document realized with version :
CONTRACT:
PAGE
1 2 3 4 5 6 7 8 9 10
07
+L1 Electrical Panel
Machine Schematic
13
2022.0.1.24
Tormach, Inc
4009 Felland Rd Ste 116
Madison, WI
User data 1 User data 2
AB Axis Drives
AB Axis Drives
CN1
L1 L2 P C N U V W
CN2
1
IN OUT
1 2 3 4
GND
GND
PE
-DR5 51194
Motor
3~ Encoder
U V W PE
CN2
51196
-M5
P2 - COL8 P2 - COL8
1068/N
1066
GND15
2015 2014 2013
CN1
L1 L2 P C N U V W
CN2
1
IN OUT
1 2 3 4
GND
GND
PE
-DR6 51194
Motor
3~ Encoder
U V W PE
CN2
51196
-M6
GND17
2018 2017 2016
1069/N 1067
P2 - COL8 P2 - COL8
GND30 GND31
ENC-50 ENC-51
3.6V
-B5
51337
3.6V
-B6
51337
P10 - COL4
P10 - COL4
DATA-8 DATA-10 DATA-10
P6 - COL9
IO-9 IO-9 IO-11 IO-11
P8 - COL4 P8 - COL5
-XS21
COM
24V
STO1
STO2
51348
4133, 4116
4132, 4116
4109, 4113
-XS22
COM
24V
STO1
STO2
51348
4137, 4120
4133, 4120
4109, 4114
4114
4132 4113
P6 - COL8 P6 - COL8
-XS23
1
2
3
4
51543
STO Bulkhead Connector
-ETH2
ATC Control Bulkhead
DATA-13 DATA-13
4140
4137, 4140
+L6 - Machine Frame
-XS31
L1 L2
P
U
C
N
V
W
PE
51349
-XS34
L1 L2
P
U
C
N
V
W
PE
51349
Assembled battery
and box PN: 52245
Assembled battery
and box PN: 52245
4205 4205
P3 - COL3
