4: INSTALLATION
5. With an assistant, carefully lift the coolant tank from the
pallet and lower it to the floor.
6. Put the chip baskets back into the coolant tank.
Install the Flood Coolant Pump
1. Identify the flood coolant pump and the elbow fitting
included in this kit. Wrap the threads of the elbow fitting
with thread seal tape, and hand tighten it onto the flood
coolant pump.

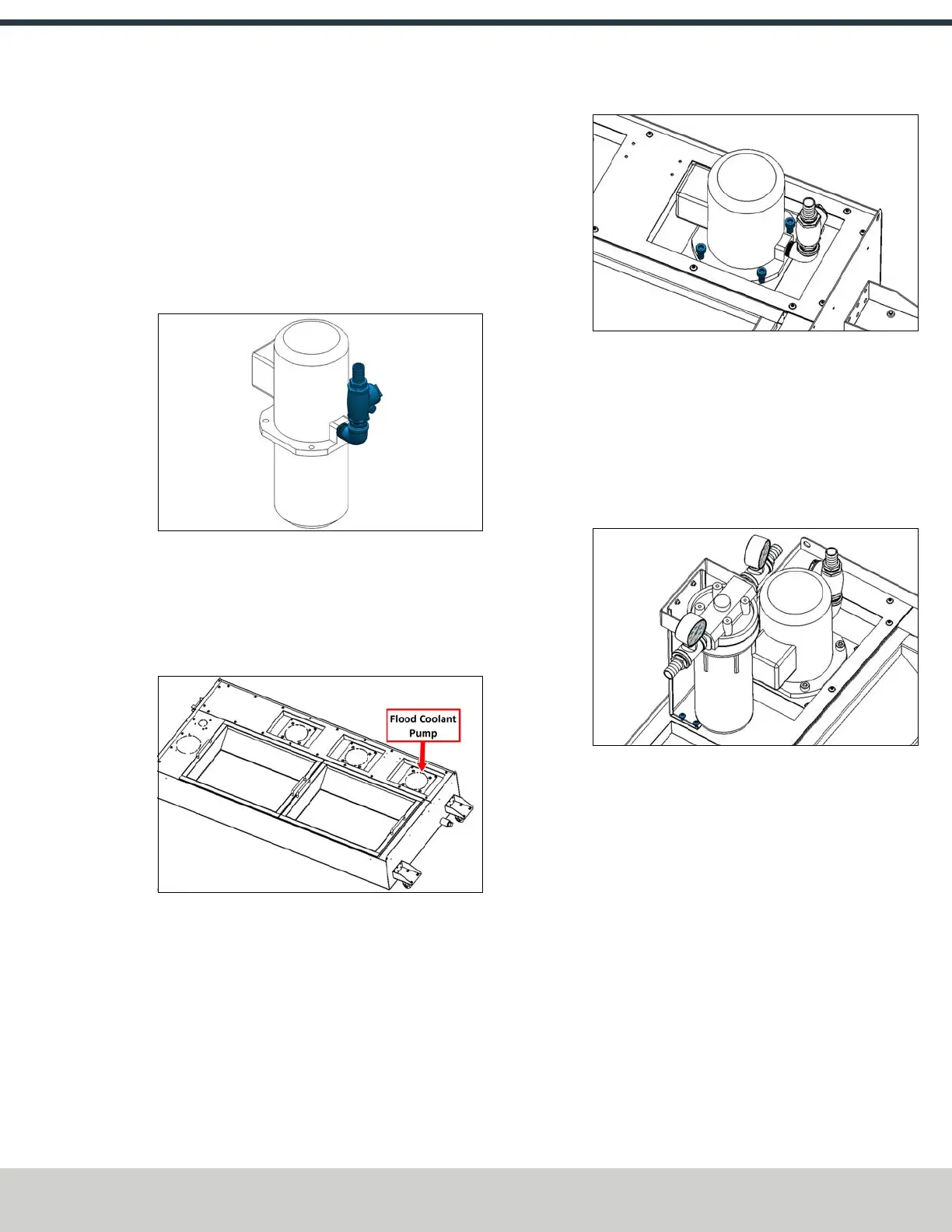

Figure 4-136: Coolant pump assembly.
2. On the coolant tank, identify the location for the flood
coolant pump as shown in the following image. Remove
the mounting plate, and knock out the center with a
hammer and punch. Then, reinstall the mounting plate
onto the coolant tank.
Figure 4-137: First mounting plate used for the flood
coolant pump.
3. Put the coolant pump into its mounting plate. Orient the
pump so that the elbow fitting is nearest to the end of
the coolant tank. Secure the coolant pump to the
mounting plate with four M10 × 1.5 - 20 socket head cap
screws (PN32625) and an 8 mm hex wrench.
Figure 4-138: Flood coolant pump installed into the
coolant tank.
Install the Flood Coolant Filter
1. Identify the flood coolant filter included with this kit.
Place it next to the flood coolant pump on the coolant
tank, and secure it to the rear mounting holes with four
M5 × 0.8 - 10 flanged button head cap screws
(PN38205) and a 3 mm hex wrench.
Figure 4-139: Filter installed next to the pump.
