2. Identify the 1 ft long, 1 in. OD hose included with this kit.
Install it between the barbed fittings on the outlet of the
coolant pump and the inlet of the coolant filter with
hose clamp springs (PN51558) and a pair of pliers.

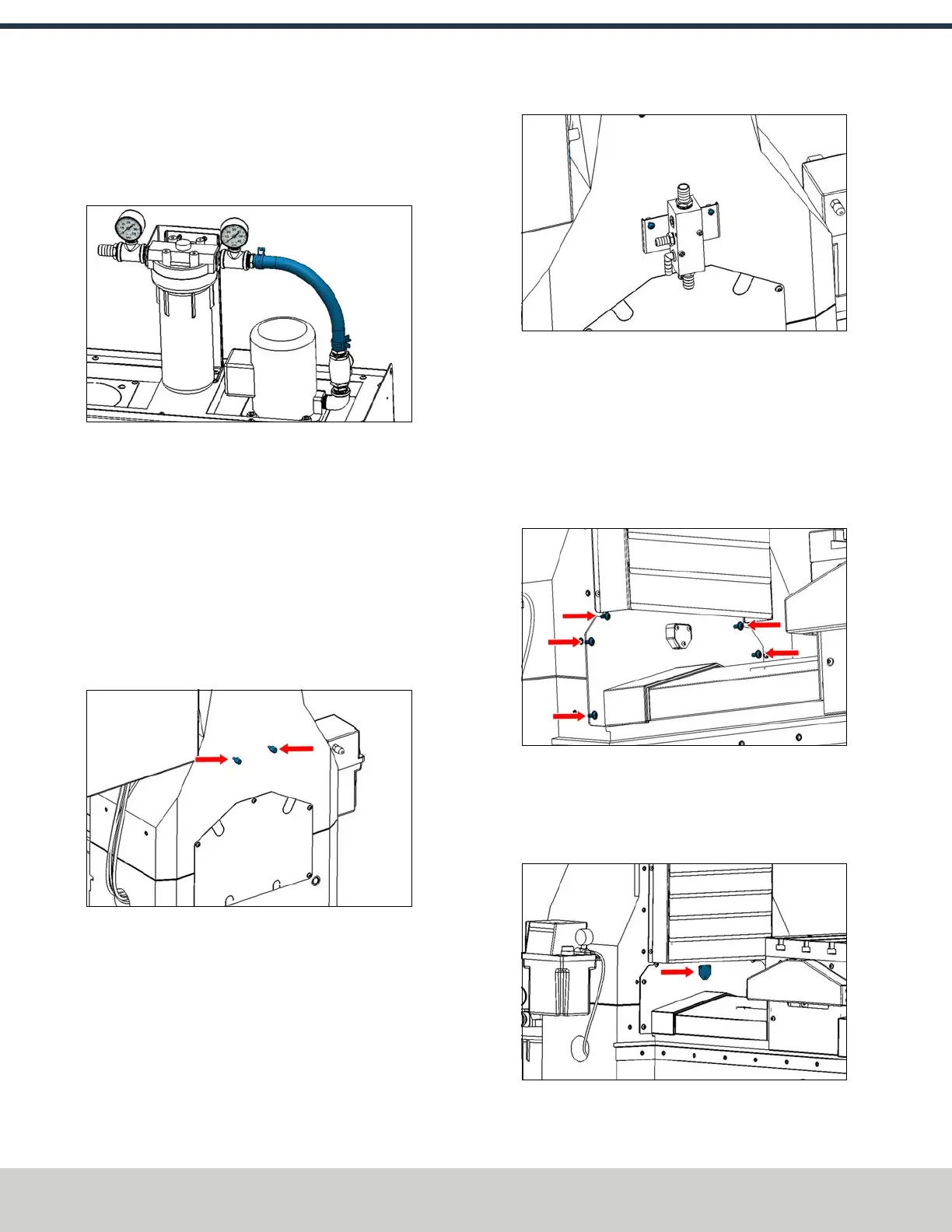

Figure 4-140: Hose installed between the filter and
the pump.
3. Move the coolant tank off to the side of the machine.
You'll move it to its final location behind the machine
later in this procedure.
Install the Coolant Manifold
1. On the back of the machine column, identify the bottom
set of M6 threaded inserts. Identify two standoffs
(PN51566) included with this kit. Then, install and
tighten them into the back of the machine column with a
13 mm wrench.
Figure 4-141: Two standoffs installed on the back of
the machine column.
2. Identify the coolant manifold assembly (PN51565) and
two M6 × 1 - 10 flanged button head cap screws
(PN51616) included with this kit. Secure the manifold to
the standoffs with a 4 mm hex wrench. Make sure that
the manifold is oriented with the mounting screws
toward the top of the machine.
Figure 4-142: Coolant mainfold assembly installed
onto the standoffs.
Install the Y-Axis Washdown Nozzle
1. On the front of the machine, identify the Y-axis rear way
cover. Remove and set aside the six M6 screws securing
the Y-axis rear way cover to the column with a 4 mm hex
wrench. Slide the cover toward the table to gain access
to the back of the cover.
Figure 4-143: Screws securing the Y-axis rear way
cover to the column.
2. Remove the three M4 screws that secure the cover plate
onto the way cover with a 2.5 mm hex wrench. Discard
the screws and the cover plate.
Figure 4-144: Y-axis washdown cover plate.
