4: INSTALLATION
4.4 UNPACK THE MACHINE CRATE
The machine's pallet has spaces that allow you to slide the
pallet out from underneath the machine without using a lifting
device. You'll need to partially disassemble the pallet and raise
up the machine by its feet to remove the pallet, as described in
the following procedure.
CAUTION! Sharp Objects Hazard: Before opening the
shipping crate, you must put on work gloves and
safety eyewear that meets ANSI Z87+. If you don't,
the shipping crate and steel straps could cut you,
causing serious injury.
1. Put on work gloves and eye protection.
2. Remove and discard the plastic wrapped around the
shipping crate.
3. Disassemble the shipping crate, starting with the top
and then the four sides. With an assistant, remove the
bottom two screws on either side of the crate's top fin.

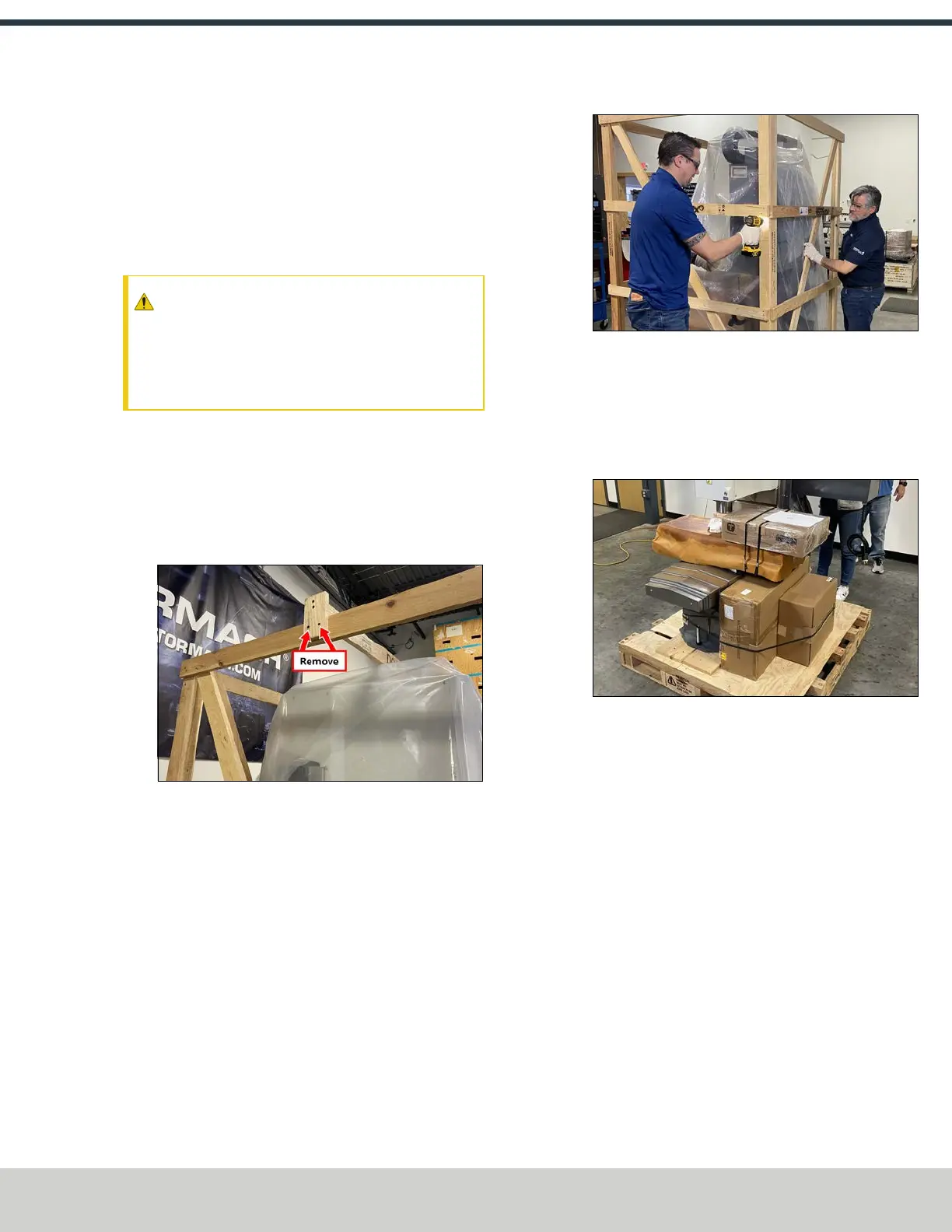

Figure 4-1: Two screws on the top fin.
4. Lift the top fin up and slide it off of the shipping crate.
5. Remove the screws on each of the four sides of the
shipping crate, starting at the bottom. With an assistant,
lift the sides of the shipping crate off of the pallet.
Figure 4-2: Removing the sides of the machine crate.
6. Remove and discard the plastic wrapped around the
machine and stapled to the crate.
7. Remove and discard the shipping straps securing the
accessory boxes (the machine owner's kit, a coolant
filter, and, if not yet installed, the operator console kit).
Figure 4-3: Accessory boxes on the machine and the
pallet.
8. Set aside the coolant filter box and the operator console
box for later use, and open the machine owner's kit box.
9. Identify the three machine foot pads and the three
machine foot spacers in the machine owner's kit.
©Tormach® 2024
Specifications subject to change without notice.
Page 41 UM10811: 1500MX Operator's Manual (Version 0424A)
For the most recent version, see tormach.com/support
