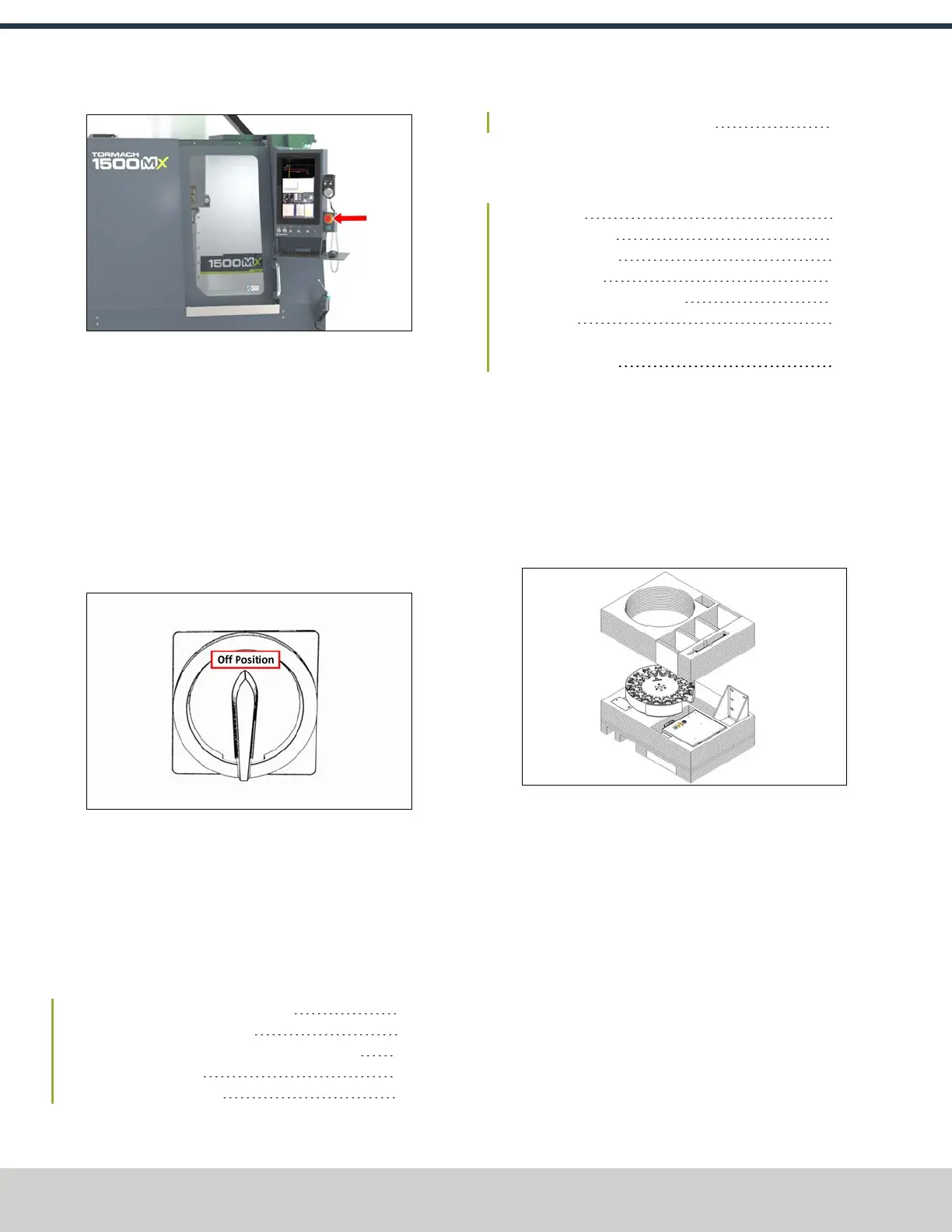

Figure 4-103: Emergency Stop button.
With the Emergency Stop button in the disabled position
all motion and spindle function stops, the Reset button is
disabled , and the blue Reset LED goes off. From the
PathPilot interface, on the Status tab, the Machine OK
light illuminates yellow.
2. From the PathPilot interface, select Exit.
3. When prompted, select OK.
4. Once the PathPilot interface indicates that it's safe to
power off the machine, turn the Main Disconnect switch
to OFF.
Figure 4-104: Example of the Main Disconnect switch
in the Off position.
Mains power is disconnected from the machine.
4.8 INSTALL ACCESSORY COMPONENTS
Install accessory components in the order specified, skipping
any components that you don't have or that were installed at
the factory for you.
4.8.1 Install the Automatic Tool Changer 68
4.8.2 Install the Flood Coolant Kit 78
4.8.3 Install the Automatic Chip Tray Washdown Kit 86
4.8.4 Install the MQL Kit 89
4.8.5 Install the microARC 6 93
4.8.6 Install the Probe and Tool Setter 98
4.8.1 Install the Automatic Tool Changer
Complete the following steps in the order listed:
Required Tools 68
Unpack the ATC Box 68
Prepare the Machine 68
Assemble the ATC 70
Install the ATC Electrical Cabinet 72
Level the ATC 75
Adjust the Tool Alignment and Set the Tool Tray Height
and Encoder Position 77
Required Tools
l Metric hex wrench set
l 13/16 socket
l Socket extension, 6 in. minimum
Unpack the ATC Box
1. Remove the top level of foam from the box and discard
it.
Figure 4-105: Removing the top level of foam from
the crate.
2. Remove and set aside all components from the box.
Prepare the Machine
1. Find the accessory kit, which contains two 10 mm
standoffs (PN52492). Remove the standoffs and set
them aside.
