Tormach 1500MX - X3 Grounds Terminal Strip (Page 15)

13.11 -X3 GROUNDS TERMINAL STRIP (PAGE 15)
REVISION
LOCATION:
Document realized with version :
CONTRACT:
SCHEME
15
+L1 Electrical Panel
Machine Schematic
13
2022.0.1.24
Tormach, Inc
4009 Felland Rd Ste 116
Madison, WI
User data 1 User data 2

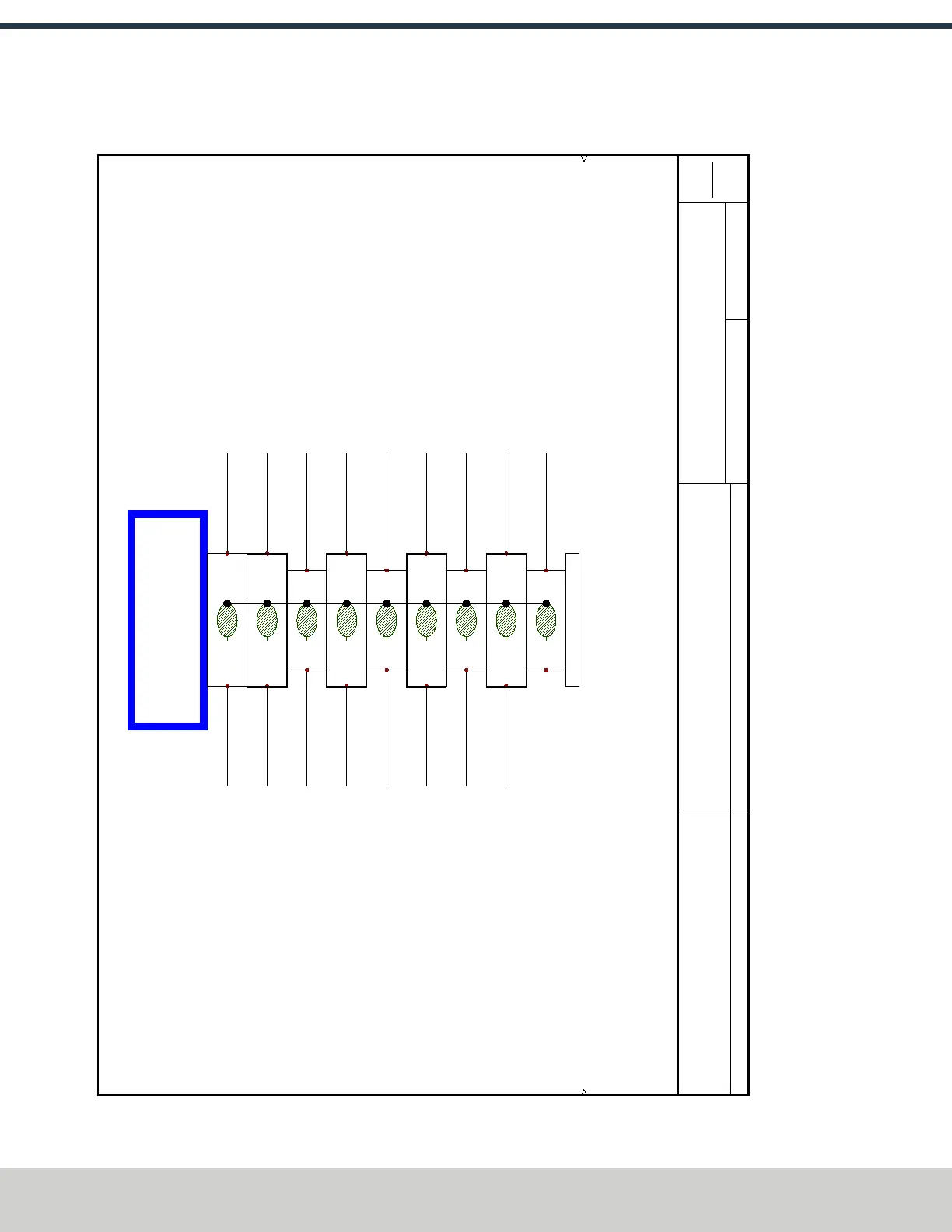

Grounds Terminal Strip
-X3
GND2
=F1+L1-FL1
GND1
=F1+L1-P1:G
1
1 2
GND40
=F1+L1-PS1
GND7
=F1+L1-DR1:GND
GND18
=F1+L1-E1.J2:3
GND37
=F1+L1-XS39:4
2.1
1 2
2.2
3 4
GND28
=F1+L1-XS44:E
GND9
=F1+L1-DR2:GND
GND24
=F1+L1-XS27:E
GND11
=F1+L1-DR3:GND
3.1
1 2
3.2
3 4
GND25
=F1+L1-XS29:E
GND13
=F1+L1-DR4:GND
GND27
=F1+L1-XS35:E
GND15
=F1+L1-DR5:GND
4.1
1 2
4.2
3 4
GND29
=F1+L1-XS43:E
GND17
=F1+L1-DR6:GND
GND38
=F1+L1-XS40:4
5.1
1 2
5.2
3 4
