NOTES
ELECTRICAL INSTALLATION MUST BE COMPLETED BY A QUALIFIED ELECTRICIAN
1.
IN ACCORDANCE WITH ALL APPLICABLE CODES AND REGULATIONS
CONFIRM THAT THE MAINS VOLTAGE CONFORMS TO REQUIREMENTS BEFORE
2.
CONNECTING THE MACHINE OR ACCESSORIES
NOMINAL VOLTAGE. VOLTAGES AS LOW AS 208V ARE PERMISSIBLE BUT WILL
3
REDUCE SPINDLE PERFORMANCE.
REV.
DESCRIPTION
DATE
REVISIONS
A
INITIAL RELEASE
2024-03
ITEM
NO.
DEVICE
VOLTAGE
RUNNING
WATTAGE
PEAK
WATTAGE
BREAKER
CONNECTOR
1
BASE MACHINE
MILL
•
CONTROLLER
•
FLOOD COOLANT
•
MIST COOLANT
•
WASHDOWN COOLANT
•
AUTOMATIC TOOL CHANGER (OPTION)
•
240V (1Ø)
3
4.4kW 6.0kW
30A
NEMA L6-30P
2
THROUGH SPINDLE COOLANT PUMP (OPTION)
240V (1Ø)
2.6kW 4.3kW
20A
NEMA 6-20P
3
CHIP CONVEYOR (OPTION)
240V (1Ø)
0.25kW 0.25kW
5A
NEMA 6-20P
4
MIST COLLECTOR (OPTION)
240V (1Ø)
0.5kW 1.5kW
10A
NEMA 6-20P
5
OIL SKIMMER (OPTION)
120V (1Ø)
0.2kW 0.2kW
15A
NEMA 5-15P
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
MATERIAL
DATE
DRAWN BY
TITLE:
SIZE
B
DWG. NO.
REV
SCALE: 1:20
A

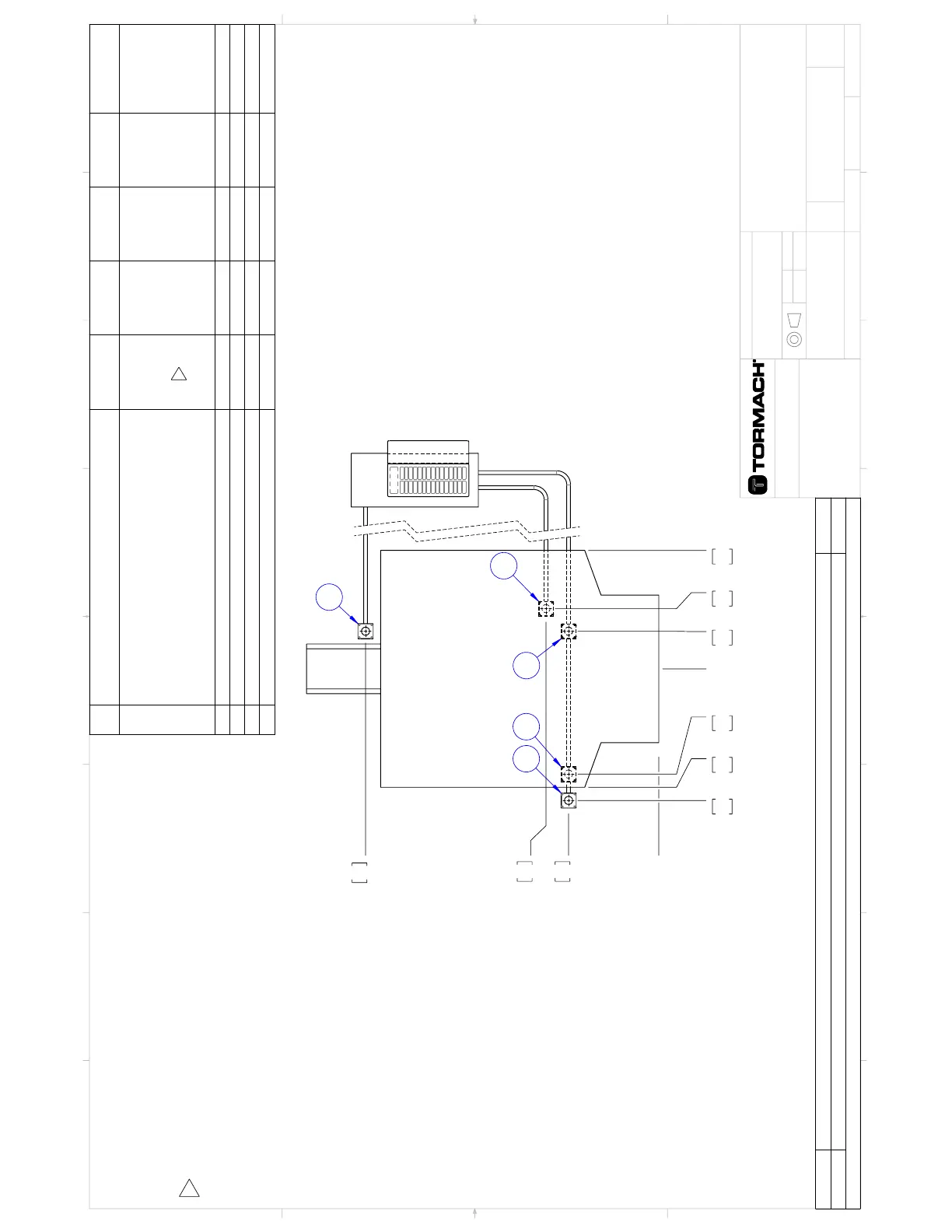

ELECTRICAL SITE
PLAN, 1500MX
SHEET 1 OF 1
53096
DO NOT SCALE DRAWING
THIS DRAWING CONTAINS PROPRIETARY
AND CONFIDENTIAL INFORMATION
BELONGING TO TORMACH INC. THIS
DRAWING MAY NOT BE REPRODUCED OR
COPIED IN WHOLE OR IN PART NOR CAN
THE INFORMATION CONTAINED BE USED
FOR ANY PURPOSE WITHOUT THE EXPRESS
WRITTEN PERMISSION OF TORMACH INC
MCB
2024-02
4009 FELLAND ROAD, STE. 120
MADISON, WI 53716
(608) 849-8381
