4: INSTALLATION
3. From the Software Update dialog box, select Check
Online.

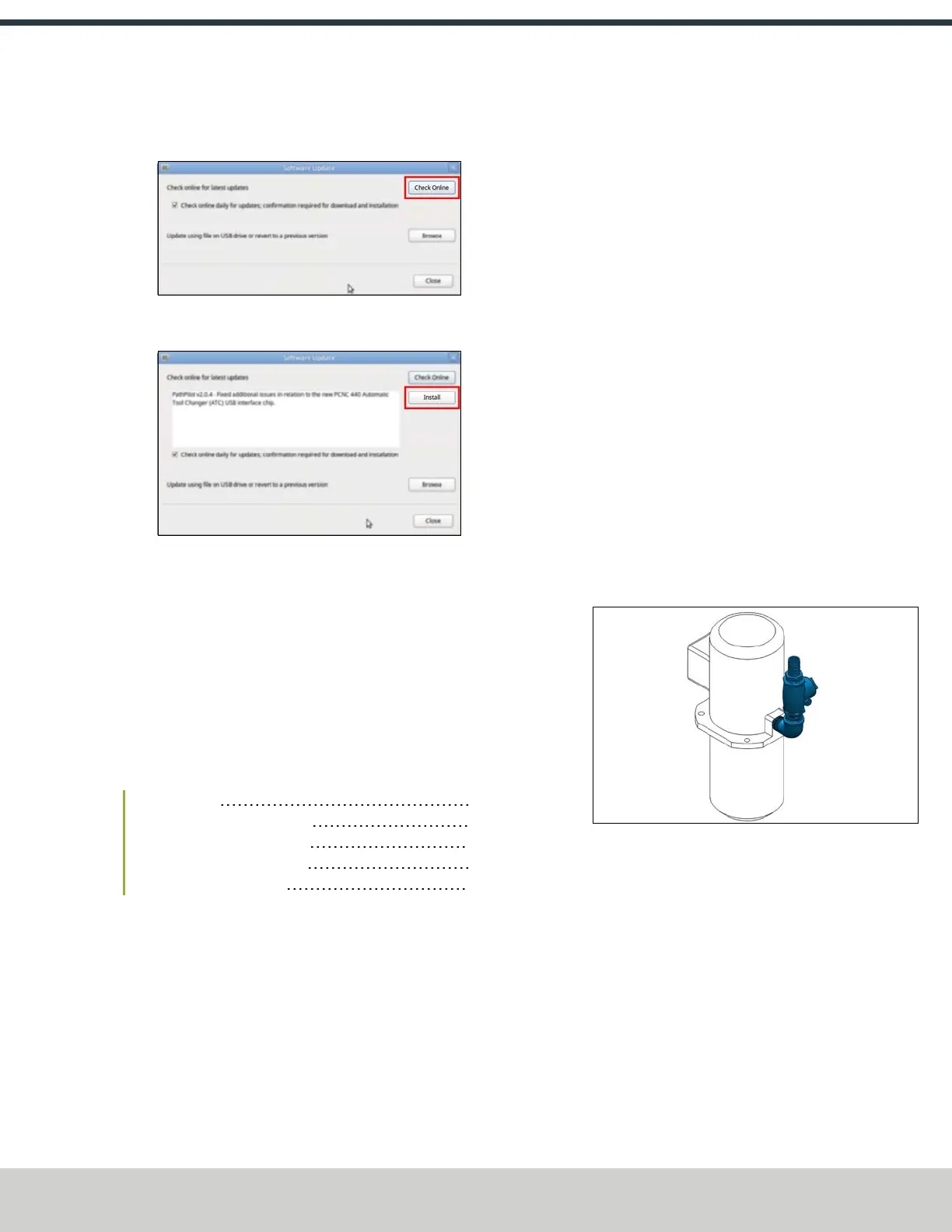

Figure 4-84: Software Update dialog box.
4. Select Install.
Figure 4-85: Install button on the Software Update
dialog box.
The update file is downloaded, and a notification dialog
box displays.
5. From the dialog box, select OK.
The update file is installed on the PathPilot controller.
6. Follow the on-screen instructions to restart the PathPilot
controller.
4.6.2 Set Up the Flood Coolant Kit
Complete the following steps in the order listed:
Required Tools 63
Unpack the Coolant Tank Crate 63
Install the Flood Coolant Pump 63
Install the Flood Coolant Filter 64
Make Coolant Connections 64
Required Tools
l Hammer
l Metric hex wrench set
l Phillips screwdriver
l Pliers
l Punch
l Thread seal tape
Unpack the Coolant Tank Crate
1. Remove the silver screws from the top and one end of
the crate with a Phillips screwdriver (or an impact gun
and a bit).
2. Remove the chip baskets and any cardboard boxes
included in the crate. Set them all aside.
3. Remove the wooden clamps that secure one end of the
coolant tank to the pallet with a Phillips screwdriver (or
an impact gun and a bit).
4. Release the brake on each of the coolant tank's four
casters. Slide the coolant tank out from under the
wooden clamps that are still installed on the crate.
5. With an assistant, carefully lift the coolant tank from the
pallet and lower it to the floor.
6. Put the chip baskets back into the coolant tank.
Install the Flood Coolant Pump
1. Identify the flood coolant pump and the elbow fitting
included in this kit. Wrap the threads of the elbow fitting
with thread seal tape, and hand tighten it onto the flood
coolant pump.
Figure 4-86: Coolant pump assembly.
©Tormach® 2024
Specifications subject to change without notice.
Page 63 UM10811: 1500MX Operator's Manual (Version 0424A)
For the most recent version, see tormach.com/support
