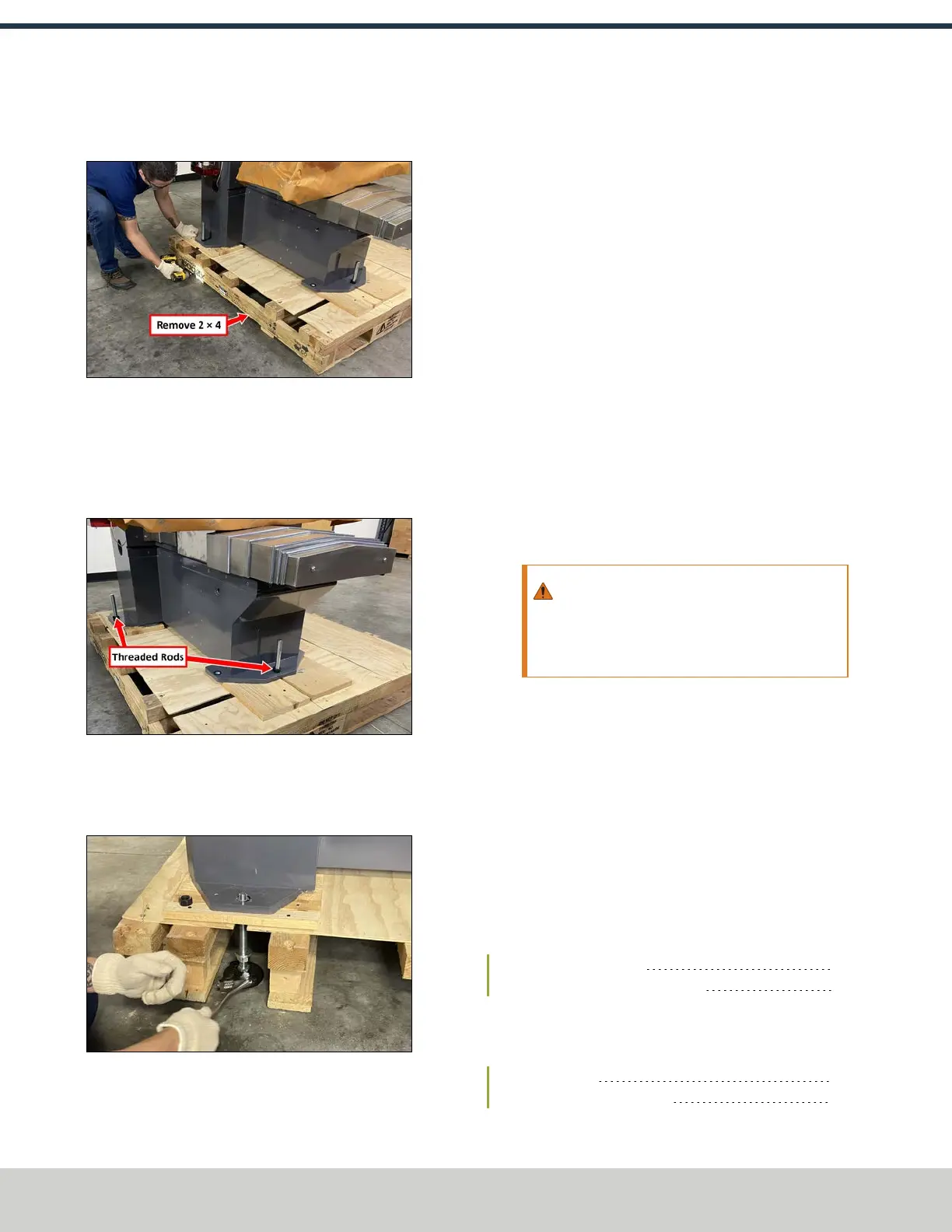

10. Remove the five screws on the 2 × 4 on the left side of
the pallet. Remove and discard the board.
Figure 4-4: Removing the 2 × 4 from the left side of
the pallet.
11. Identify the three threaded rods that attach the machine
to the pallet. Starting with one of the threaded rods,
loosen the nuts from the top and bottom with an
adjustable wrench.
Figure 4-5: Two of the three threaded rods.
12. Put the machine's foot (from the machine owner's kit)
under the threaded rod, and tighten the threaded rod
into the foot pad.
Figure 4-6: Installing the machine's foot onto the
threaded rod.
13. Repeat Steps 11 and 12 for the two remaining threaded
rods.
14. Raise the machine up by its three feet until there's a 1/8
in. gap between the pallet and the machine.
15. Remove the screws securing the plywood boards under
each threaded rod. Remove the boards off of the pallet
and discard them.
16. Verify that the machine is stable and secure on its three
feet.
17. Slide the pallet out from underneath the machine, taking
care to do this slowly and evenly to avoid damaging the
machine or pallet.
18. Remove the three machine foot spacers from the
owner's kit, and remove and discard the plastic wrapped
around them. You'll install the spacers on the machine
feet, under the mounting plate.
19. Make sure that the lock nut and the washer on the
threaded rod is 1/4 in. above the bottom nut, should
leveling be necessary.
WARNING! Crush Hazard: Make sure to lower
the machine slowly and evenly to avoid sudden
movements that could cause injury or damage
the machine.
20. Begin lowering the machine toward the ground. Work
your way around the machine, turning each threaded rod
four or five times before moving to the next foot.
21. Continue lowering the machine, until the spacer on each
foot is snug between the foot plate and the lock washer
and nut. Tighten the top nut to the foot plate.
22. Once the machine is safely on the ground, verify that it is
stable and secure.
4.5 SELF-ASSEMBLED INSTALLATION
Complete the following steps in the order listed:
4.5.1 Install the Enclosure 42
4.5.2 Set Up the PathPilot Controller 61
4.5.1 Install the Enclosure
Complete the following steps in the order listed:
Before You Begin 43
Helpful Tips for Installation 43
