4: INSTALLATION
27. Fasten the door handle bracket to the enclosure door
panel using 2 M6 × 1.0 - 12 screws.

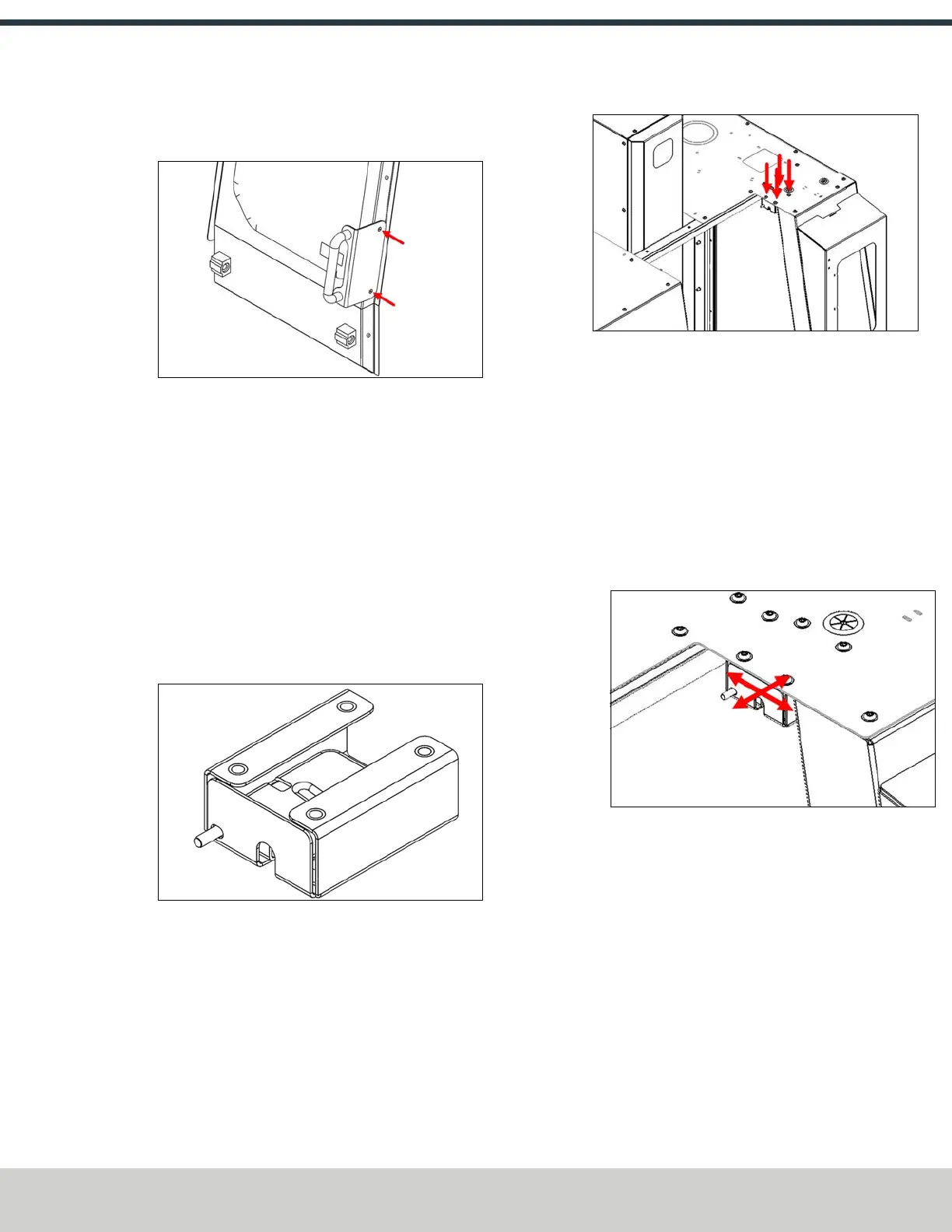

Figure 4-52: Installing the door handle bracket to the
door panel.
Secure Panel and Door Screws
1. Work your way around the entire enclosure assembly
and securely tighten all panel screws.
2. After all of the enclosure's panel screws are securely
tightened, tighten the screws on the linear rails and the
door.
Install the Door Latch
1. Identify the door switch (PN 51328) and the door latch
bracket (PN 51369). Put the door switch into the bracket,
and secure it with four M4 × 0.7 - 8 screws (PN51229).
Figure 4-53: Door switch and door latch bracket sub-
assembly.
2. Fasten the door switch to the top right panel using four
M6 × 1.0 - 12 screws.
Figure 4-54: Installing the door switch to the top right
panel.
3. Fasten the door switch key to the door panel with two
Phillips screws.
4. Align the door switch latch plate to the door switch by
adjusting the mounting fasteners as follows:
l To adjust the left/right position of the switch, use the
fasteners securing it to the door latch bracket.
l To adjust the front/back position of the switch, use
the fasteners securing the door latch bracket to the
top right panel.
Figure 4-55: Directions in which to adjust the door
switch latch plate to the door switch.
