4: INSTALLATION
5. Identify the 12 ft, 1 in. ODhose (PN51608) and two hose
clamps(PN51558) included with this kit. Install one end
of the hose to the barbed hose fitting on the top of the
coolant manifold block with one hose clamp and a pair
of pliers.

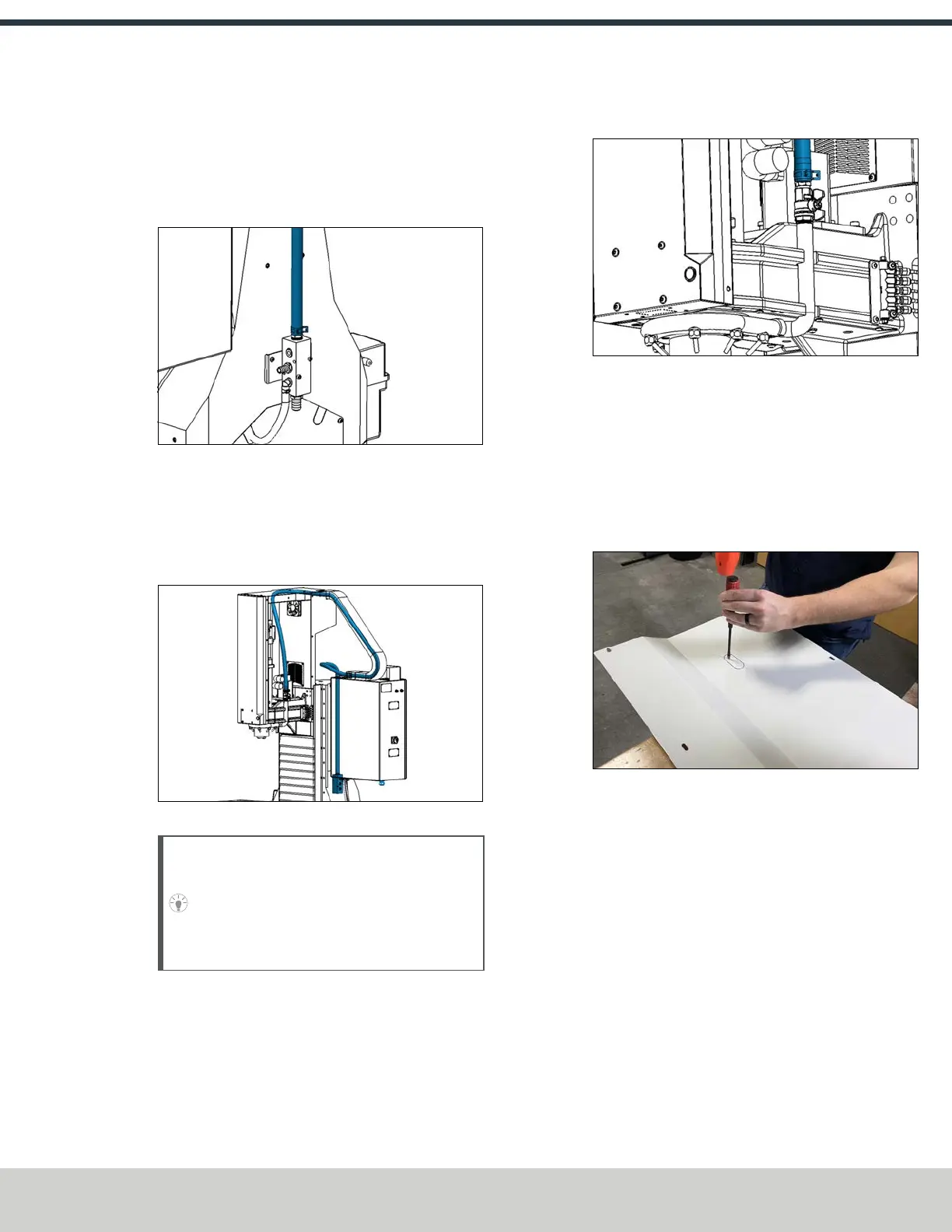

Figure 4-154: Hose installed onto the coolant
manifold block.
6. Route the loose end of the hose toward the top of the
electrical cabinet. Starting at the electrical cabinet, feed
the hose through the energy chain toward the back side
of the spindle head cover.
Figure 4-155: Hose routing to the electrical cabinet.
Tip! It may be helpful to have the Z-axis raised
to its maximum height, and you may need to
remove several of the energy chain covers with
a flat-blade screwdriver (or similar) to help
route the hose through the energy chain.
7. Route the hose through the opening at the top left side
of the spindle head cover.
8. Connect the hose to the barbed fitting on the coolant
ring using a pair of pliers and a hose clamp (PN51558).
Make sure the hose clamp is facing toward the front of
the machine. If it's not, it may cause interference when
you reinstall the side panel.
Figure 4-156: Hose connected to the coolant ring.
9. On the side of the coolant ring, turn the handle for the
valve to the vertical position. This allows the handle to
slip through the hole in the right side spindle cover.
10. Pull the slack from the coolant tube out at the back of
the machine.
11. On the right side spindle cover, remove the knock-out
hole with a hammer and punch.
Figure 4-157: Knock-out hole on the right side spindle
cover.
12. Reinstall the right side spindle cover panel with a 4 mm
hex wrench and the screws that you set aside earlier. It
may help to loosen the three bottom screws even further
when you're reinstalling the panel.
Install the Manual Sprayer
1. On the top right panel of the enclosure, identify the hole
for the washdown bulkhead fitting. Remove the plastic
grommet.
