13: ELECTRICAL SCHEMATICS
REVISION
LOCATION:
Document realized with version :
CONTRACT:
SCHEME
12
+L1 Electrical Panel
Machine Schematic
13
2022.0.1.24
Tormach, Inc
4009 Felland Rd Ste 116
Madison, WI
User data 1 User data 2

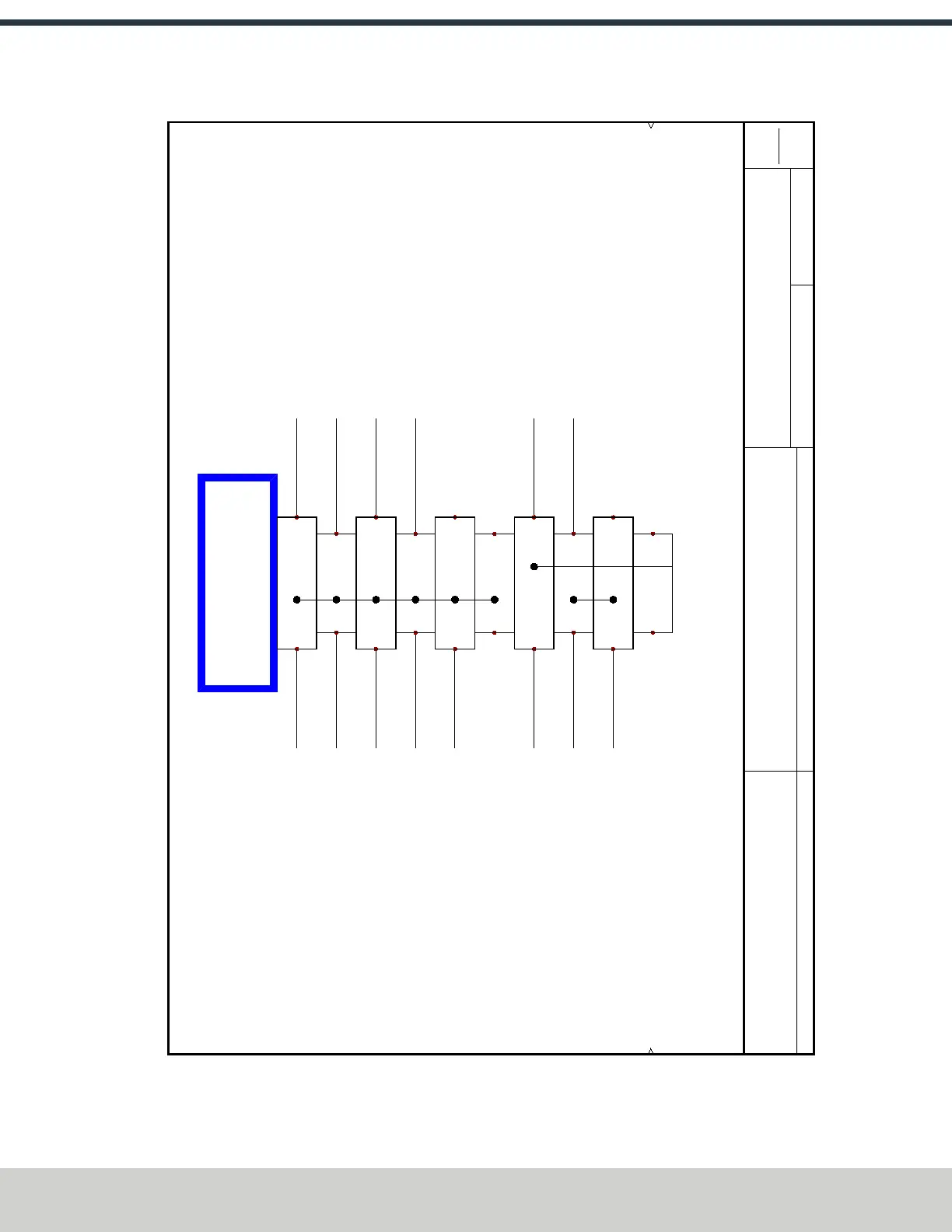

AC Terminal Strip
-X1
1033/N
=F1+L1-PS1:N
1023/N
=F1+L1-FL1:L'
1038/N
=F1+L1-DR2:L2
1025/N
=F1+L1-K1:3
6.1
21
6.2
43
1039/N
=F1+L1-DR3:L2
1068/N
=F1+L1-XS31:L2
1040/N
=F1+L1-DR4:L2
1069/N
=F1+L1-XS34:L2
7.1
21
7.2
43
1043/N
=F1+L1-DR1:L2C
8.1
21 4
8.2
3
1018
=F1+L1-E1.J34:1
1017
=F1+L1-E1.J34:3
1013
=F1+L1-CB2:4
1062
=F1+L1-XS44:L
9.1
21
9.2
43
1064
=F1+L1-XS43:L
10.1
21 4
10.2
3
