4: INSTALLATION

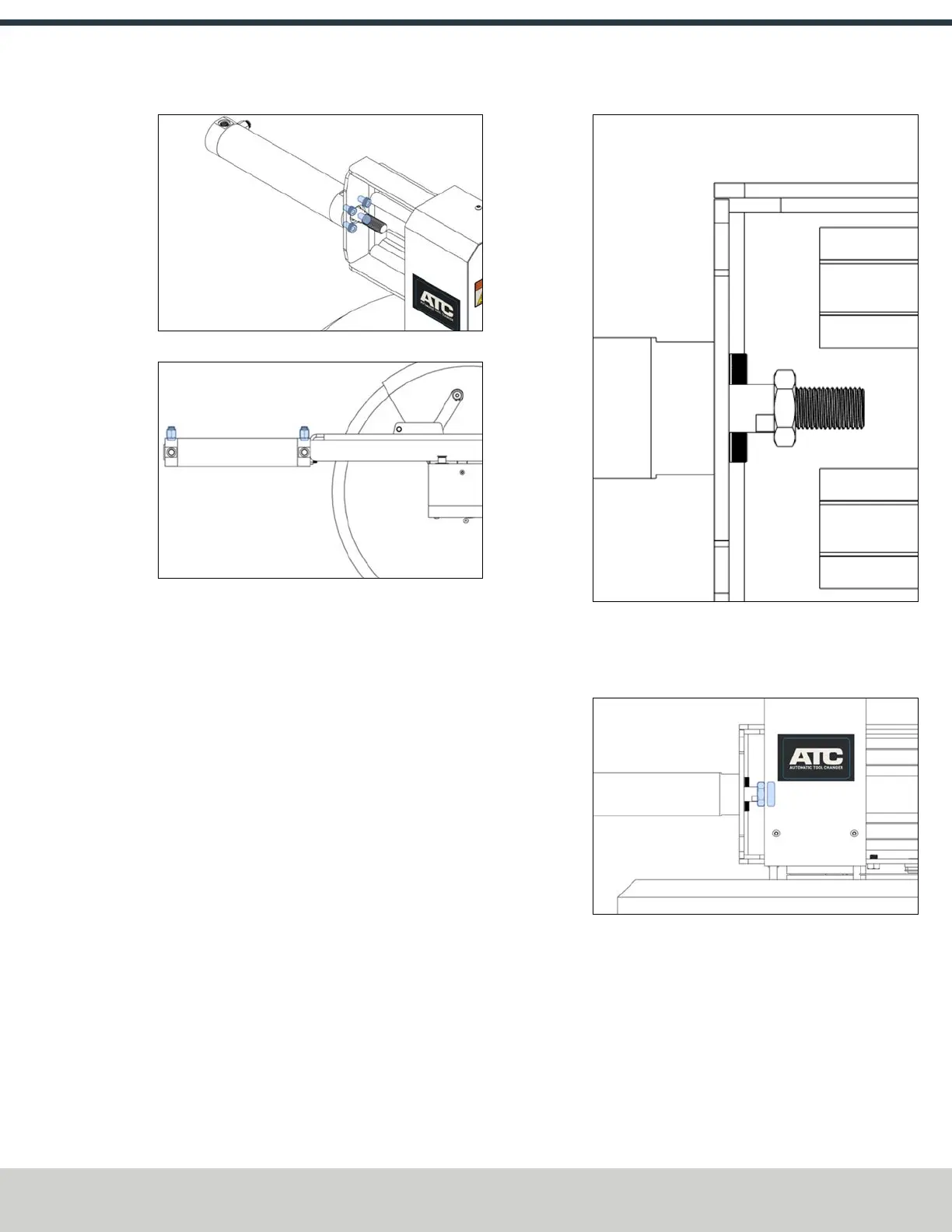

Figure 4-111: Installing the pneumatic actuator.
Figure 4-112: Position of pneumatic connectors.
2. Thread a nut onto the end of the pneumatic actuator's
piston. Do not tighten the nut.
Figure 4-113: Piston nut on the bottom of the piston
rod.
3. Slide the motor box onto the piston shaft and secure it
with a second nut against the piston nut.
Figure 4-114: Motor box secured onto the piston
shaft.
4. Tighten the lock nuts with a ratchet with an extension
and a 13/16 socket.
