Utax P-4532DN - 4 - 3 Maintenance Parts replacement procedure; (1) Paper feed section; (1-1) Detaching and refitting the paper feed roller

4-4
Maintenance ＞ Maintenance Parts replacement procedure
4 - 3 Maintenance Parts replacement procedure
Maintenance Kit has to be replaced every 300,000 images (45 ppm) and 500,000 images (50/55/50 ppm). [Replace
Maintenance kit] comes up on display when the time for replacement.
Replace the Maintenance Kit with following procedures.
(1) Paper feed section
(1-1)Detaching and refitting the paper feed roller

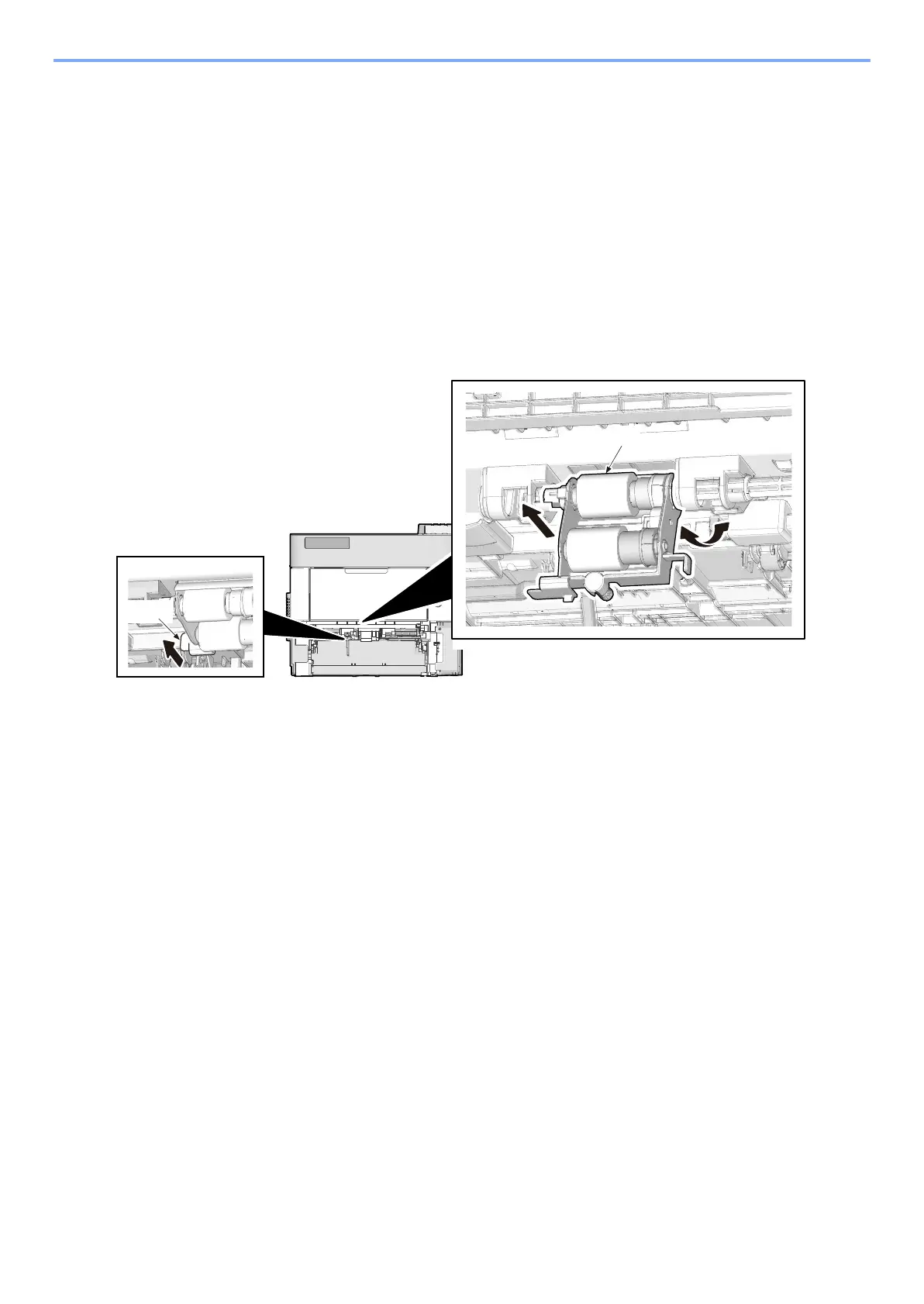

1 Pull out cassette.
2 Release the lock by pulling the lever (a).
3 Detach the paper feed roller assembly (b) by raising it up and slide frontward.
4 Check or replace the paper feed roller and refit all the removed parts.
a
b
