Utax P-4532DN - (8) Eject;Feedshift section

3-35
Machine Design ＞ Mechanical construction
[CONFIDENTIAL]

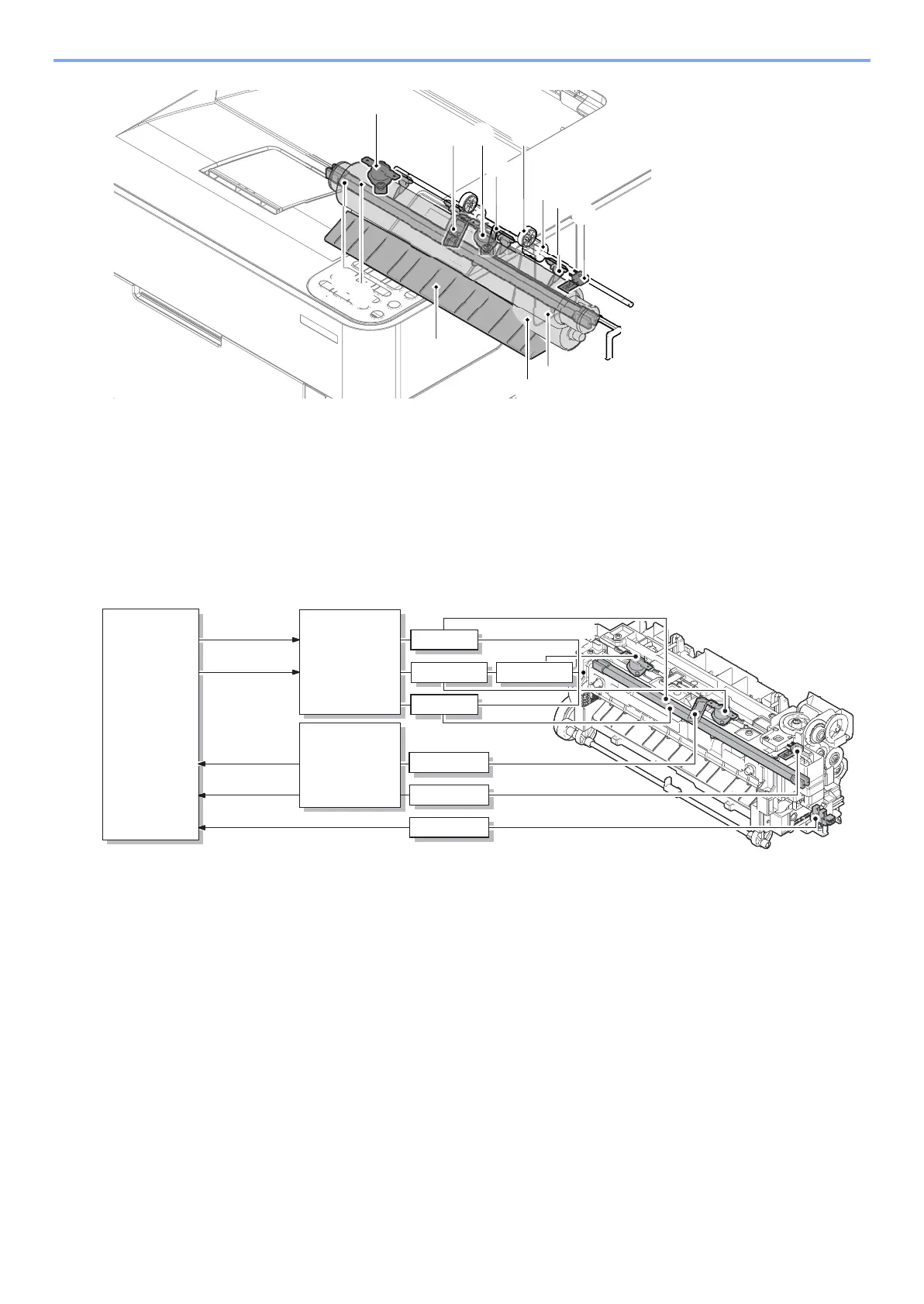

Block diagram
(8) Eject/Feedshift section
The paper eject/feedshift section consists of the conveying path which sends the paper that has passed the fuser
section to the facedown tray, the faceup tray (60/50/45 ppm model only) or the duplex conveying section.
1 Heat roller
2 Fuser heater
3 Fuser thermostat
4 Fuser thermistor 1
5 Separators
6 Press roller
7 Actuater (Eject sensor)
8 Fuser eject roller
9 Fuser eject pulley
10 Fuser thermistor 2
11 Pre fuser guide
4
3
9
8
3
10
11
2
2
6
1
7
5
YC1-1
YC1-2
YC21-1
YC21-2
YC26-3
HEAT2REM
HEAT1REM
TH3
TH1
EXTSENSN
Power source
PWB
YC2-1
YC2-2
YC2-3
YC2-2
Fuser heater 1
Fuser heater 2
YC2-2
Engine PWB
Fuser unit
Fuser thermistor
relay PWB
Fuser thermistor 2
Fuser thermistor 1
Eject sensor
Fuser
thermostat 1
Fuser
thermostat 2
