Utax P-4532DN - (5-2) Detaching and refitting the separation needle unit

4-11
Maintenance ＞ Maintenance Parts replacement procedure
2

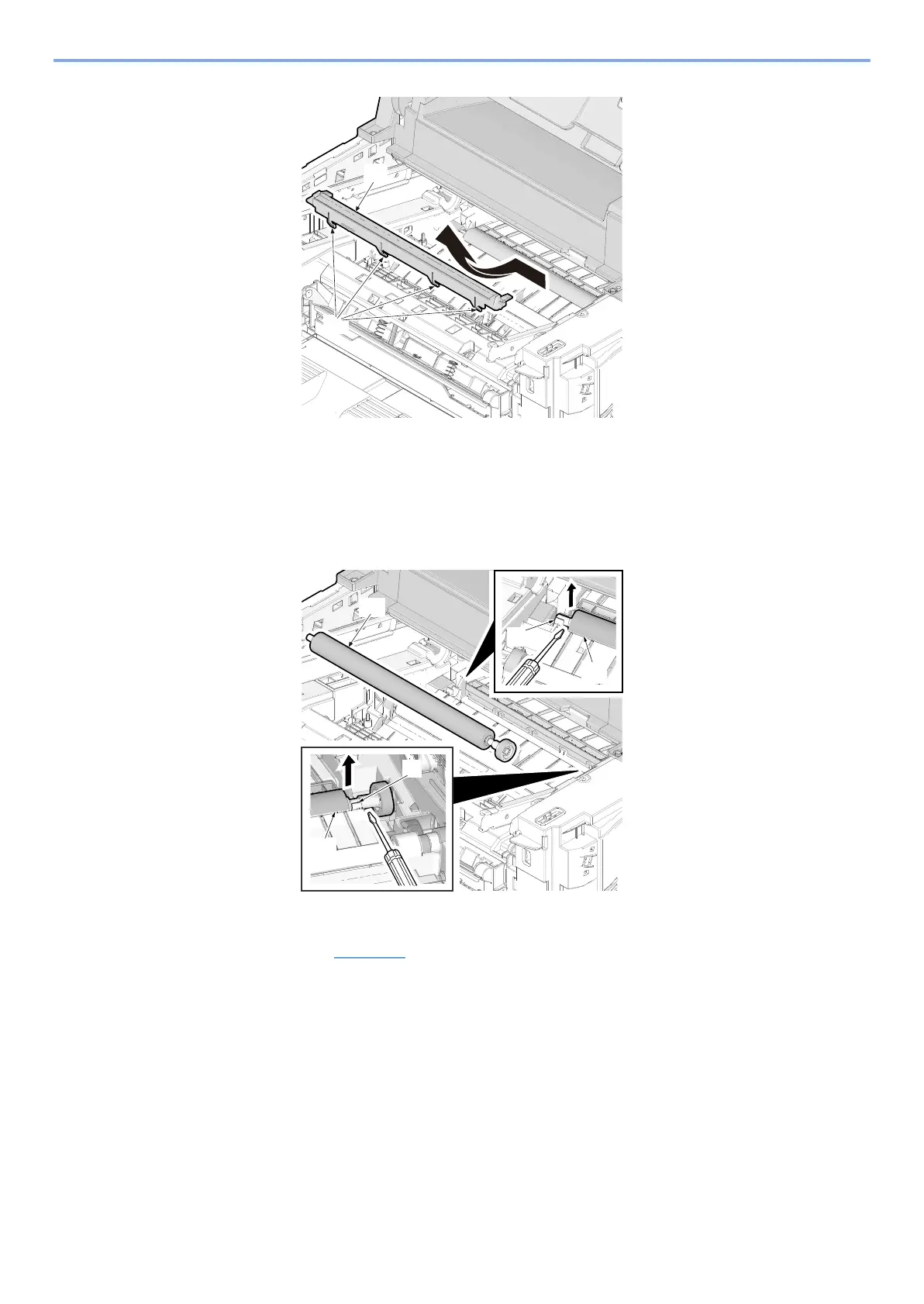

Detach the transfer roller.
1 Detach the shaft of transfer roller (a) from each bushes (b).
2 Detach the transfer roller assembly (a) upward.
3 Check or replace the transfer roller assembly and refit all the removed parts.
(5-2)Detaching and refitting the separation needle unit
1 Detach the transfer roller. (See Page 4-10)
2 Release four hooks (b) of separation needle unit (a) by rotating forward and then detach it upward.
3 Check or replace the separation needle unit and refit all the removed parts.
b
a
a
a
a
b
b
