Utax P-4532DN - (6) Fuser section; (6-1) Detaching and refitting the fuser unit

4-12
Maintenance ＞ Maintenance Parts replacement procedure
2

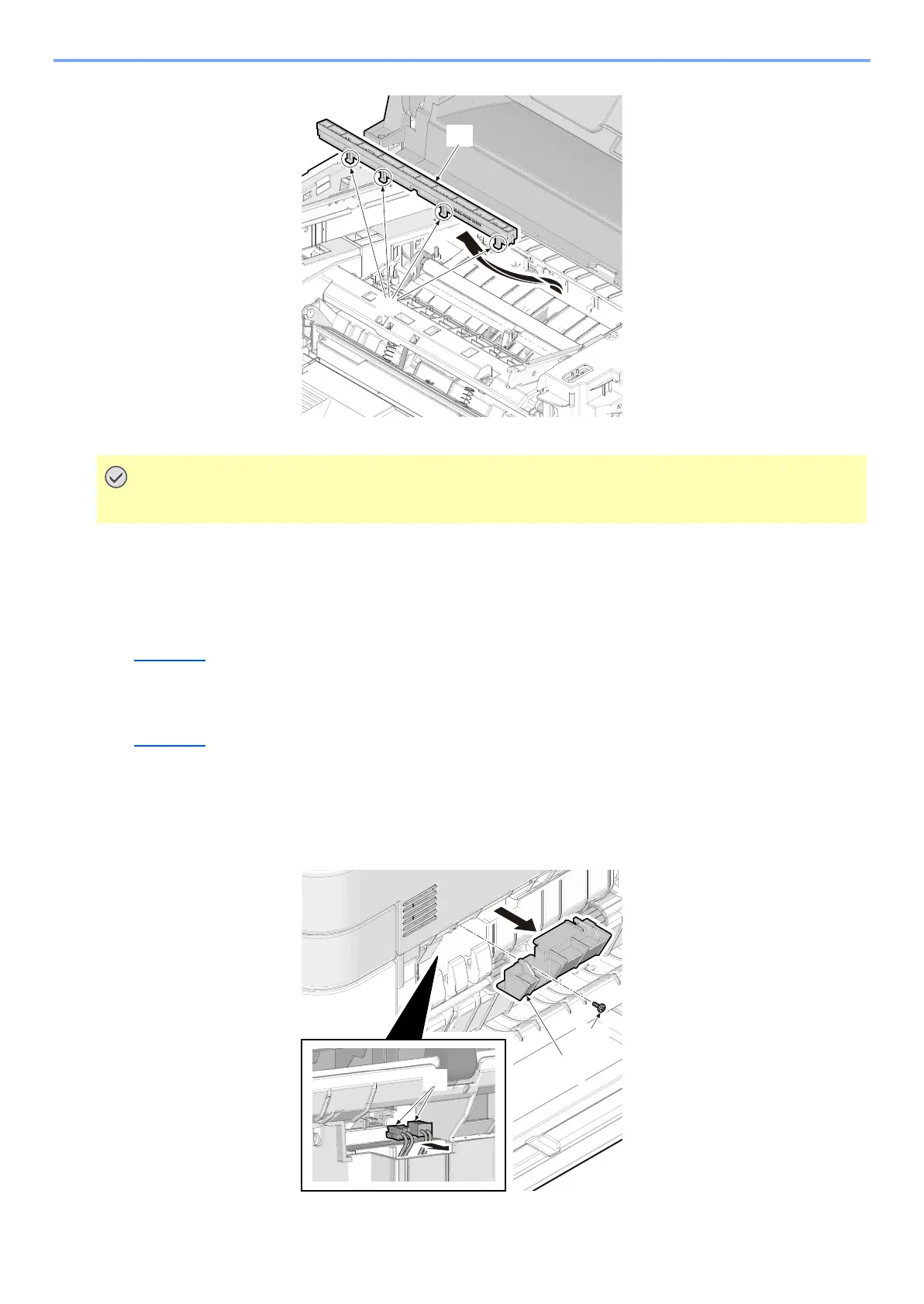

(6) Fuser section
(6-1)Detaching and refitting the fuser unit
1
Detach the inlet cover and interface cover
(See Page 4-14)
2
Detach the rear cover.
(See Page 4-21)
3
Detach the fuser unit.
1 Remove the screw (a) and then detach the connector cover A (b). (M3x8)
2 Pull 2 connectors (c) out.
Important
Check if the parts is fixed at the time of attachment.
b
a
a
b
c
