Utax P-4532DN - (2) Descriptions about the major PWBs; (2-1) Main PWB; (2-2) Engine PWB

3-5
Machine Design ＞ Electric parts
[CONFIDENTIAL]
(2) Descriptions about the major PWBs

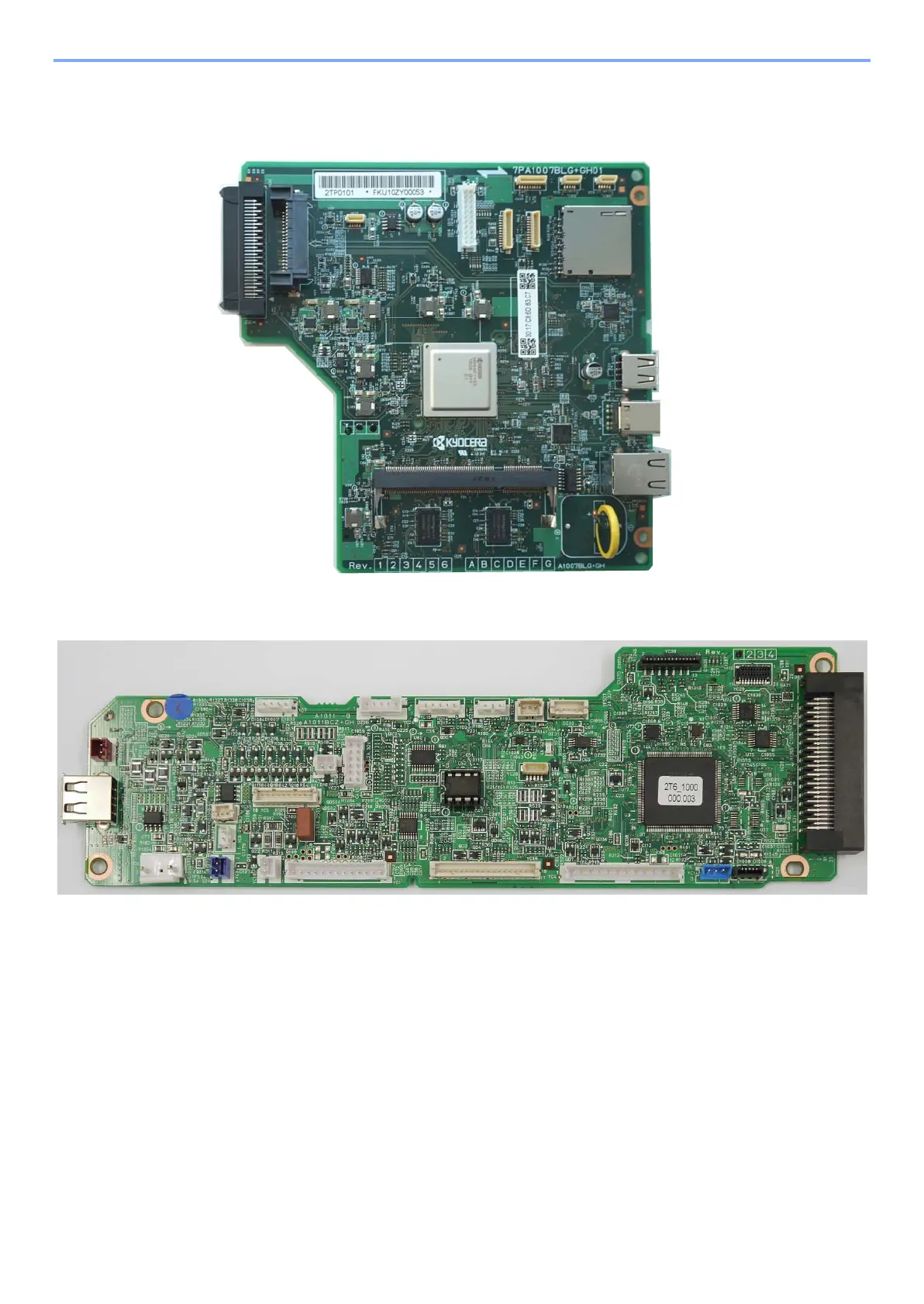

(2-1)Main PWB
Controls the software such as the print data processing and provides the interface with computers.
(2-2)Engine PWB
Controls printer hardware such as high voltage/bias output control, paper conveying system control, and fuser
temperature control, etc.
