Utax P-4532DN - (5-6) Direction of the fan motor installation.

4-42
Maintenance ＞ Assembly and disassembly

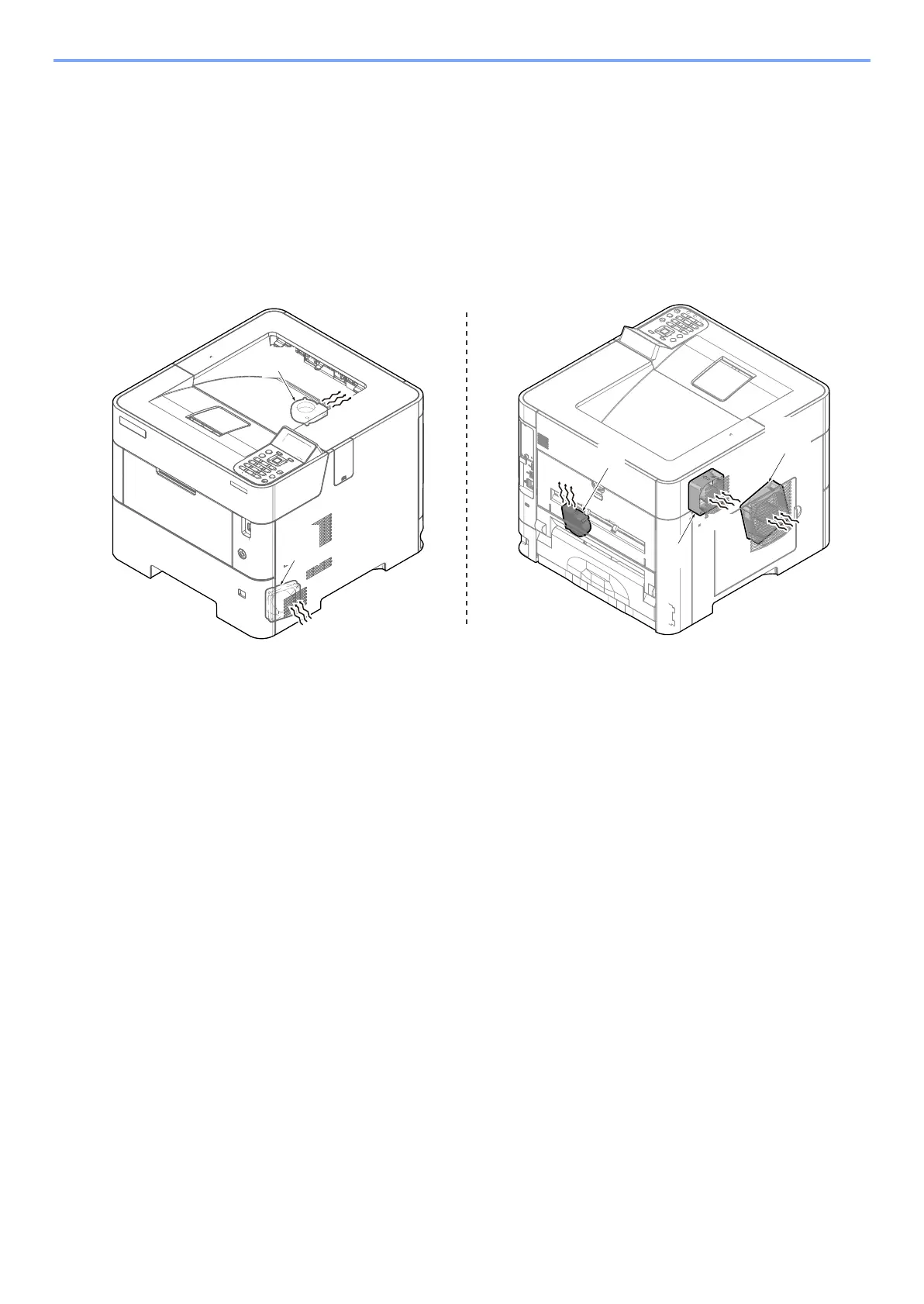

(5-6)Direction of the fan motor installation.
When detaching or refitting the fan motor, pay attention of the airflow direction (intake or exhaust).
• Center motor fan (a) *1: Exhaust (Rating label face down)
• Power source fan motor (b): Intake (Rating label face inside)
• LSU fan motor (c): Intake (Rating label face inside)
• Rear fan motor (d) *1: Exhaust (Rating label face inside)
• Developer fan motor (e): Intake (Rating label face inside)
*1: 100V model only]
㸧
㸧
㸧
a
c
d
b
e
