Utax P-4532DN - (4-2) Detaching and refitting the engine PWB

4-28
Maintenance ＞ Assembly and disassembly
(4-2)Detaching and refitting the engine PWB
1
Remove the right cover.
(See Page 4-15)
2
Detach the left cover.
(See Page 4-18)
3
Detach the top cover assembly.
(See Page 4-21)
4

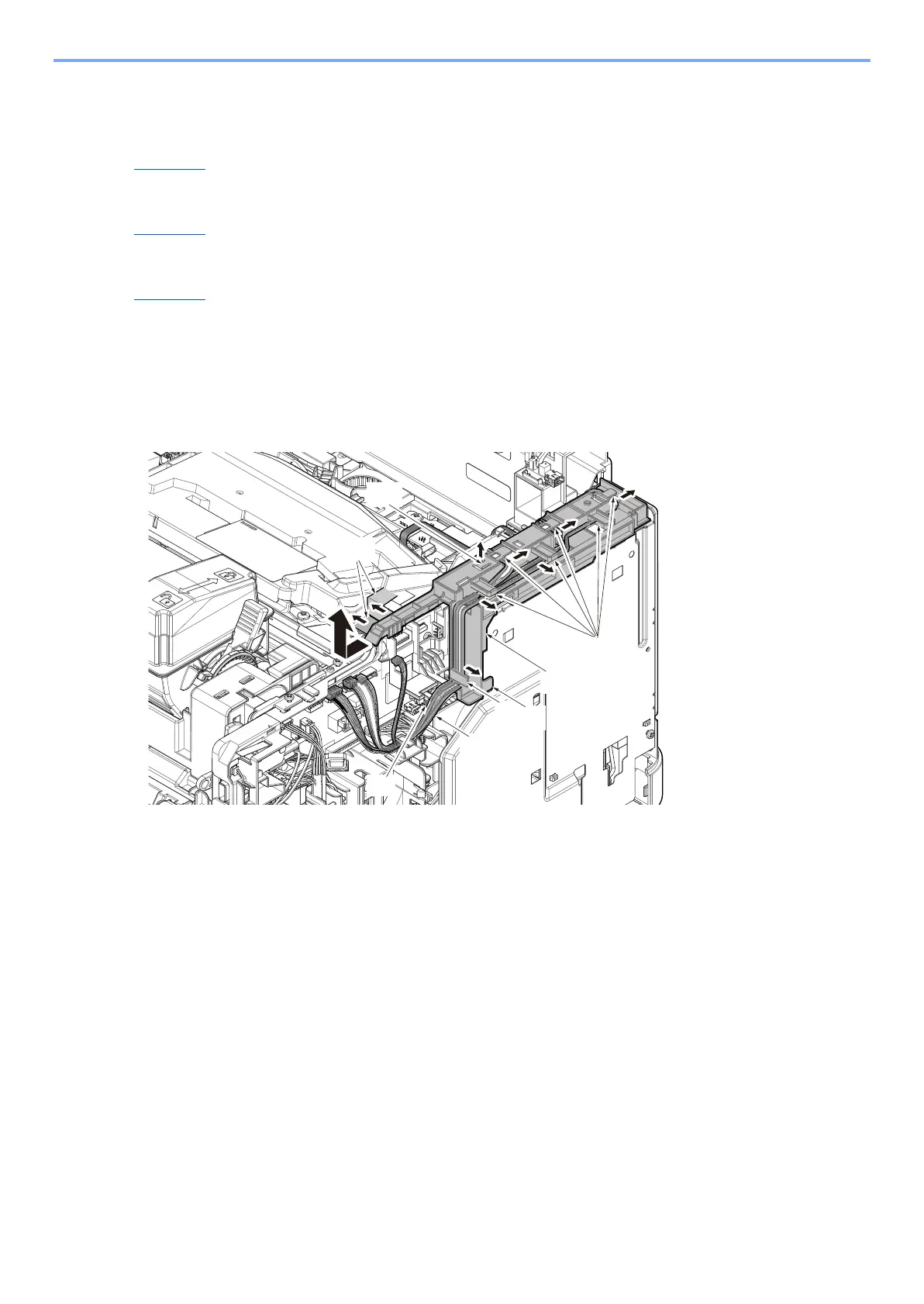

Detach the wire guide 1.
1 Remove two FFCs (a) from inside of frame.
2 Release the wires (c) and FFC (d) from hooks (b).
3 Release the fixing hook (e) and then remove the wire guide 1 (f).
5
Detach the wire guide 2.
1 Pull the connector (a) out.
2 Remove screw (b) and release 2 hooks (c) then remove the wire guide 2. (M3x8)
f
c
a
b
e
b
e
d
