Utax P-4532DN - (4-6) Detaching and reattaching the operation PWB; (5) Drive section; (5-1) Detaching and reattaching the main drive unit

4-37
Maintenance ＞ Assembly and disassembly

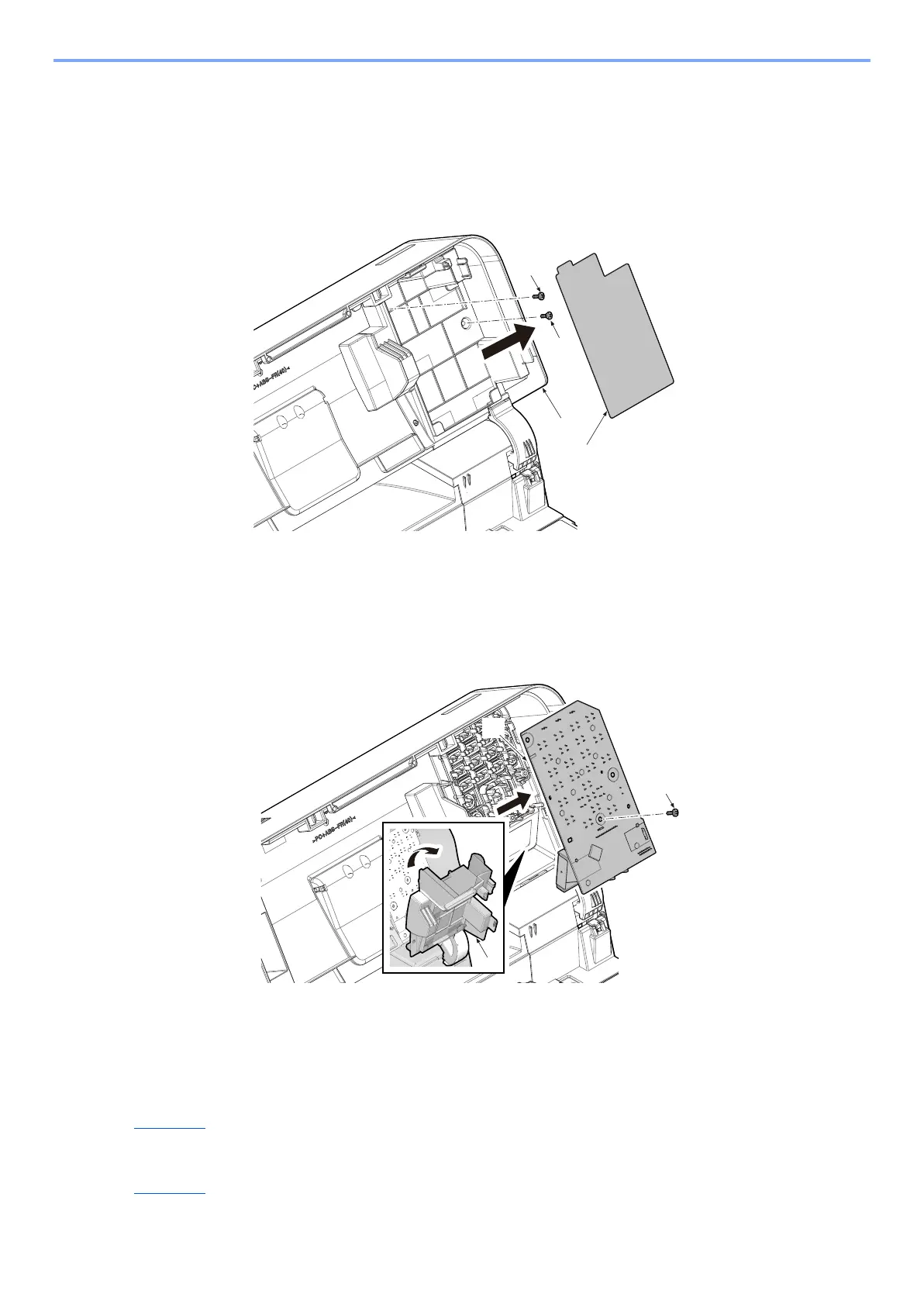

(4-6)Detaching and reattaching the operation PWB
1
Open the top cover (a).
2
Remove the jam clearance procedure sheet (b).
3
Remove 2 screws (c). (M3x8)
4
Remove the operation PWB.
1 Rotate the operation PWB cover (a).
2 Remove the screw (b) and take the operation PWB out. (M3x8)
3 Check or replace the operation PWB and refit all the removed parts.
(5) Drive section
(5-1)Detaching and reattaching the main drive unit
1
Remove the right cover.
(See Page 4-15)
2
Detach the left cover.
(See Page 4-18)
c
b
a
c
b
a
c
a
