4-38
Maintenance ＞ Assembly and disassembly
3
Detach the top cover assembly.
(See Page 4-21)
4
Detach the main PWB.
(See Page 4-26)
5
Detach the wire guide 1.
(See Page 4-26)
6
Detach the controller box cover.
(See Page 4-32)
7

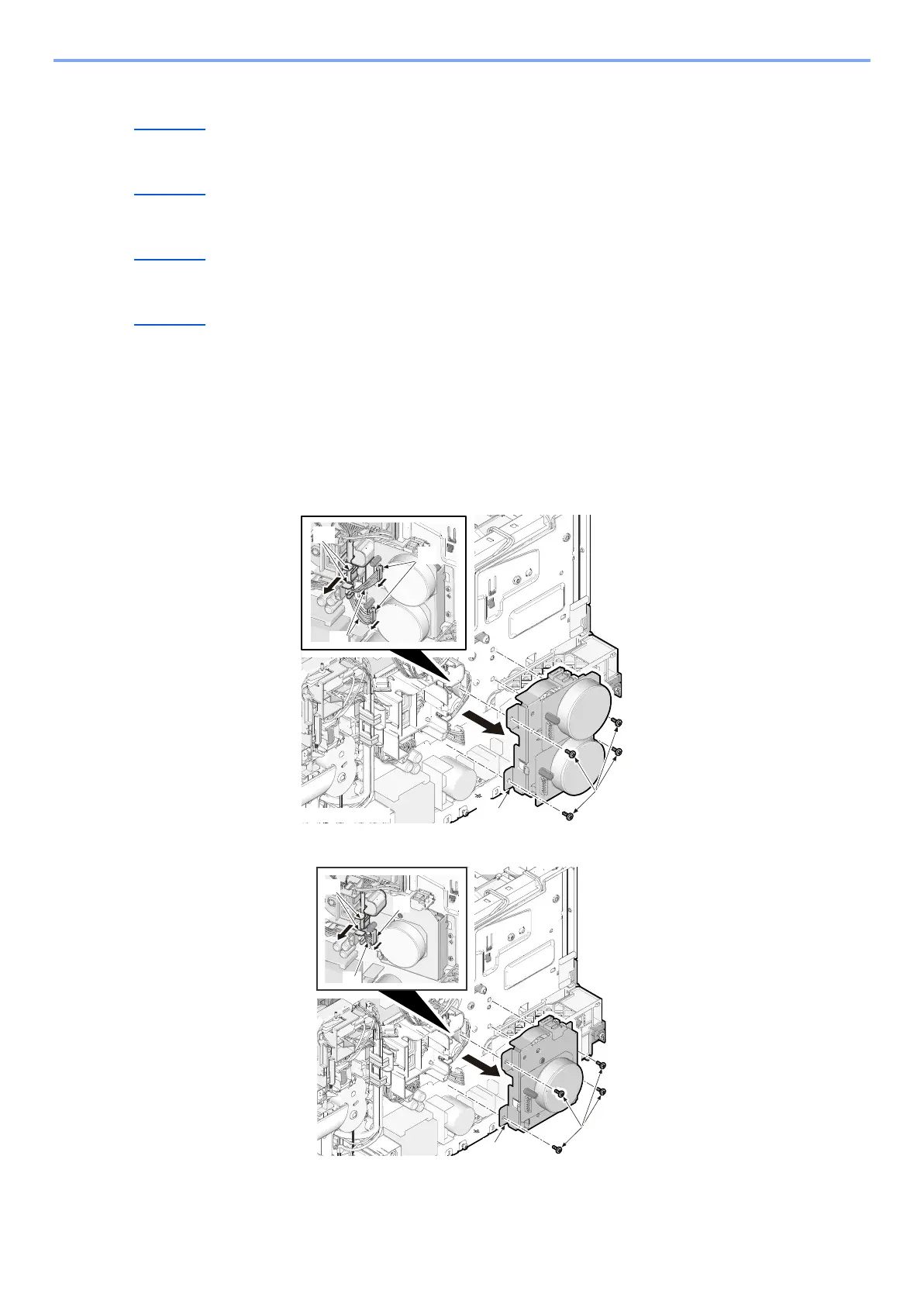

Detaching main drive unit
1 Pull the connector (a) out from the motor and then release the wires (b) from wire holder (c).
2 Remove four screws (d) and then detach the main drive unit (e). (M3x8)v
3 Check or replace the main drive unit and refit all the removed parts.
[60/55/50ppm]
45 ppm
e
e
