3-40
Machine Design ＞ Mechanical construction (option)
[CONFIDENTIAL]

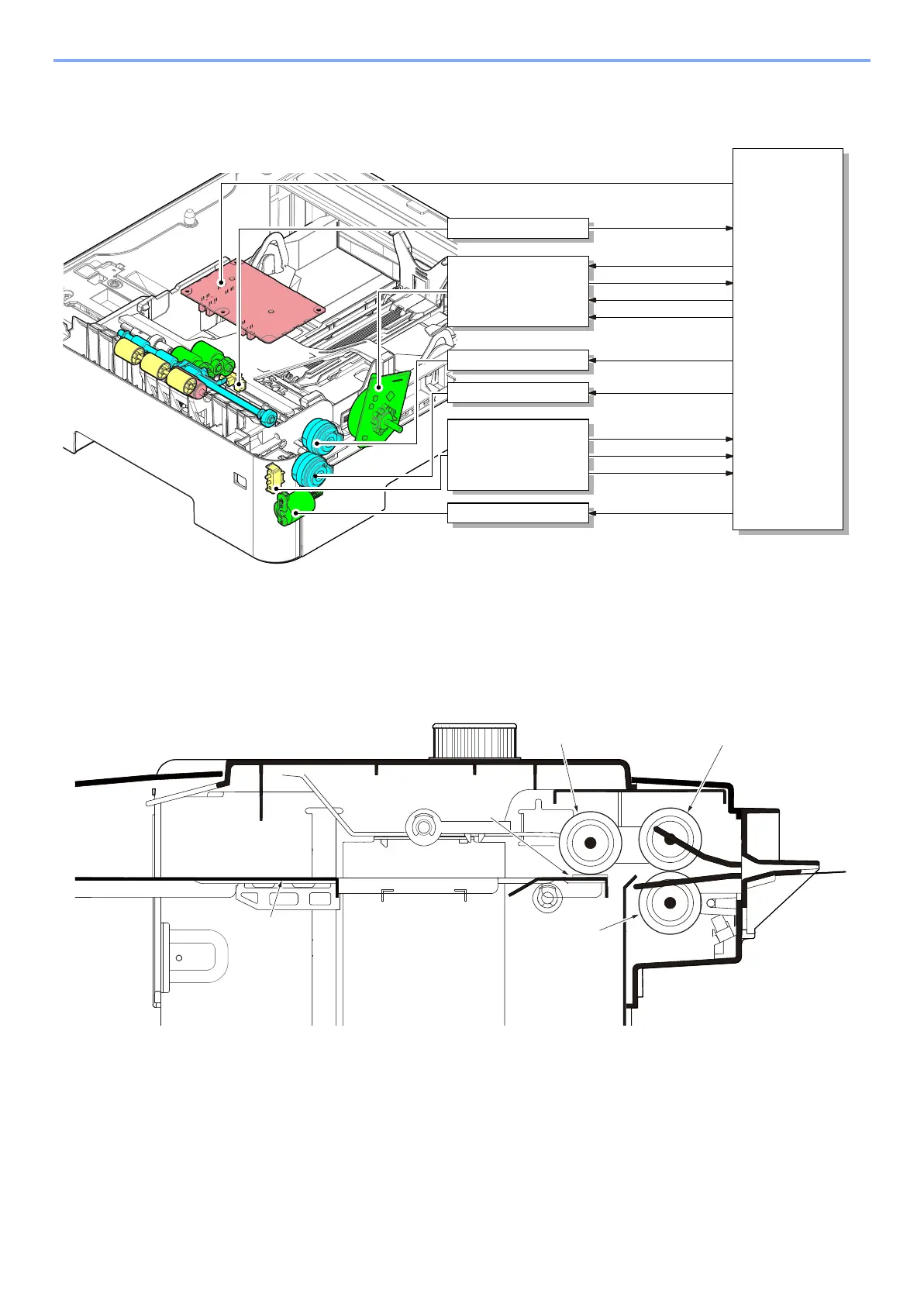

Block diagram
(2) Bulk Paper Feeder (PF-3100)
The cassette can load 2,000 sheets paper (80 g/m2). Feeding from cassette works as picking up paper by rotating the
PF pickup roller and conveys it to main unit by rotating the PF paper feed roller. Multi-feeding is also prevented by the
effect of the PF retard roller.
YC6-1
YC6-2
YC6-3
YC6-4
YC8-4
YC2-1
YC2-2
YC2-4
YC7-2
YC1-3
YC8-2
TMDRVN
TMCLK
TMLOCK
TMDIR
OUT
LMOTOR
FEEDCLN
TRANSCLN
PF PWB
PF feed motor
PF cassette size switch
PF conveying sensor
PF feed clutch
PF conveying clutch
PF lift motor *1
PAPSIZ0
PAPSIZ1
PAPSIZ2
To Next Page
