Utax P-4532DN - (1-2) Detaching and refitting the retard roller

4-44
Maintenance ＞ Assembly and disassembly (Optional items)
(1-2)Detaching and refitting the retard roller
1

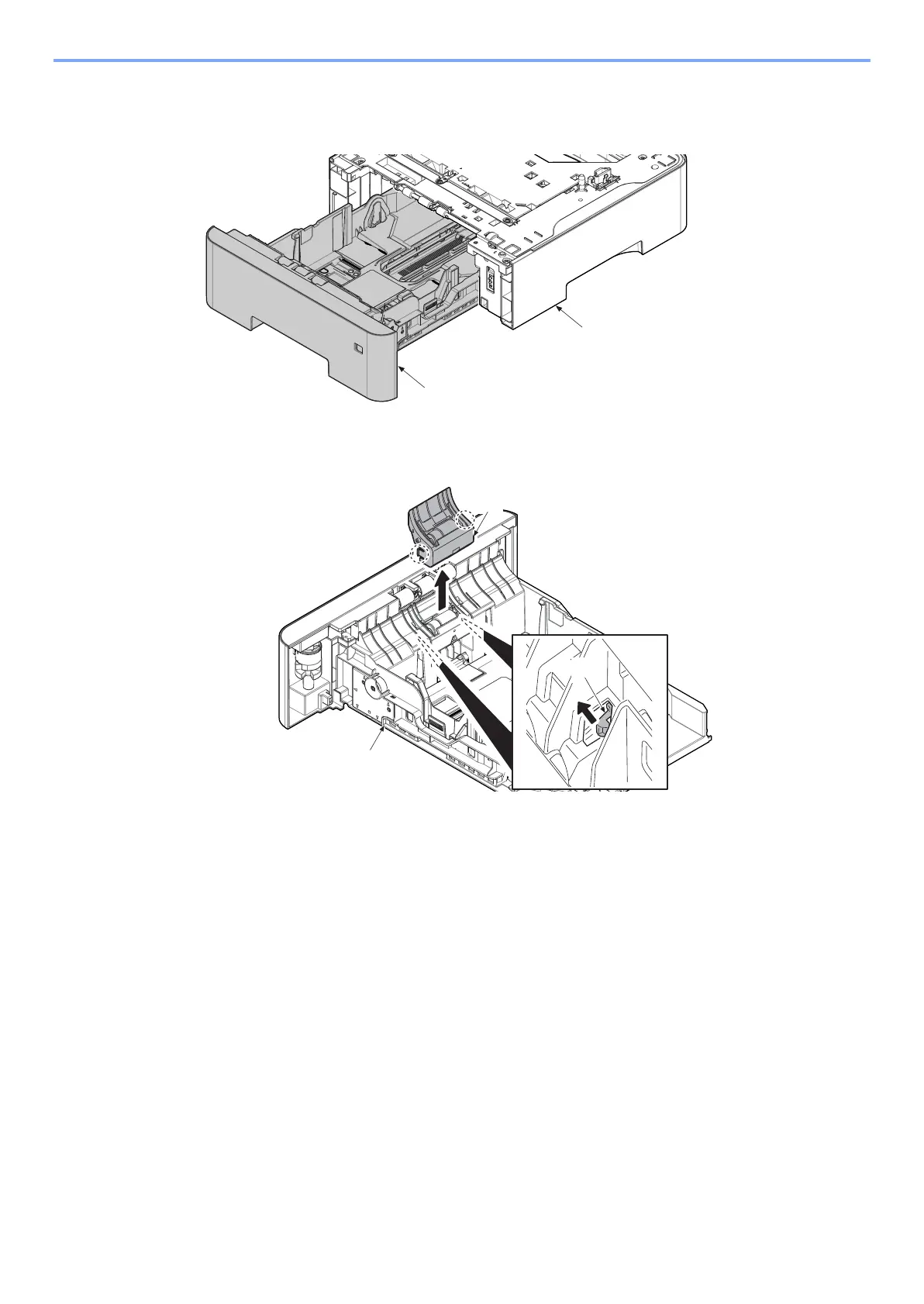

Remove cassette (a) from paper feeder (b).
2
Release two hooks (b) in backside of cassette (a) and then detach the retard roller
assembly (c).
3
Remove the retard roller.
1 Remove spring (a).
2 Remove the retard roller holder (b) by rotating it.
3 Check or replace the retard roller and refit all the removed parts.
