Utax P-4532DN - (2-3) Power source PWB; (2-4) High voltage PWB

3-6
Machine Design ＞ Electric parts
[CONFIDENTIAL]

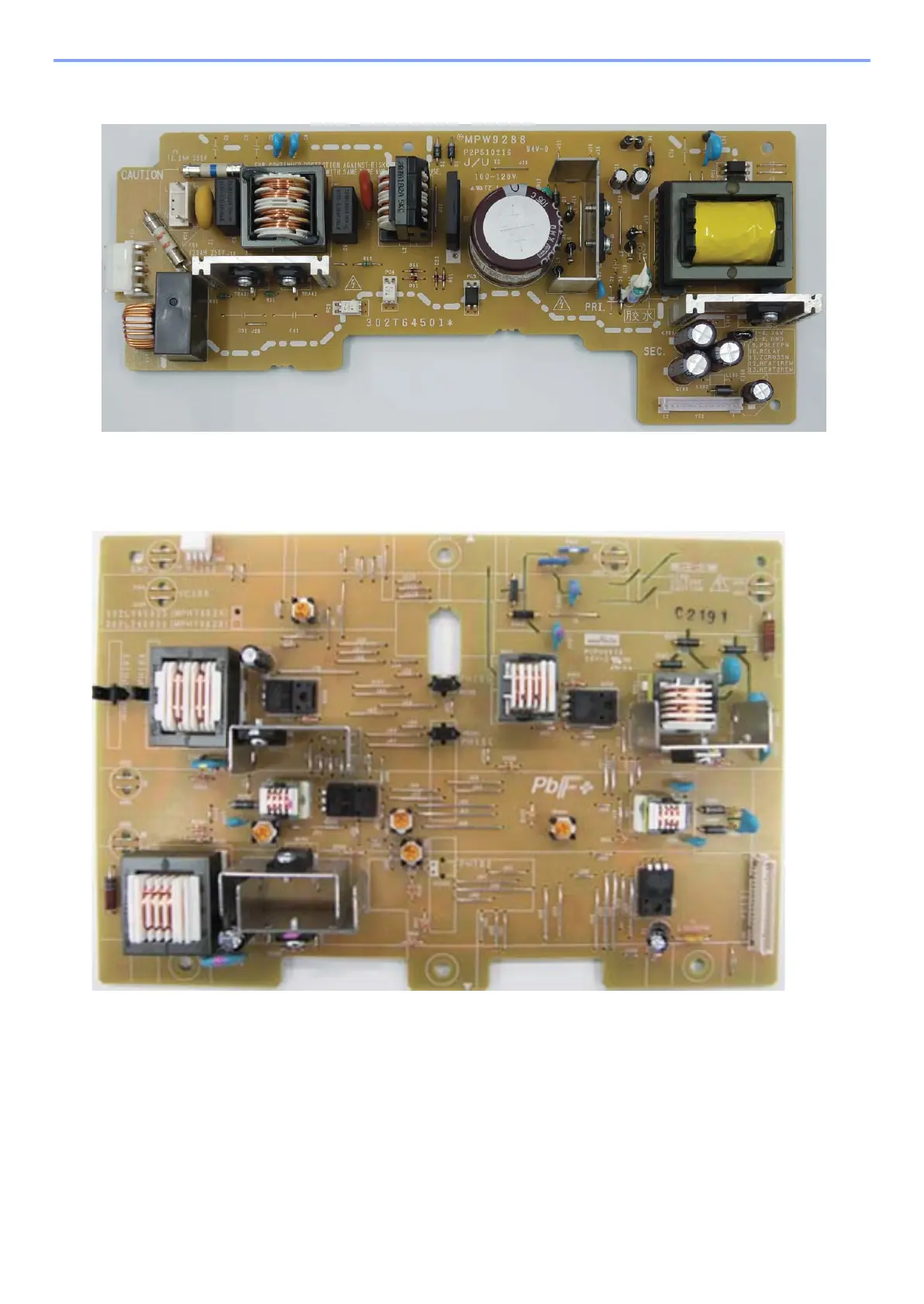

(2-3)Power source PWB
After full-wave rectification of AC power source input, switching for converting to 24 V DC for output. Controls the fuser
heater.
(2-4)High voltage PWB
Generates main charging, developing bias, transfer bias.
