2 - 1 Environment
Installation environment
Installation location
The operative environmental conditions are as follows:
Adverse environmental conditions may affect the image quality. It is recommended to use the machine as follows:
Humidity: 36 to 65% Temperature: 60.8 to 80.6°F or less (16 to 27°C).
Avoid the following locations when selecting a site for the machine.
• Avoid locations near a window or with exposure to direct sunlight
• Avoid locations with vibrations
• Avoid locations with rapid temperature fluctuations
• Avoid locations with direct exposure to hot or cold air
• Avoid poorly ventilated locations
If the floor is delicate, when this machine is moved after installation, the floor material may be damaged by the casters.
During operation, some ozone is released, but the amount does not cause any ill effect to one's health.
If, however, the machine is used over a long period of time in a poorly ventilated room or when making an extremely
large number of copies, the smell may become unpleasant. To maintain the appropriate environment for copy work, it is
suggested that the room be properly ventilated.

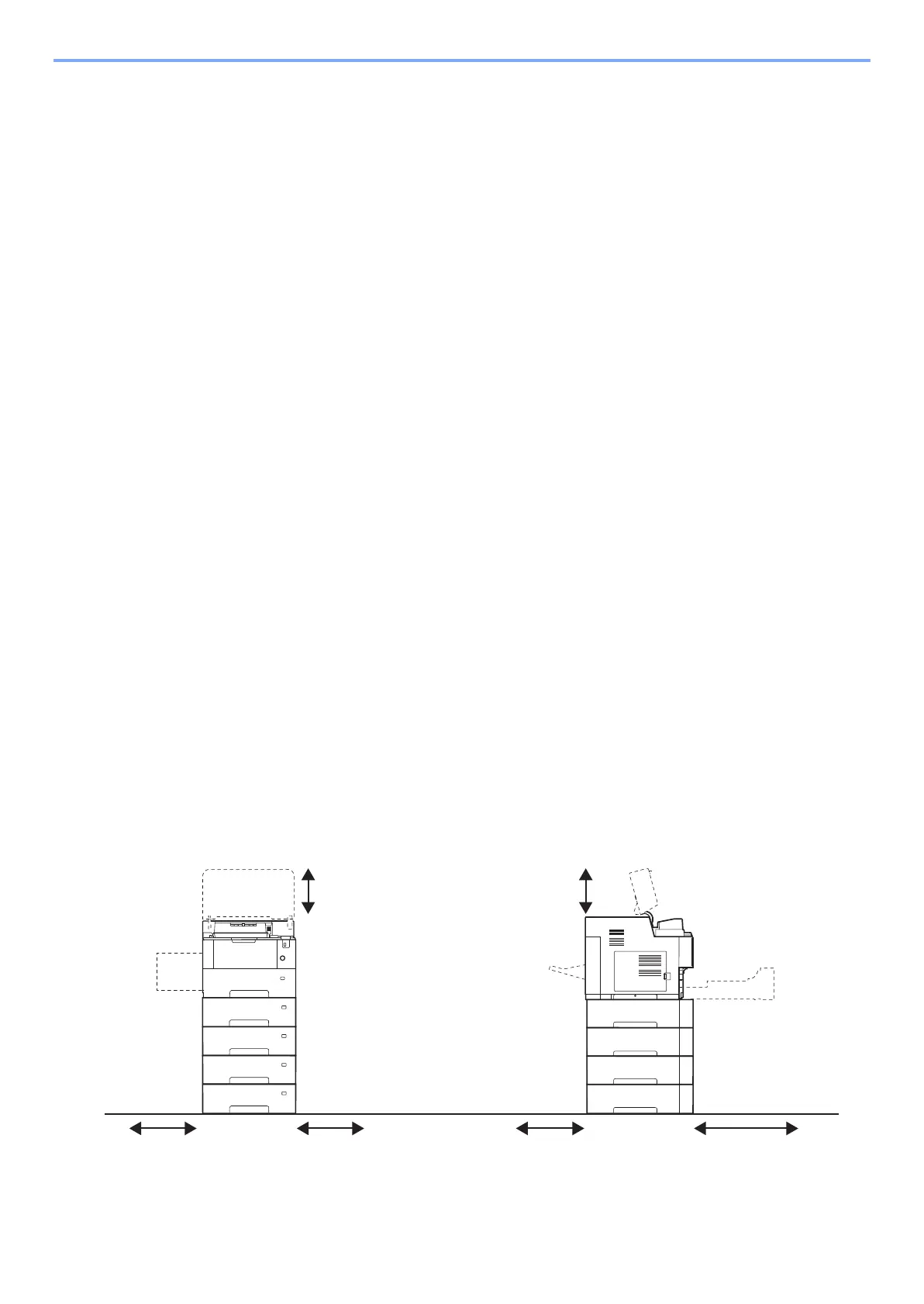

Installation space
*1: The value when an optional rear tray (PT-320) is installed. (60/55/50 ppm model only)
1. Temperature: 50 to 90.5°F (10 to 32.5°C) (But humidity should be 70% or less when the temperature is
90.5°F (32.5°C).)
2. Humidity: 10 to 80% (But the temperature should be 86°F (30°C) or less when humidity is 80%.)
3. Power
requirements:
45 ppm 50/55 ppm 60 ppm
100V AC 50/60Hz 11.4 A or more - 11.9 A or more
120V AC 60Hz 9.5 A or more 10 A or more -
220 to 240V AC 50Hz 5.4 A or more 5.6 A or more -
4. Frequency fluctuation: 50Hz+/-2% or 60Hz+/-2%
100 mm
(3-15/16")
300 mm
(11-13/16")
400 mm
(15-3/4")
400 mm
(15-3/4")
500 mm (19-11/16") 200 mm (7-7/8")
500 mm (19-11/16") *1
200 mm (7-7/8")
500 mm (19-11/16") *1
To Next Page
