Utax P-4532DN - (1-3) Detaching and refitting the drive unit and PF PWB.

4-45
Maintenance ＞ Assembly and disassembly (Optional items)
(1-3)Detaching and refitting the drive unit and PF PWB.
1

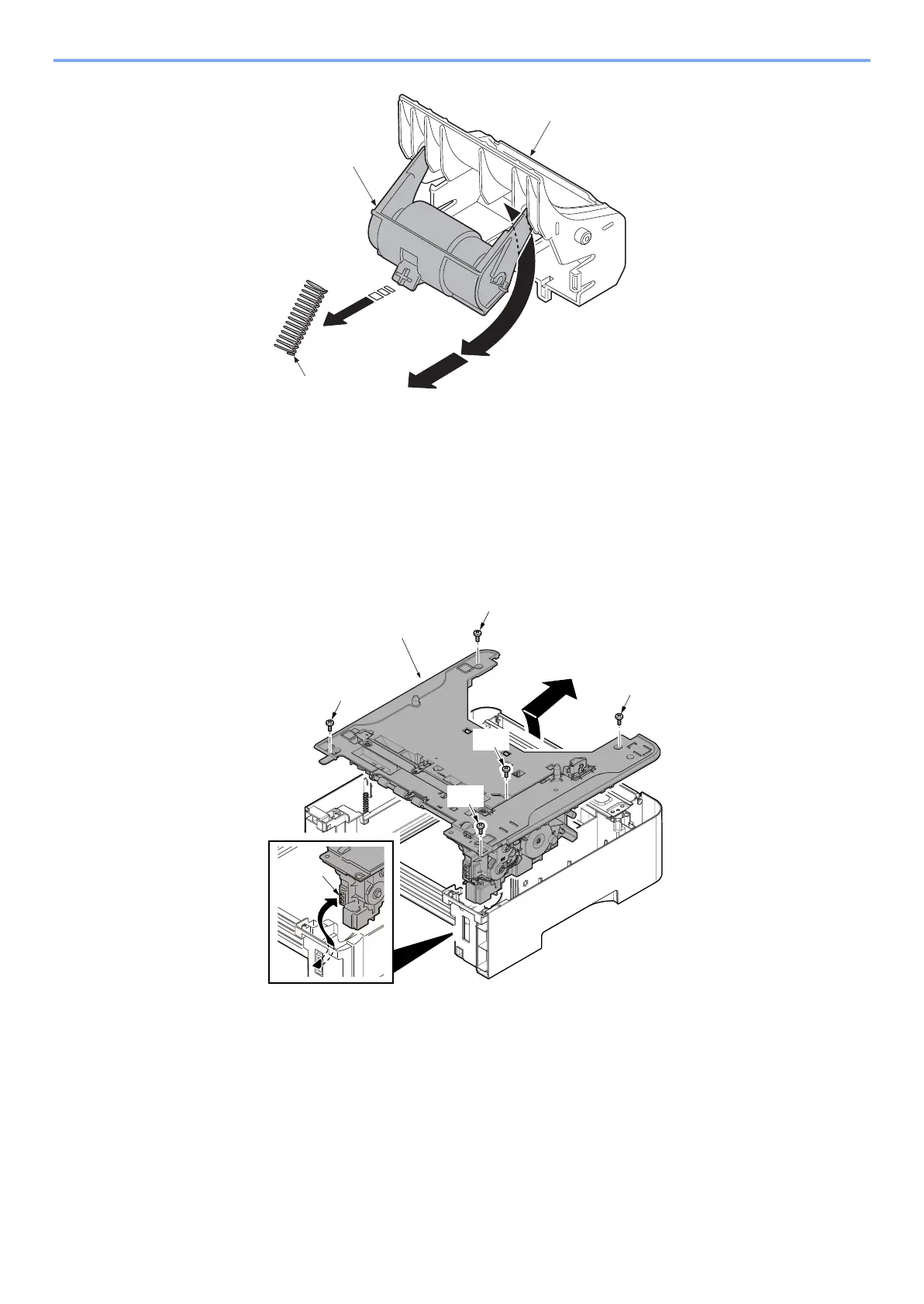

Detach the top cover.
1 Remove 5 screws (a). (M3x8)
2 Lift up rear edge if the top cover (b).
3 Pull out cassette size switch (c) and remove top cover (b).
2
Detach the PWB cover.
1 Release 2 hooks (b) with flat head screw driver (a).
2 Lift up tab (d) on PWB cover (c) and remove the cover.
