4-46
Maintenance ＞ Assembly and disassembly (Optional items)
3

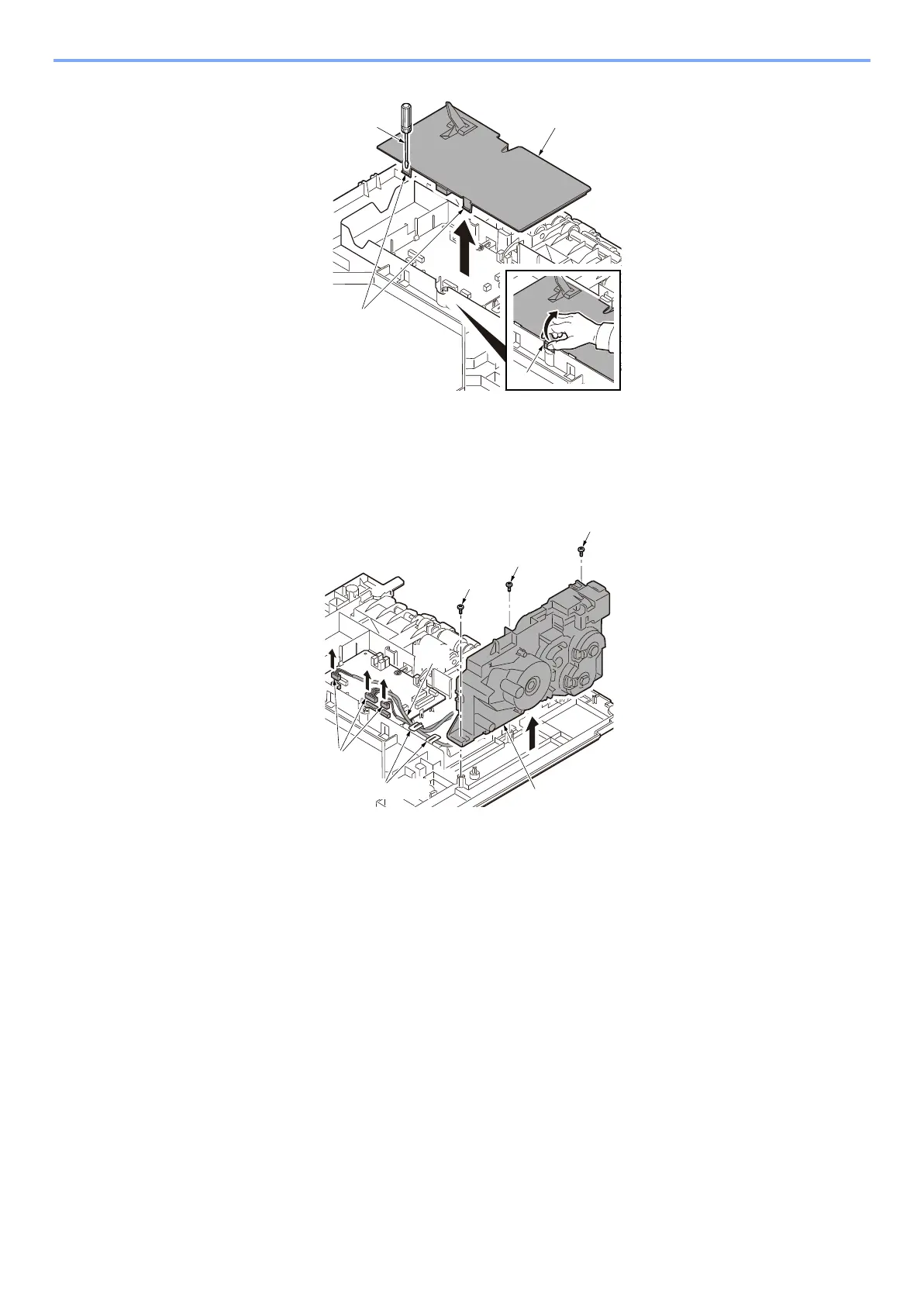

Remove the drive unit.
1 Pull the 3 connectors (a) out and release the wires (b) from wire holder (c).
2 Remove three screws (d) and detach the drive unit (e). (M3x8)
4
Detach the PF PWB cover.
1 Raise the feed roller assembly (a) up.
2 Pull the all connector from PF PWB out.
3 Remove the screw (c).
4 Release two hooks (d) and detach the PF PWB (b).
a
b
c
d
a
b
c
d
d
d
e
