4-10
Maintenance ＞ Maintenance Parts replacement procedure

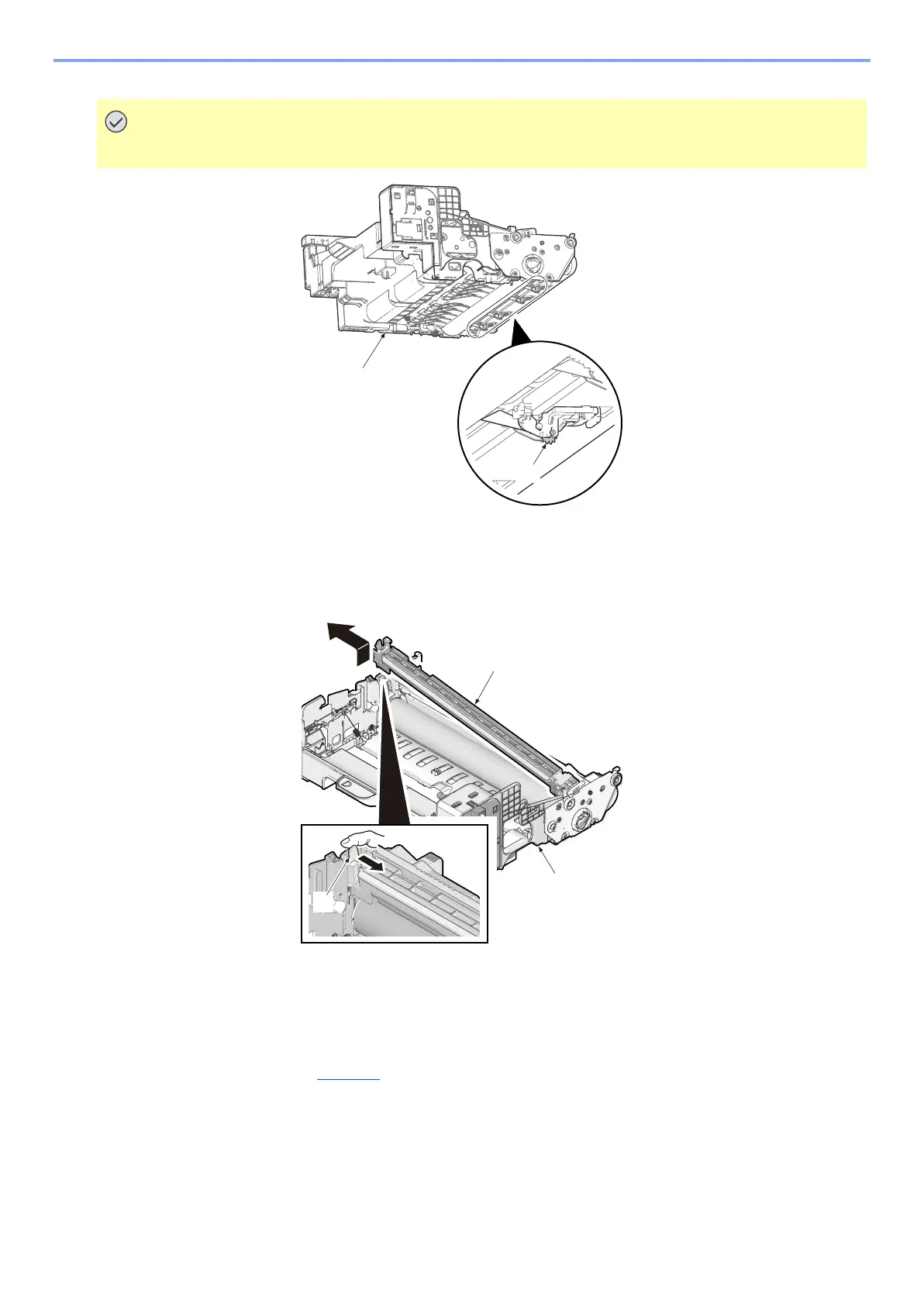

(4-2)Detaching and refitting the main charger roller unit
1 Release the lock lever (a) and then detach the main charger roller unit (b) from the drum unit (c).
2 Check or replace the main charger roller unit (b) and refit all the removed parts.
(5) Transfer/separation section
(5-1)Detaching and refitting the transfer roller assembly
1
Detach the paper chute guide
1 Remove the drum unit. (See Page 4-9)
2 Bring the paper chute guide to the left and release 4 hooks (b).
3 Detach the paper chute guide (a) upward.
Important
When placing the drum unit on the table, do not deform the star-wheels (b).
b
a
b
a
c
