Utax P-4532DN - (4-5) Detach the high-voltage PWB.

4-34
Maintenance ＞ Assembly and disassembly
(4-5)Detach the high-voltage PWB.
1
Detach the cassette.
2
Remove the right cover.
(See Page 4-15)
3
Detach the left cover.
(See Page 4-18)
4
Detach the power supply fan motor.
(See Page 4-40)
5
Detach the power supply PWB.
(See Page 4-32)
6

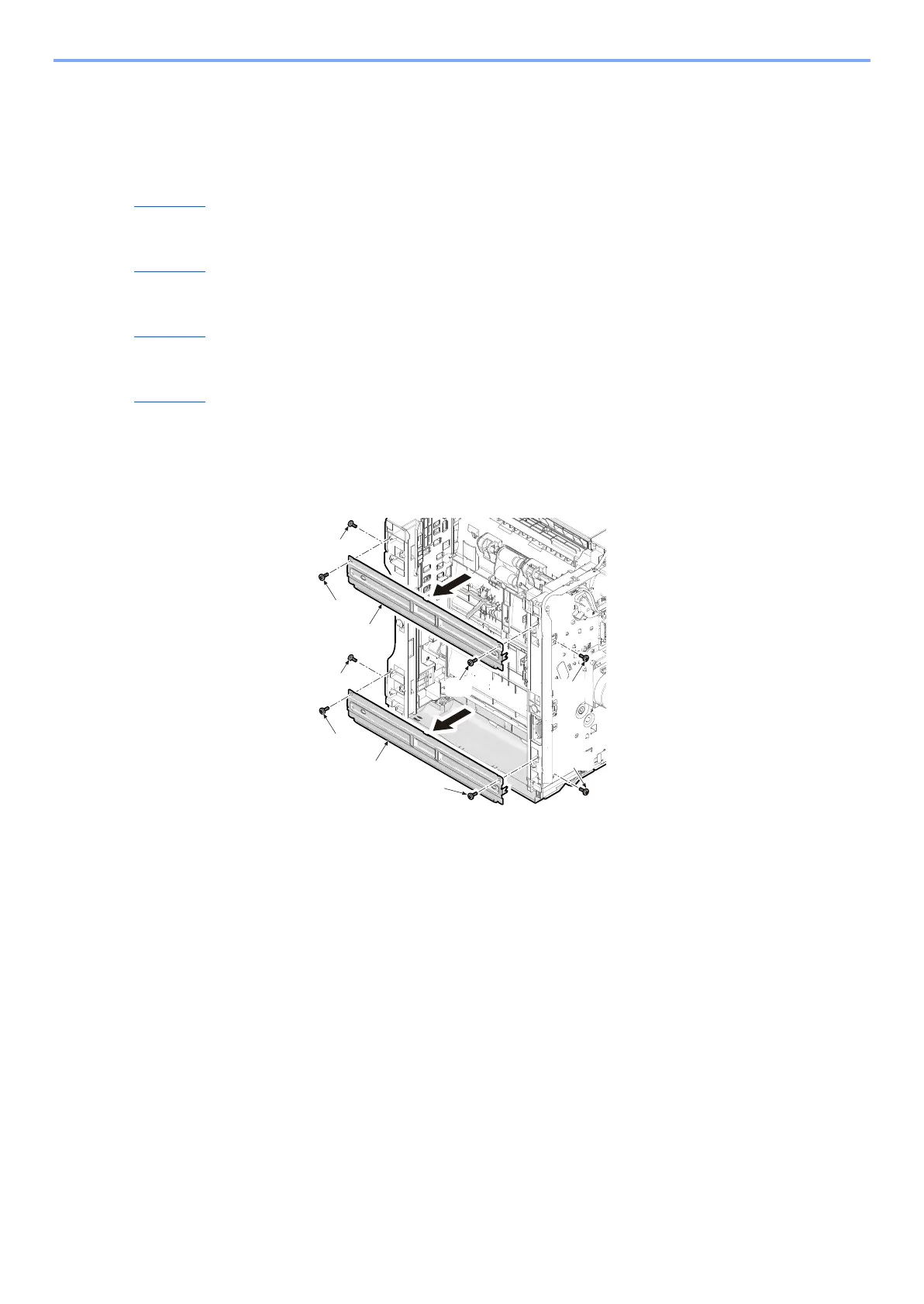

Place the main unit front side up.
7
Remove four screws (a) each and remove the bottom plate 1 (b) and the bottom plate 2
(c).
8
[60/55/50ppm only]
Release two hooks (a) and detach the wire cover (b).
Pull the lift sensor (c) connector (d) out.
c
b
a
a
a
a
a
a
a
a
