4-35
Maintenance ＞ Assembly and disassembly
9

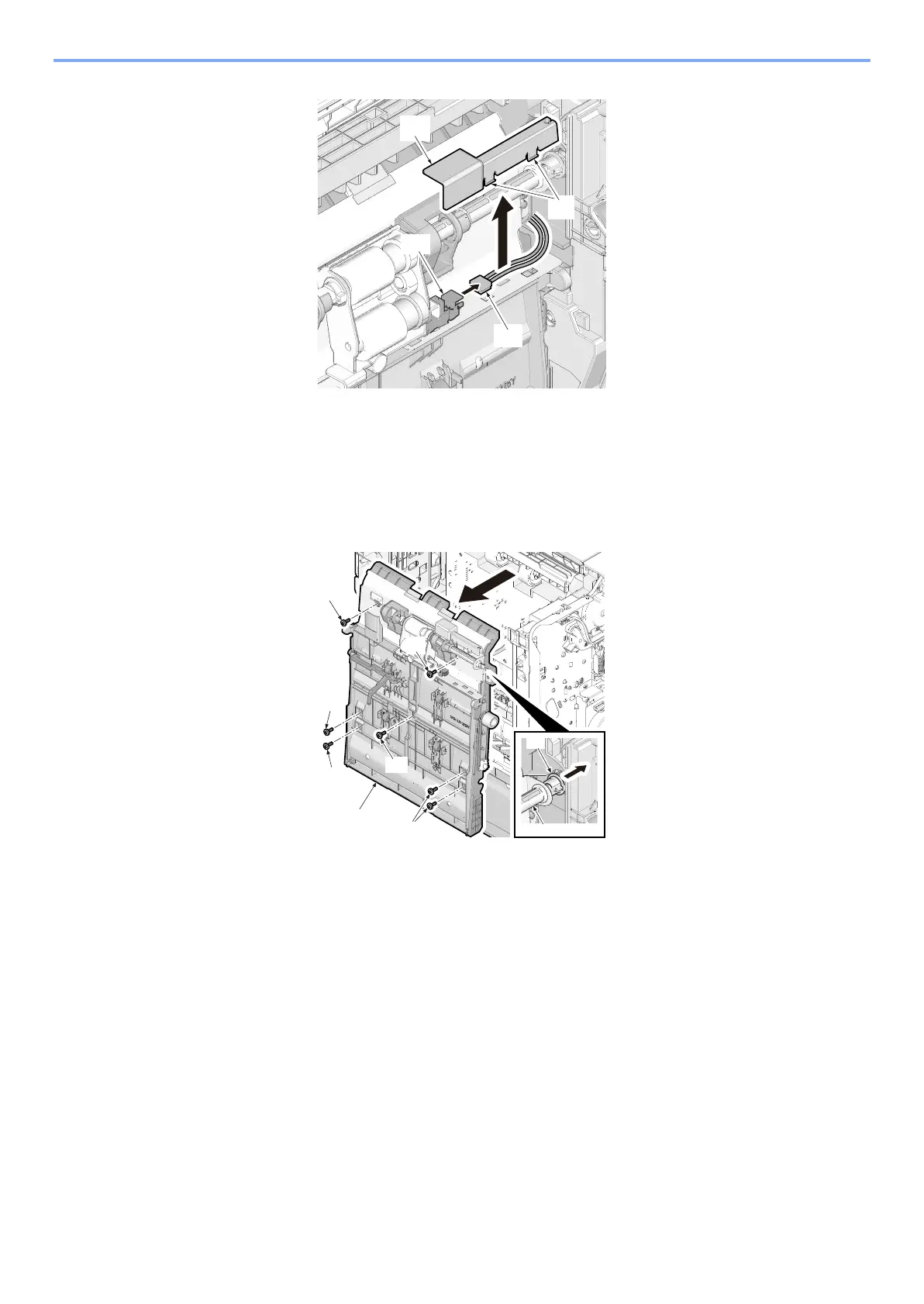

Detach the duplex unit.
1 Remove 7 screws (a). (M3x8)
2 Push the joint section (b) and pull out the feed roller (c).
3 Detach the duplex unit frontward.
10
Detach the high voltage PWB.
1 Remove 1 screw (a). (M3x8)
2 Pull two connectors (b) out and then detach the high voltage PWB (c).
3 Check or replace the high-voltage PWB and refit all the removed parts.
c
b
a
d
c
b
a
d
a
a
a
a
a
