Machine Design ＞ Mechanical construction
[CONFIDENTIAL]
3 - 6 Mechanical construction
(1) Paper feed section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP tray paper
feed unit that feeds paper from the MP tray.

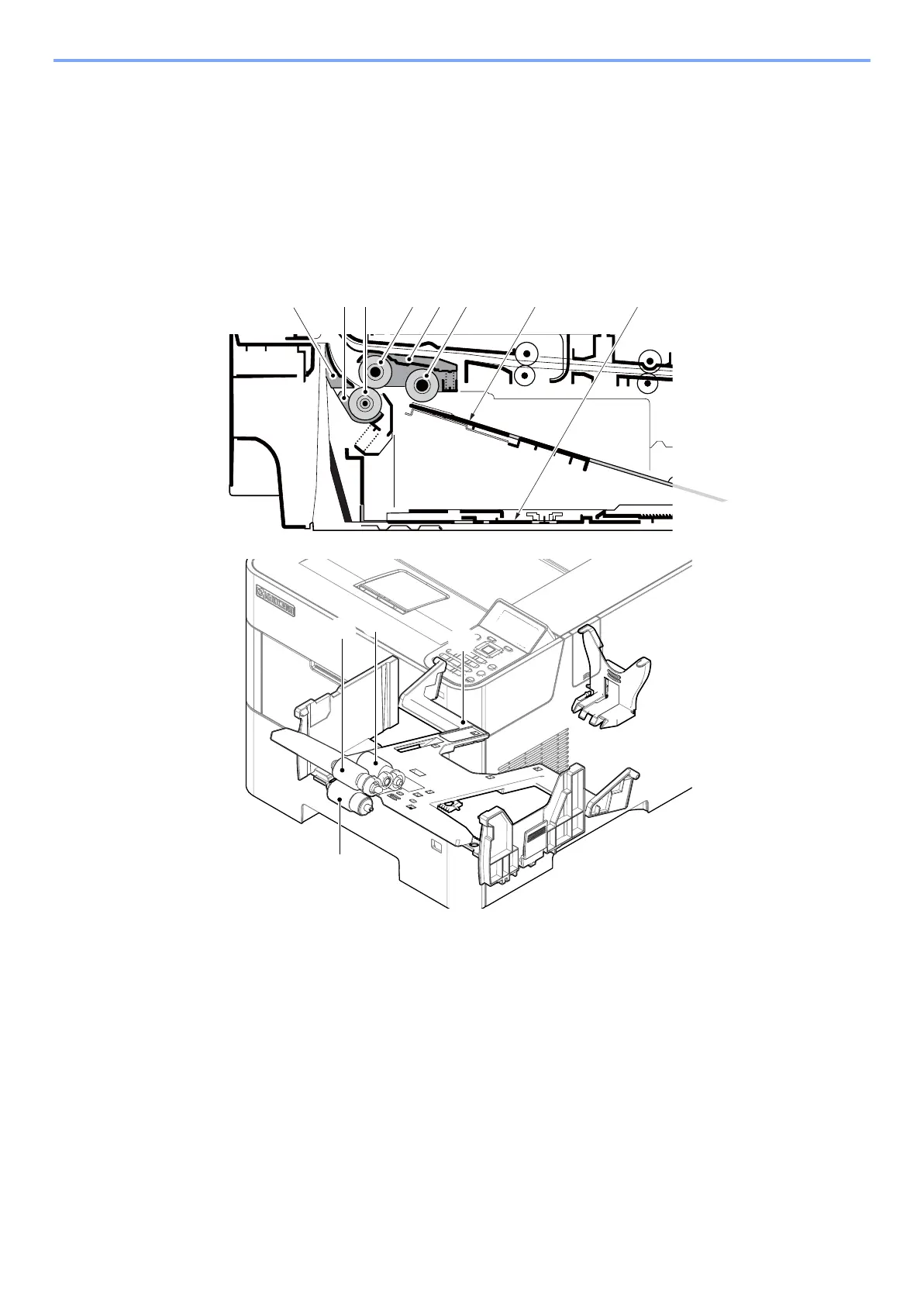

(1-1)Cassette paper feed section
The cassette can contain 500 sheets (80 g/m2). The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents multiple
feeding of paper.
1 Paper feed roller
2 Pickup roller
3 Feed holder
4 Retard roller
5 Retard holder
6 Retard guide
7 Bottom plate
8 Cassette base
7 8
4
5
1
23
6
1
2
7
4
